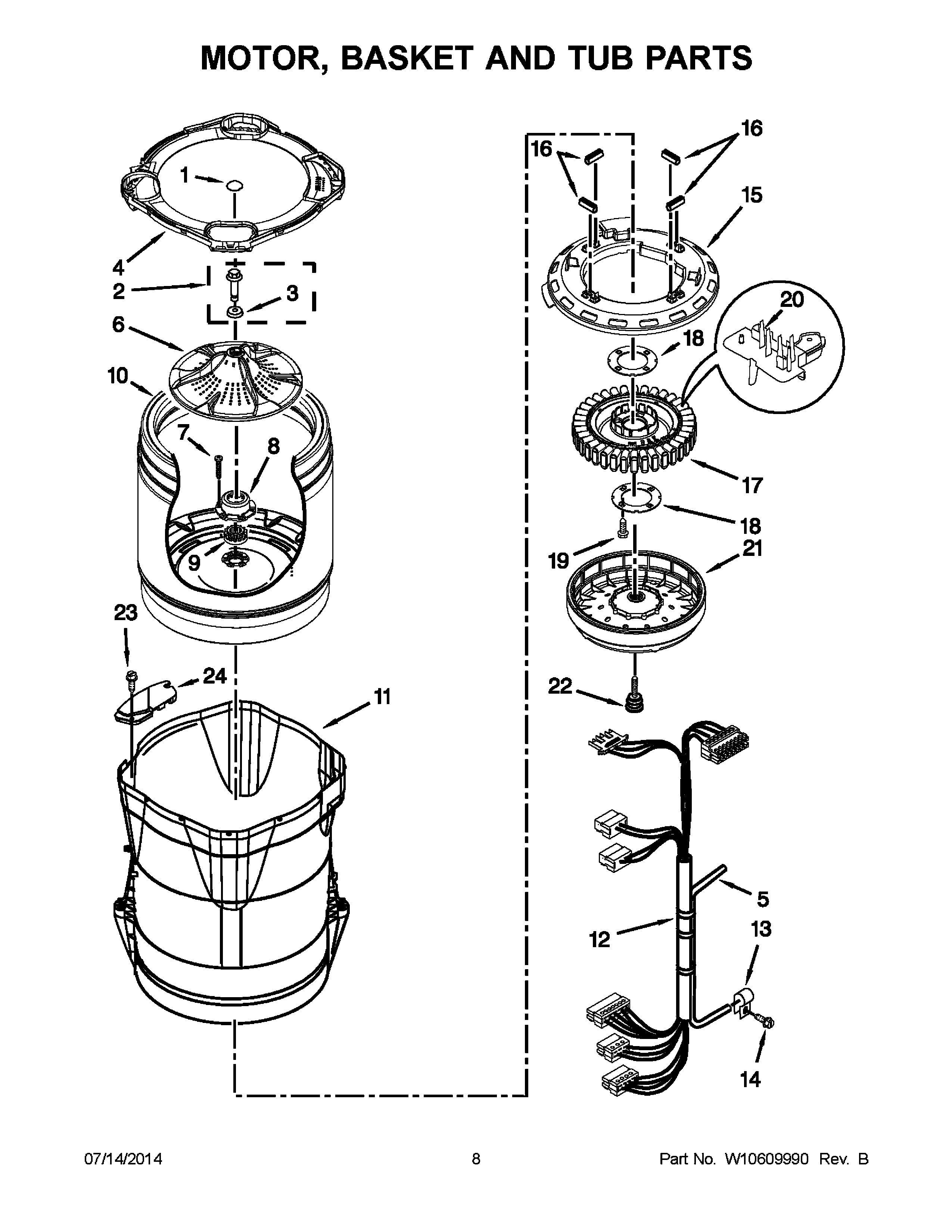

MVWB725BW0 05 – MOTOR, BASKET AND TUB PARTS

MVWB725BW0 05 – MOTOR, BASKET AND TUB PARTS

Written by

in

MVWB725BW0 05 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY W10305251
2MAY W10076270
3MAY W10076260
4MAY W10591323
5MAY 8572540
6MAY W10286241
7SCREW
8HUB, BASKET-DRIVEN
9HUB, BASKET DRIVER
10MAY W10518300
11MAY W10381078
12MAY W10504822
13CLAMP, CABLE
14SCREW
15SHIELD, DRIVE MOTOR
16MAY 8565172
17MAY W10419333
18PLATE, STATOR
19SCREW
20MAY W10178988
21ROTOR, MAIN DRIVE MOTOR
22LINER (NOT A SERVICEABLE PART)
23Screw
24MAY W10222008
