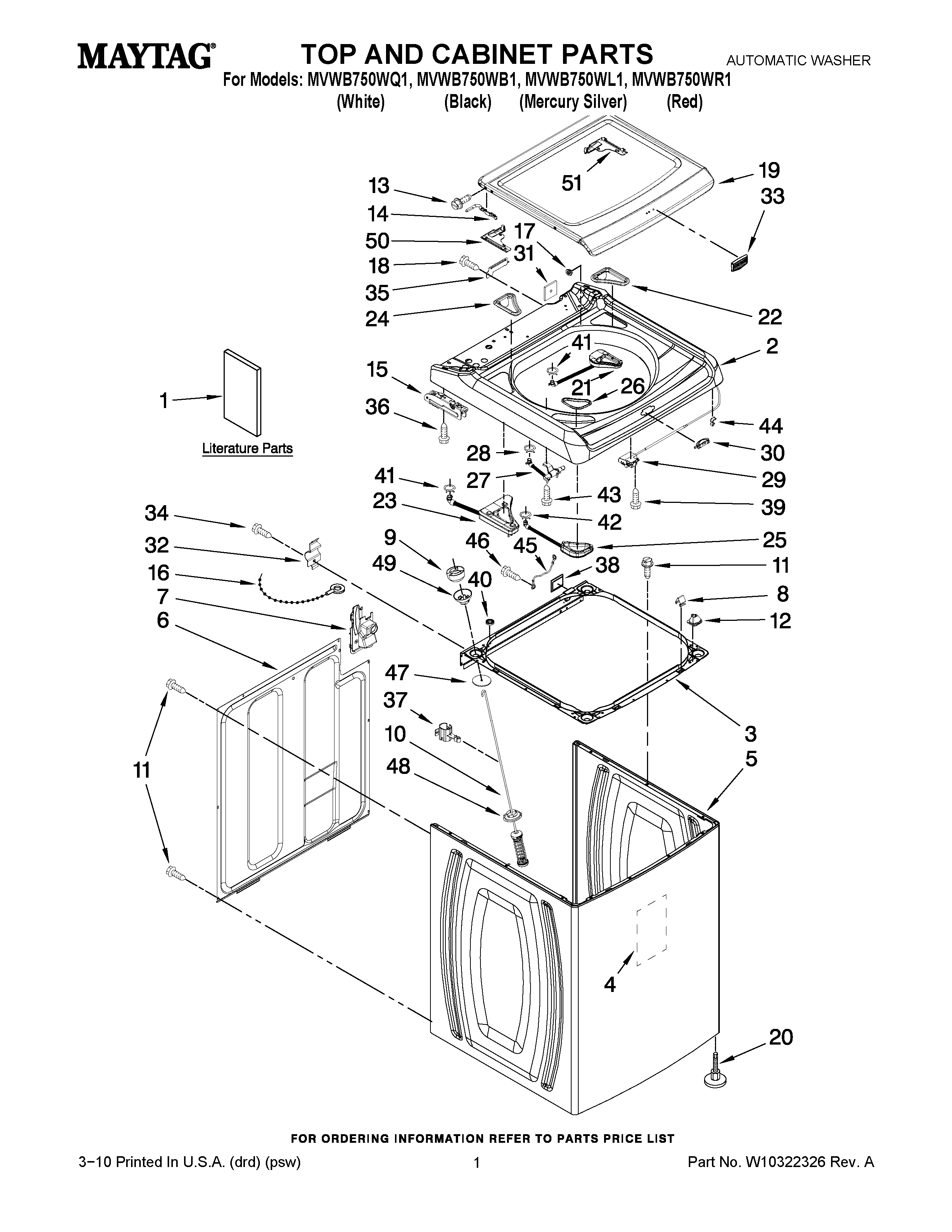

MVWB750WB1 01 – TOP AND CABINET PARTS

MVWB750WB1 01 – TOP AND CABINET PARTS

Written by

in

MVWB750WB1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	IMPROVED WASH PERFORMANCE SHEET (ENGLISH/FRENCH)
1	MAY W10240439
1	INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1	MAY W10092825
1	MAY W10092824
1	MAY W10315093
1	IMPROVED WASH PERFORMANCE SHEET (SPANISH)
1	MAY W10313093
2	MAY W10093833
2	MAY W10141678
2	MAY W10093820
2	MAY W10093827
3	FRAME ASSEMBLY, CABINET TOP (INCLUDES ITEM 38)
4	Cabinet-Damper, Sound (3)
5	CABINET (MERCURY SILVER)
5	CABINET (WHITE)
5	MAY W10045598
5	MAY W10093799
6	MAY 8566090
7	MAY W10160572
8	LOCK, TOP-FRONT
9	BALL, SUSPENSION (SET OF 4 – (INCLUDES ITEM 49))
10	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES ITEMS 9, 47, 48 & 49)
11	MAY 1157158
12	MAY W10042120
13	SCREW, LID HINGE
14	MAY 8563964
15	MAY W10141681
15	MAY W10141682
16	CABLE TIE
17	MAY W10119519
18	SCREW
19	LID, GLASS ASSEMBLY (MERCURY SILVER)
19	MAY W10093818
19	MAY W10093823
19	Lid, Glass Assembly (White)
20	MAY W10240448
21	MAY W10172146
22	Bezel, Fabric Softener Dispenser (White)
22	BEZEL, FABRIC SOFTENER DISPENSER (GRAY)
23	MAY W10187307
24	BEZEL, BLEACH DISPENSER (JADE GRAY)
24	Bezel, Bleach Dispenser (White)
25	MAY W10172154
26	BEZEL, DETERGENT DISPENSER (GRAY)
26	Bezel, Detergent Dispenser (White)
27	MAY W10106990
29	MAY W10059230
30	BEZEL, LID LOCK (GRAY)
30	Bezel, Lid Lock (White)
31	TOP, FOAM SEAL
32	MAY 8564456
33	MAY W10153170
34	SCREW
35	MAY 8563941
36	Screw
37	MAY 8543784
38	MAY 8578386
39	SCREW
40	MAY 8576476
41	MAY 370451
42	MAY 371503
43	SCREW, DISPENSER HOUSING MOUNTING
44	Clip, Wire (4)
45	MAY 8281736
46	Screw, 10-32 x 5/8
47	MAY 8577896
48	MAY 8564017
49	MAY W10167599
50	Cap-Hinge, Left (White)
50	CAP-HINGE, LEFT (JADE GRAY)
51	CAP-HINGE, RIGHT (JADE GRAY)
51	Cap-Hinge, Right (
