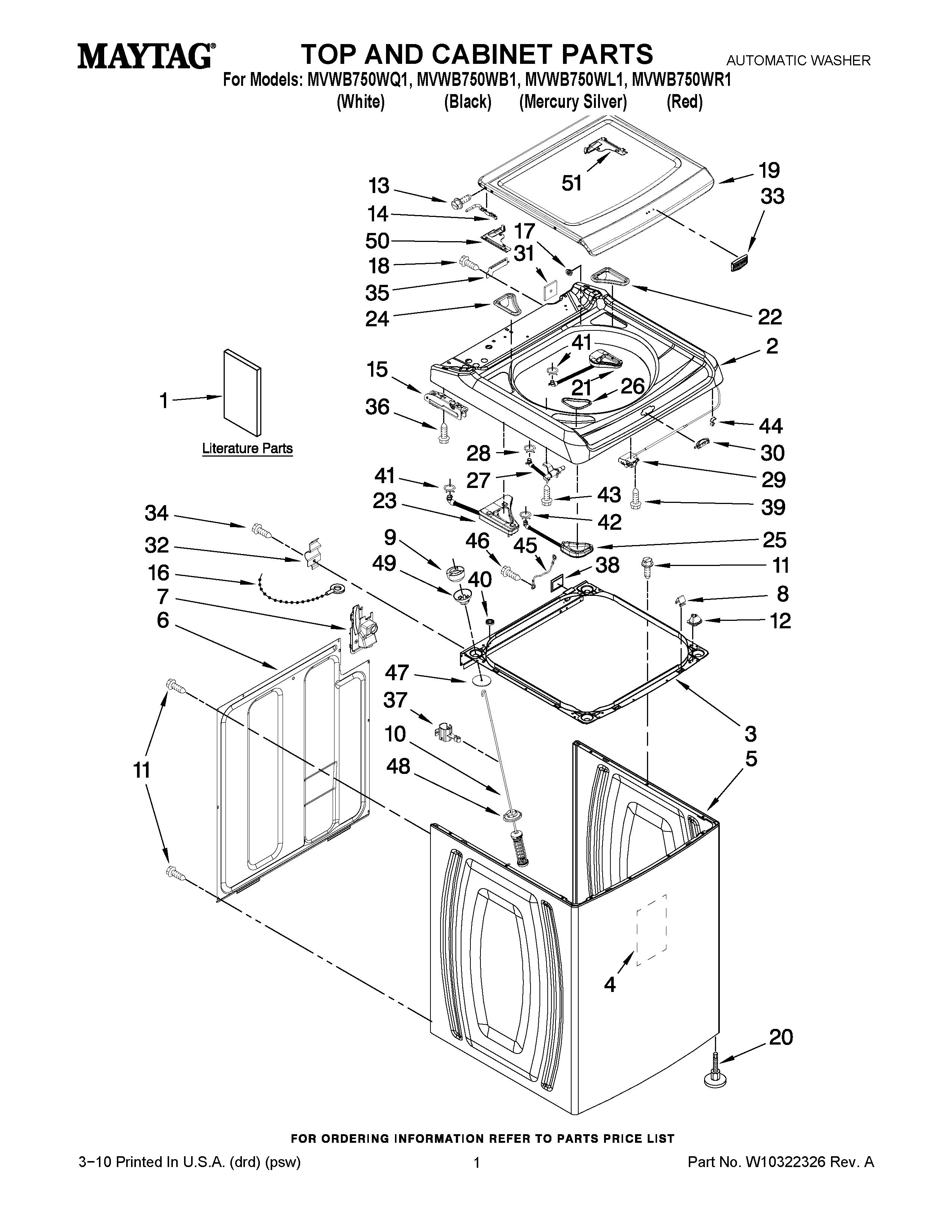

MVWB750WL1 01 – TOP AND CABINET PARTS

MVWB750WL1 01 – TOP AND CABINET PARTS

Written by

in

MVWB750WL1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1IMPROVED WASH PERFORMANCE SHEET (ENGLISH/FRENCH)
1MAY W10240439
1INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1MAY W10092825
1MAY W10092824
1MAY W10315093
1IMPROVED WASH PERFORMANCE SHEET (SPANISH)
1MAY W10313093
2MAY W10093833
2MAY W10141678
2MAY W10093820
2MAY W10093827
3FRAME ASSEMBLY, CABINET TOP (INCLUDES ITEM 38)
4Cabinet-Damper, Sound (3)
5CABINET (MERCURY SILVER)
5CABINET (WHITE)
5MAY W10045598
5MAY W10093799
6MAY 8566090
7MAY W10160572
8LOCK, TOP-FRONT
9BALL, SUSPENSION (SET OF 4 – (INCLUDES ITEM 49))
10DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES ITEMS 9, 47, 48 & 49)
11MAY 1157158
12MAY W10042120
13SCREW, LID HINGE
14MAY 8563964
15MAY W10141681
15MAY W10141682
16CABLE TIE
17MAY W10119519
18SCREW
19LID, GLASS ASSEMBLY (MERCURY SILVER)
19MAY W10093818
19MAY W10093823
19Lid, Glass Assembly (White)
20MAY W10240448
21MAY W10172146
22Bezel, Fabric Softener Dispenser (White)
22BEZEL, FABRIC SOFTENER DISPENSER (GRAY)
23MAY W10187307
24BEZEL, BLEACH DISPENSER (JADE GRAY)
24Bezel, Bleach Dispenser (White)
25MAY W10172154
26BEZEL, DETERGENT DISPENSER (GRAY)
26Bezel, Detergent Dispenser (White)
27MAY W10106990
29MAY W10059230
30BEZEL, LID LOCK (GRAY)
30Bezel, Lid Lock (White)
31TOP, FOAM SEAL
32MAY 8564456
33MAY W10153170
34SCREW
35MAY 8563941
36Screw
37MAY 8543784
38MAY 8578386
39SCREW
40MAY 8576476
41MAY 370451
42MAY 371503
43SCREW, DISPENSER HOUSING MOUNTING
44Clip, Wire (4)
45MAY 8281736
46Screw, 10-32 x 5/8
47MAY 8577896
48MAY 8564017
49MAY W10167599
50Cap-Hinge, Left (White)
50CAP-HINGE, LEFT (JADE GRAY)
51CAP-HINGE, RIGHT (JADE GRAY)
51Cap-Hinge, Right (
