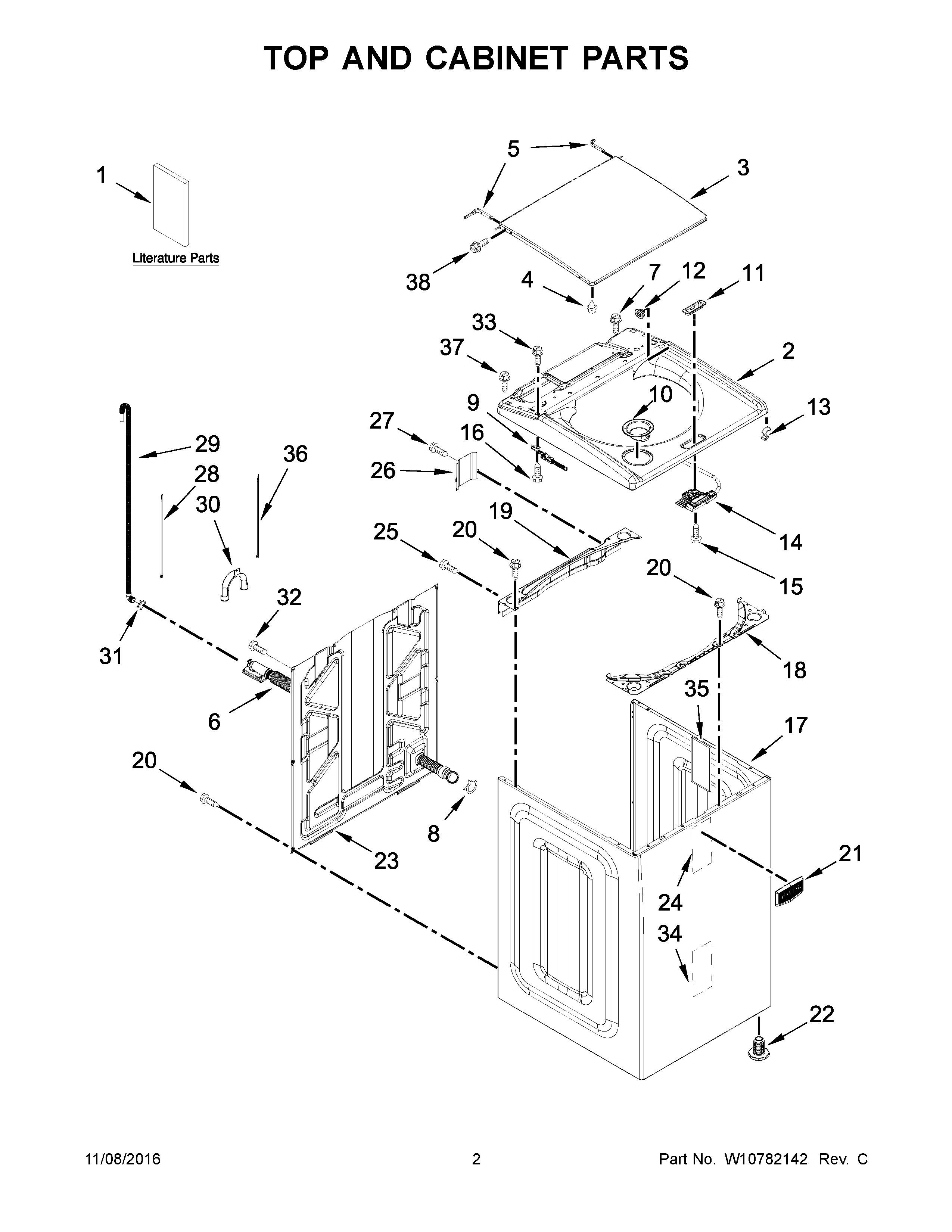

MVWB755DW0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1AMAY W10607442
1DQUICK START GUIDE
1CMAY W10838375
1EDRAIN PAN INSTRUCTIONS
1BTECH SHEET
2TOP (WHITE)
3MAY W10631106
4MAY 9724509
5MAY 8563964
6MAY W10786886
7MAY W10567155
8MAY W10142630
9AMAY W10594148
9MAY W10594147
10DISPENSER, BLEACH (WHITE)
11BEZEL, LID LOCK (WHITE)
12SPACER, LID HINGE (WHITE)
13Clip, Wire (4)
14ASSEMBLY, LID LOCK (WHITE)
15SCREW
16Screw
17CABINET (WHITE)
18BRACE, CABINET TOP – FRONT (WHITE)
19BRACE, CABINET TOP – REAR
20MAY 1157158
21BADGE
22FOOT ASSEMBLY, LEVELING
23PANEL, REAR
24MAY W10414221
25SCREW
26MAY W10676061
27Screw, 10-32 x 5/8
28TIE, CABLE
29HOSE, OUTER DRAIN ASSEMBLY
30MAY W10280024
31MAY 356138
32SCREW
33SCREW
34ABSORBER, IMPACT
35MAY 8564458
36MAY W10267532
37MAY 8563892
38SCREW, LID HINGE
