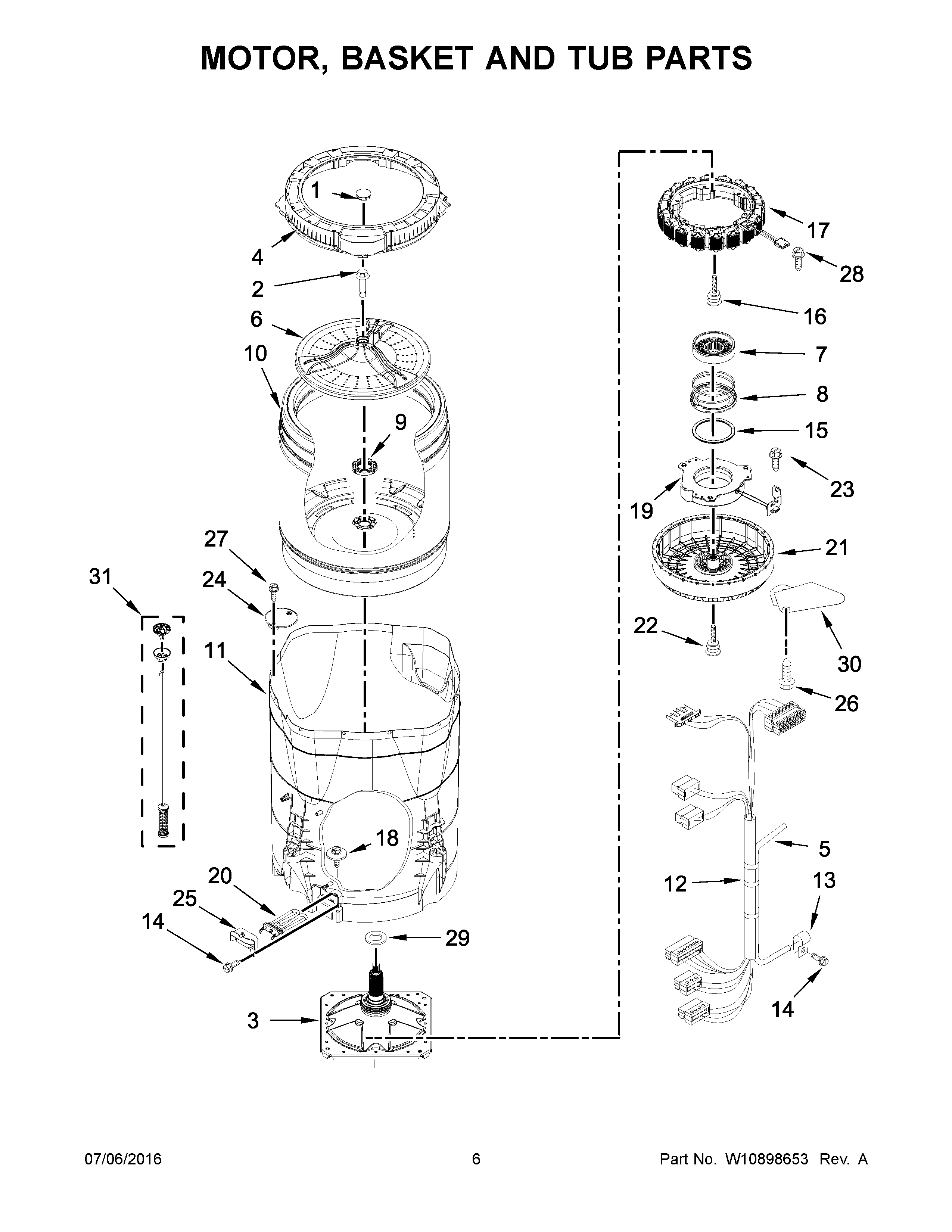

MVWB755DW1 04 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	CAP, IMPELLER
2	SCREW
3	ASSEMBLY, DRIVE
4	MAY W10578861
5	MAY W10753364
6	IMPELLER (WASHPLATE)
7	SLIDER
8	ASSEMBLY, SPRING
9	NUT, SPIN TUBE
10	MAY W10586078
11	MAY W10512162
12	MAY W10777954
13	CLAMP, CABLE
14	SCREW
15	RING, SNAP
16	SCREW
17	STATOR, MOTOR
18	SCREW
19	ASSEMBLY, CLUTCH
20	MAY W10325894
21	ROTOR, MOTOR
22	SCREW
23	SCREW
24	MAY W10215093
25	MAY W10297450
26	Screw
27	SCREW,8-18 X 3/8
28	SCREW
29	WASHER, THRUST
30	HARNESS SHIELD – MOTOR
31	MAY W10821704
