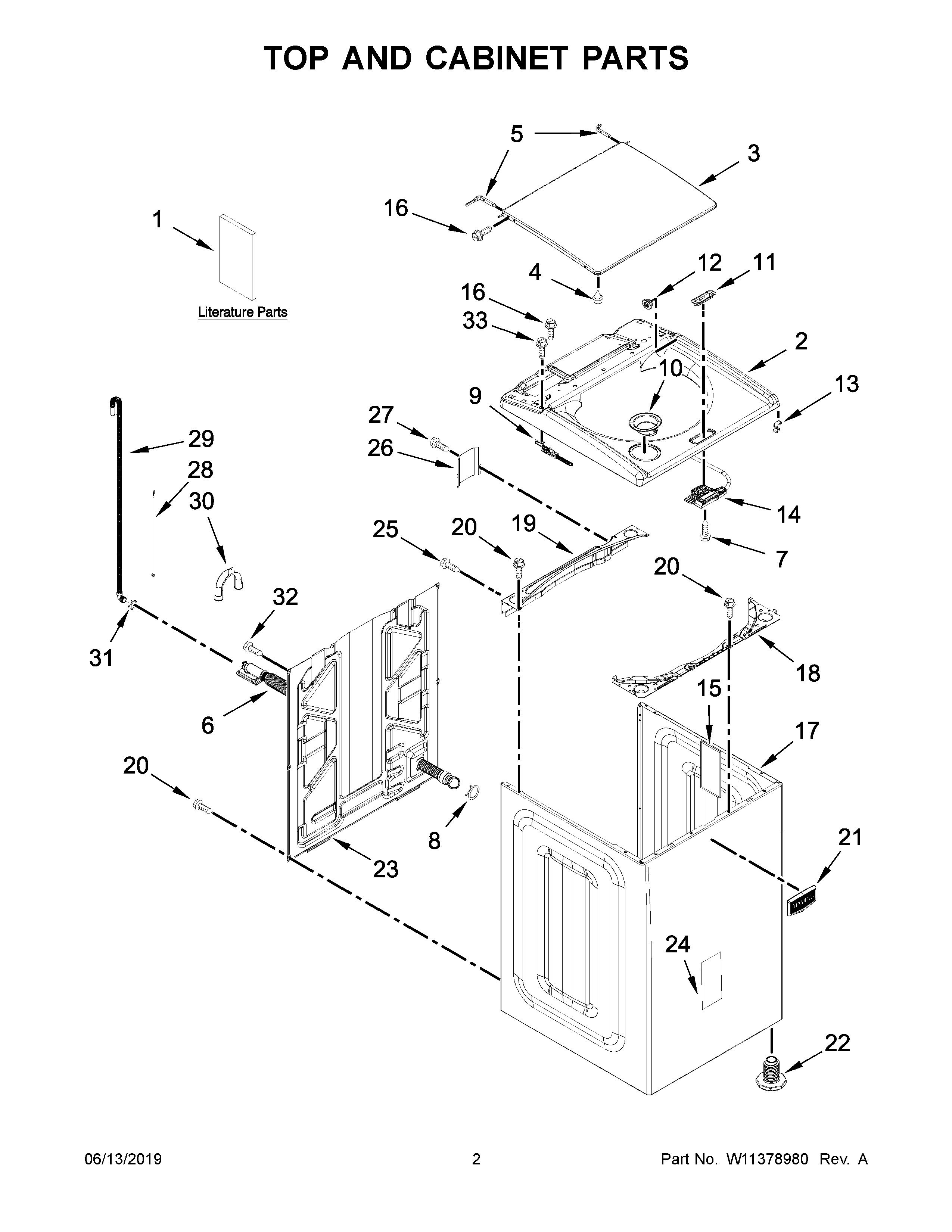

MVWB757JW0 02 – TOP AND CABINET PARTS

MVWB757JW0 02 – TOP AND CABINET PARTS

Written by

in

MVWB757JW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	TECH SHEET
1A	USE & CARE GUIDE
1D	QUICK START GUIDE
1	MAY W11128376
1C	MAY W11360539
2	TOP (WHITE)
3	MAY W10631106
4	MAY 9724509
5	MAY 8563964
6	MAY W10786886
7	SCREW
8	MAY W10142630
9	MAY W10594147
9A	MAY W10594148
10	DISPENSER, BLEACH (WHITE)
11	BEZEL, LID LOCK (WHITE)
12	SPACER, LID HINGE (WHITE)
13	Clip, Wire (4)
14	ASSEMBLY, LID LOCK (WHITE)
15	MAY 8564458
16	Screw
17	CABINET (WHITE)
18	CHANNEL, TOP FRONT (WHITE)
19	BRACE, CABINET TOP – REAR
20	SCREW
21	BADGE
22	FOOT ASSEMBLY, LEVELING
23	PANEL, REAR
24	ABSORBER, IMPACT
25	SCREW
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
32	SCREW
33	SCREW
