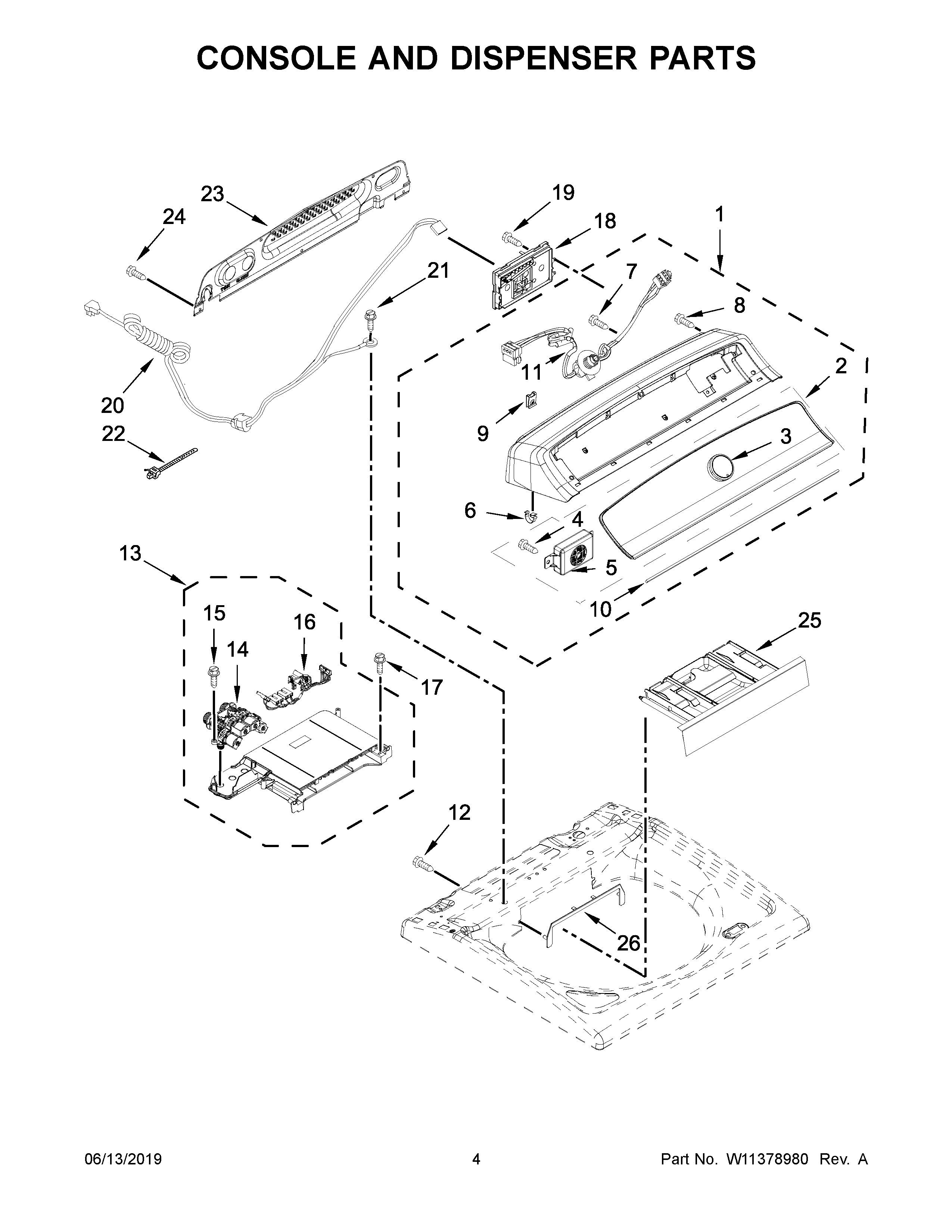

MVWB757JW0 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1CONSOLE (WHITE)
2FASCIA
3ASSEMBLY, CONTROL KNOB (CHROME)
4MAY 9740849
5ASSEMBLY, SPEAKER
6MAY 8312709
7MAY 489470
8MAY 12990204
9NUT, "U"
10SEAL, CONSOLE
11HARNESS, UI
12SCREW
13ASSEMBLY, HOUSING
14VALVE, WATER INLET
15MAY 97787
16HARNESS, VALVE
17SCREW, DISPENSER HOUSING MOUNTING
18CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
19SCREW
20CORD, POWER
21Screw, 10-32 x 5/8
22MAY W10298887
23PANEL, CONSOLE REAR COVER
24SCREW
25ASSEMBLY, DISPENSER DRAWER (WHITE)
26ASSEMBLY, DISPENSER BEZEL (WHITE)
