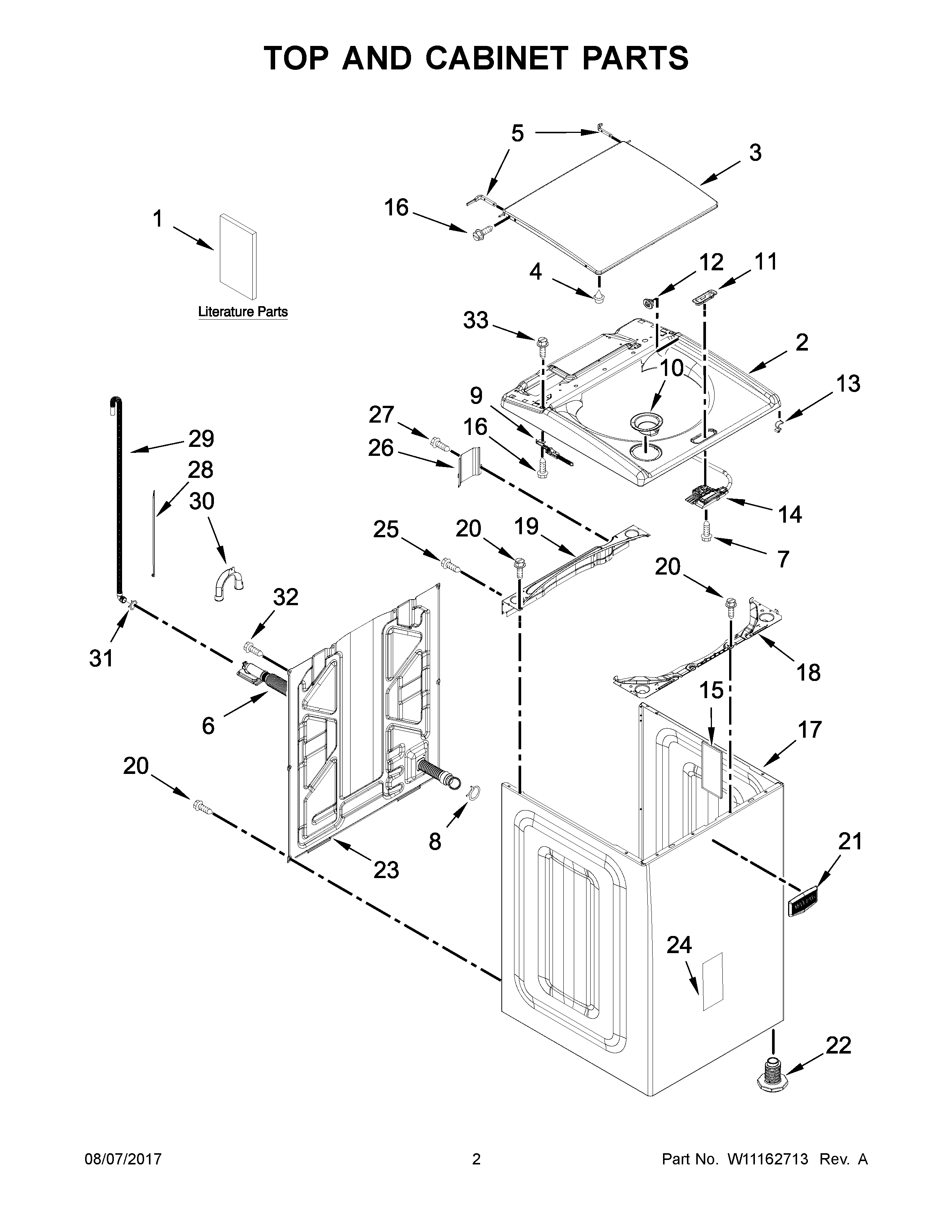

MVWB765FC1 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CENERGY GUIDE
1DQUICK START GUIDE
1AUSE & CARE GUIDE
1EDRAIN PAN INSTRUCTIONS
1INSTRUCTIONS, INSTALLATION
1BTECH SHEET
2TOP (CHROME SHADOW)
3MAY W10843975
4BUMPER, LID
5AHINGE, WIRE (RIGHT)
5HINGE, WIRE (LEFT)
6MAY W10786886
7SCREW
8MAY W10142630
9HINGE, LID (LEFT)
9AHINGE, LID (RIGHT)
10DISPENSER, BLEACH (CHROME SHADOW)
11BEZEL, LID LOCK (CHROME SHADOW)
12SPACER, LID HINGE (CHROME SHADOW)
13Clip, Wire (4)
14ASSEMBLY, LID LOCK (CHROME SHADOW)
15MAY 8564458
16Screw
17CABINET (CHROME SHADOW)
18BRACE, CABINET TOP – FRONT (CHROME SHADOW)
19BRACE, CABINET TOP – REAR
20MAY 1157158
21BADGE
22FOOT ASSEMBLY, LEVELING
23PANEL, REAR
24ABSORBER, IMPACT
25SCREW
26MAY W10676061
27Screw, 10-32 x 5/8
28TIE, CABLE
29HOSE, OUTER DRAIN ASSEMBLY
30MAY W10280024
31MAY 356138
32SCREW
33SCREW
