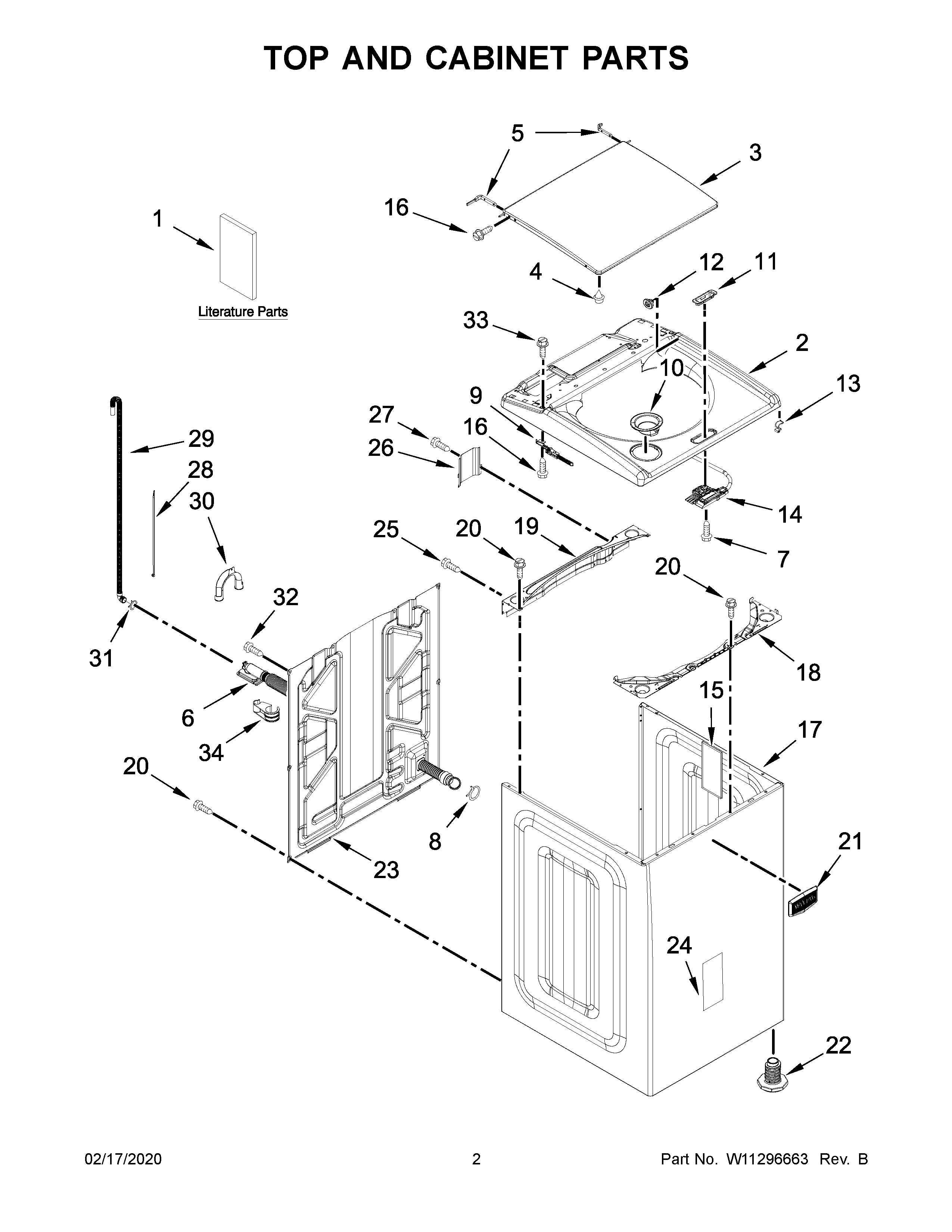

MVWB765FC3 02 – TOP AND CABINET PARTS

Products

Position	Product
1	OWNERS MANUAL
1A	ENERGY GUIDE
1B	MAY W11354634
2	TOP (CHROME SHADOW)
3	ASSEMBLY, LID (GLASS) (CHROME SHADOW)
4	BUMPER, LID
5	HINGE, WIRE (LEFT)
5A	HINGE, WIRE (RIGHT)
6	MAY W10786886
7	SCREW
8	MAY W10142630
9A	HINGE, LID (RIGHT)
9	HINGE, LID (LEFT)
10	BEZEL, BLEACH DISPENSER (CHROME SHADOW)
11	BEZEL, LID LOCK (CHROME SHADOW)
12	SPACER, LID HINGE (CHROME SHADOW)
13	Clip, Wire (4)
14	ASSEMBLY, LID LOCK (CHROME SHADOW)
15	MAY 8564458
16	SCREW
17	CABINET (CHROME SHADOW)
18	BRACE, CABINET TOP – FRONT (CHROME SHADOW)
19	BRACE, CABINET TOP – REAR
20	SCREW
21	BADGE
22	MAY W11038338
23	PANEL, REAR
24	ABSORBER, IMPACT
25	SCREW
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
32	SCREW
33	SCREW
34	CLIP, HOSE
