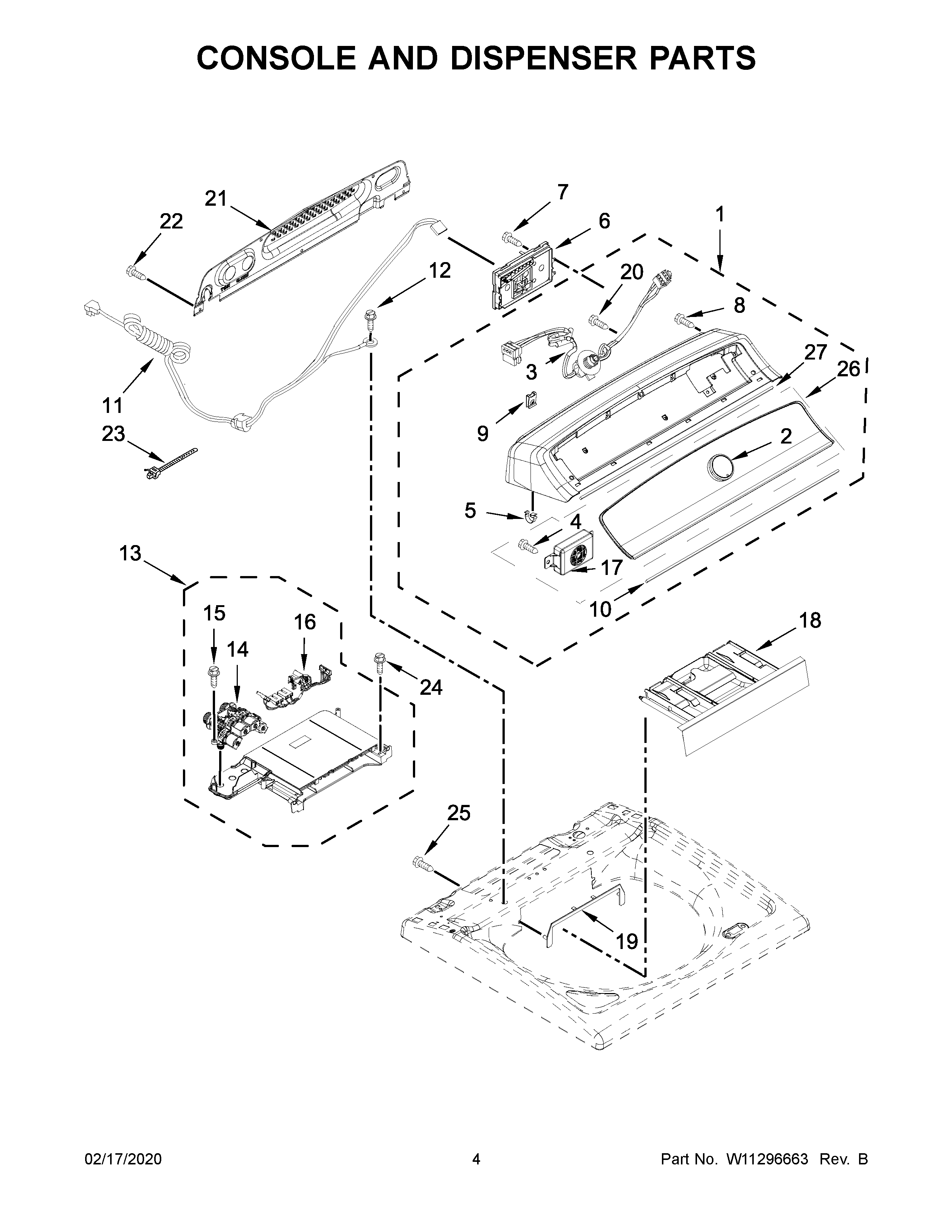

MVWB765FC3 03 – CONSOLE AND DISPENSER PARTS

Products

Position	Product
1	CONSOLE (CHROME SHADOW)
2	ASSEMBLY, CONTROL KNOB (CHROME)
3	HARNESS, UI
4	MAY 9740849
5	MAY 8312709
6	CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
7	SCREW
8	MAY 12990204
9	NUT, "U"
10	SEAL, CONSOLE
11	CORD, POWER
12	Screw, 10-32 x 5/8
13	ASSEMBLY, HOUSING
14	VALVE, WATER INLET
15	MAY 97787
16	HARNESS, VALVE
17	ASSEMBLY, SPEAKER
18	ASSEMBLY, DISPENSER DRAWER (CHROME SHADOW)
19	ASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
20	MAY 489470
21	PANEL, CONSOLE REAR COVER
22	SCREW
23	MAY W10298887
24	SCREW, DISPENSER HOUSING MOUNTING
25	SCREW
26	FASCIA
27	SEAL, CONSOLE
