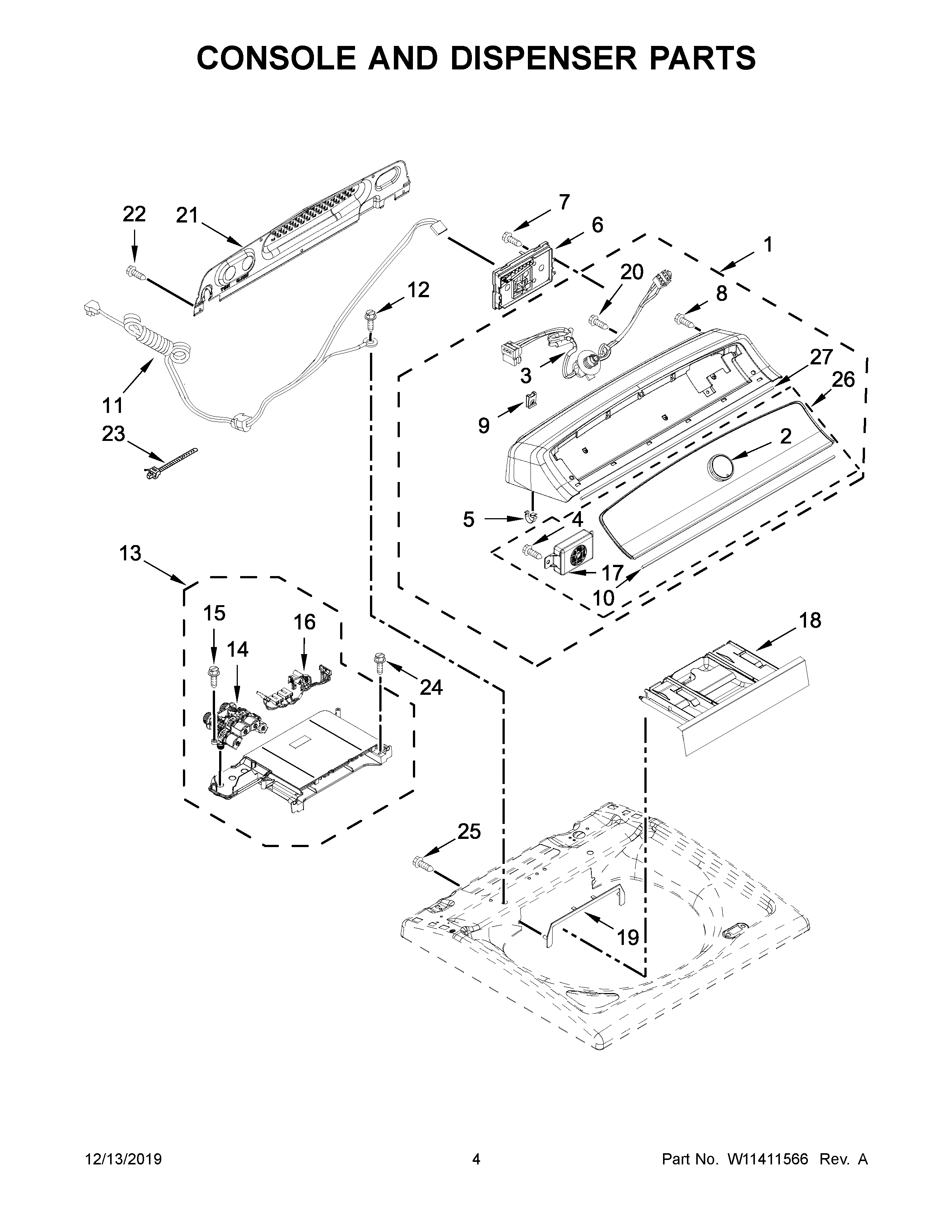

MVWB765FC4 03 – CONSOLE AND DISPENSER PARTS

MVWB765FC4 03 – CONSOLE AND DISPENSER PARTS

Written by

in

MVWB765FC4 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1CONSOLE (WHITE)
1ACONSOLE (CHROME SHADOW)
2ASSEMBLY, CONTROL KNOB (CHROME)
3HARNESS, UI
4MAY 9740849
5MAY 8312709
6MAY W11266618
7SCREW
8MAY 12990204
9NUT, "U"
10SEAL, CONSOLE
11CORD, POWER
12Screw, 10-32 x 5/8
13ASSEMBLY, HOUSING
14VALVE, WATER INLET
15MAY 97787
16HARNESS, VALVE
17ASSEMBLY, SPEAKER
18AASSEMBLY, DISPENSER DRAWER (CHROME SHADOW)
18ASSEMBLY, DISPENSER DRAWER (WHITE)
19ASSEMBLY, DISPENSER BEZEL (WHITE)
19AASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
20MAY 489470
21PANEL, CONSOLE REAR COVER
22SCREW
23MAY W10298887
24SCREW, DISPENSER HOUSING MOUNTING
25SCREW
26FASCIA
27SEAL, CONSOLE
