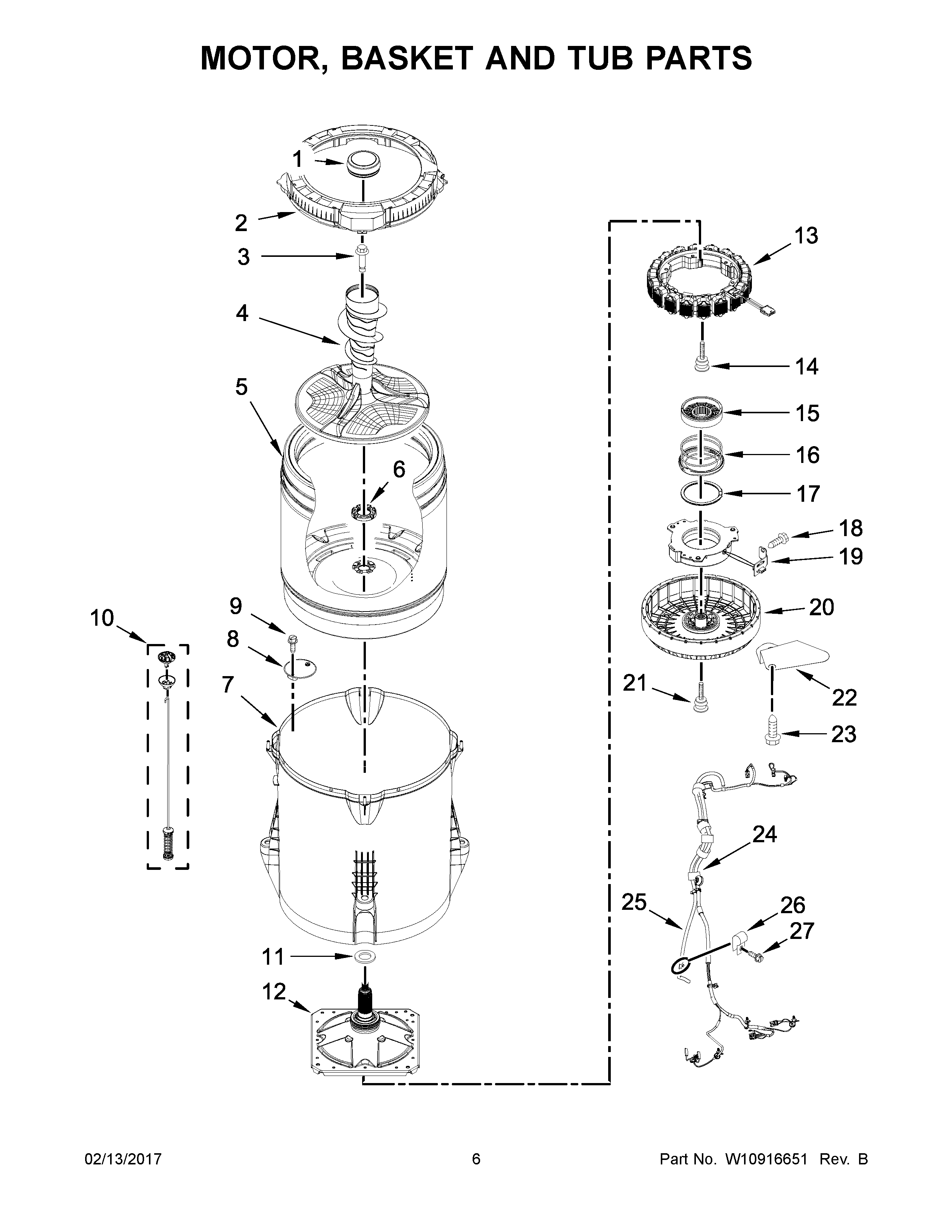

MVWB765FW0 04 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	CAP, IMPELLER
2	MAY W10578861
3	SCREW
4	AGITATOR
5	MAY W10586078
6	NUT, SPIN TUBE
7	TUB
8	MAY W10215093
9	SCREW,8-18 X 3/8
10	MAY W10901060
11	WASHER, THRUST
12	ASSEMBLY, DRIVE
13	STATOR, MOTOR
14	SCREW
15	SLIDER
16	ASSEMBLY, SPRING
17	RING, SNAP
18	SCREW
19	ASSEMBLY, CLUTCH
20	ROTOR, MOTOR
21	SCREW
22	HARNESS SHIELD – MOTOR
23	Screw
24	HARNESS, LOWER
25	MAY W10753364
26	CLAMP, CABLE
27	SCREW
