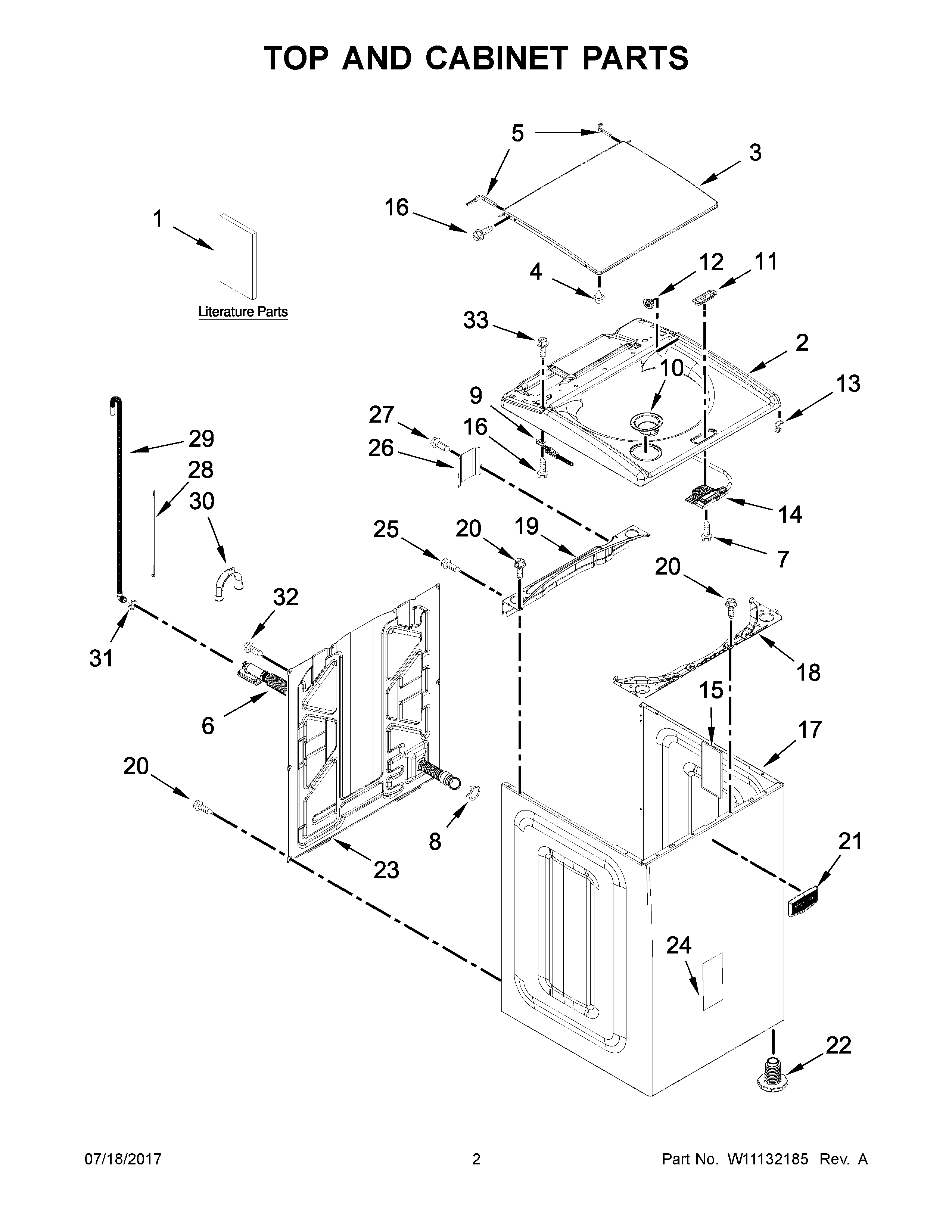

MVWB765FW1 02 – TOP AND CABINET PARTS

Products

Position	Product
1D	MAY W11101069
1C	MAY W10912014
1A	MAY W11099670
1E	DRAIN PAN INSTRUCTIONS
1	INSTRUCTIONS, INSTALLATION
1B	TECH SHEET
2	TOP (WHITE)
3	ASSEMBLY, LID (GLASS) (WHITE)
4	BUMPER, LID
5A	HINGE, WIRE (RIGHT)
5	HINGE, WIRE (LEFT)
6	MAY W10786886
7	SCREW
8	MAY W10142630
9A	HINGE, LID (RIGHT)
9	HINGE, LID (LEFT)
10	DISPENSER, BLEACH (WHITE)
11	BEZEL, LID LOCK (WHITE)
12	SPACER, LID HINGE (WHITE)
13	Clip, Wire (4)
14	ASSEMBLY, LID LOCK (WHITE)
15	MAY 8564458
16	Screw
17	CABINET (WHITE)
18	BRACE, CABINET TOP – FRONT (WHITE)
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	BADGE
22	FOOT ASSEMBLY, LEVELING
23	PANEL, REAR
24	ABSORBER, IMPACT
25	SCREW
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
32	SCREW
33	SCREW
