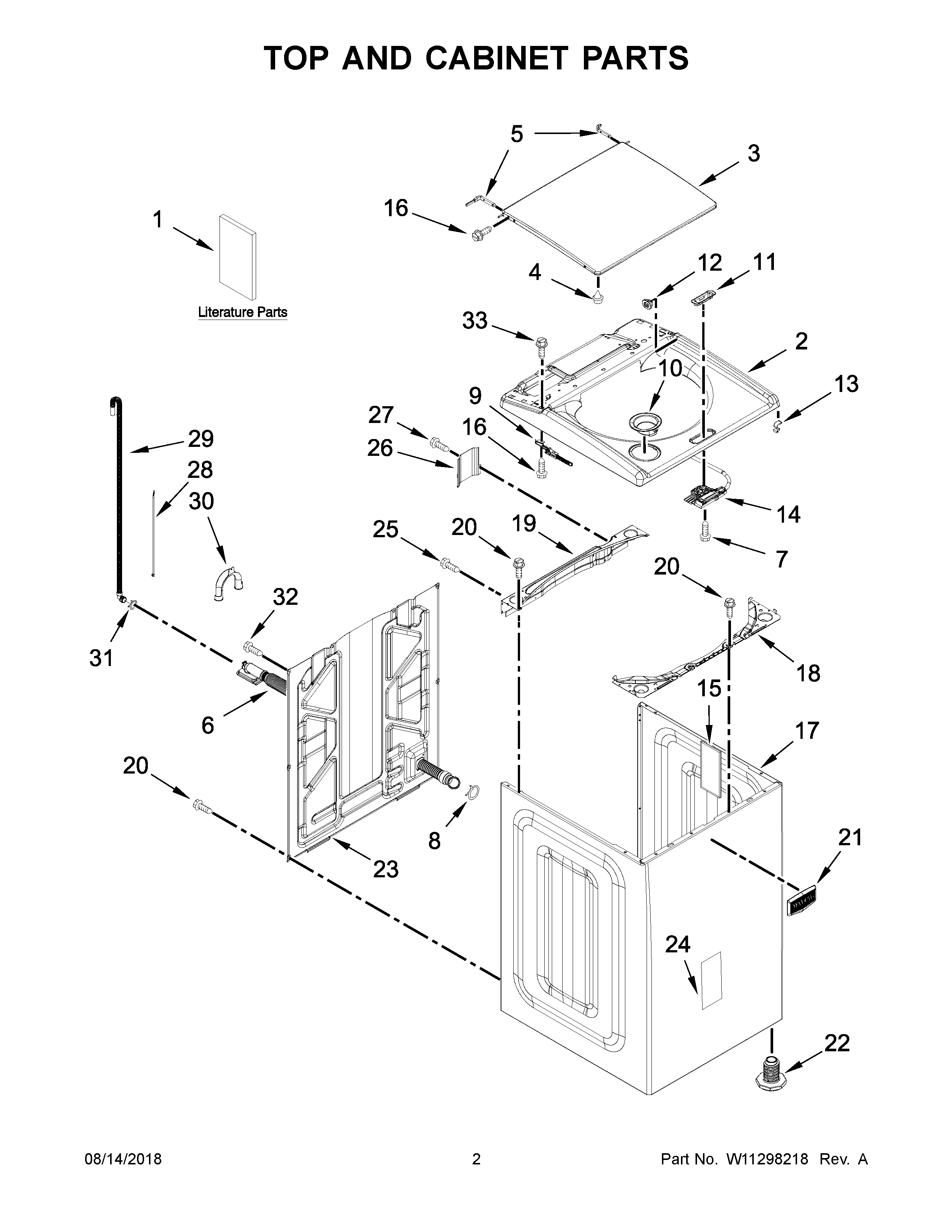

MVWB765FW3 02 – TOP AND CABINET PARTS

MVWB765FW3 02 – TOP AND CABINET PARTS

Written by

in

MVWB765FW3 02 – TOP AND CABINET PARTS

Products

PositionProduct
1BTECH SHEET
1CENERGY GUIDE
1DQUICK START GUIDE
1MAY W11128376
1AUSE & CARE GUIDE
2TOP (WHITE)
3ASSEMBLY, LID (GLASS) (WHITE)
4BUMPER, LID
5AHINGE, WIRE (RIGHT)
5HINGE, WIRE (LEFT)
6MAY W10786886
7SCREW
8MAY W10142630
9HINGE, LID (LEFT)
9AHINGE, LID (RIGHT)
10DISPENSER, BLEACH (WHITE)
11BEZEL, LID LOCK (WHITE)
12SPACER, LID HINGE (WHITE)
13Clip, Wire (4)
14ASSEMBLY, LID LOCK (WHITE)
15MAY 8564458
16Screw
17CABINET (WHITE)
18CHANNEL, TOP FRONT (WHITE)
19BRACE, CABINET TOP – REAR
20SCREW
21BADGE
22FOOT ASSEMBLY, LEVELING
23PANEL, REAR
24ABSORBER, IMPACT
25SCREW
26MAY W10676061
27Screw, 10-32 x 5/8
28TIE, CABLE
29HOSE, OUTER DRAIN ASSEMBLY
30MAY W10280024
31MAY 356138
32SCREW
33SCREW
