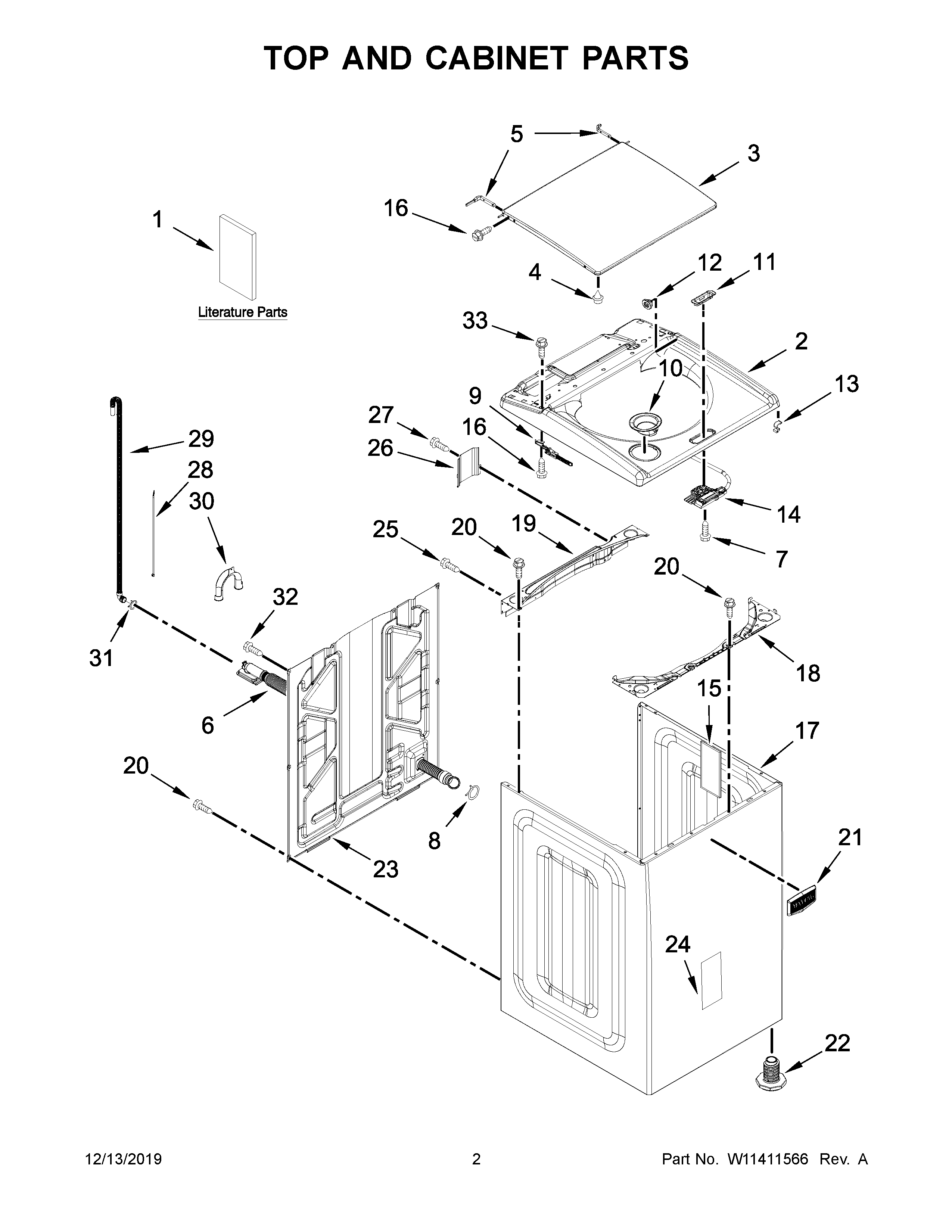

MVWB765FW4 02 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W11128376
1A	USE & CARE GUIDE
1C	MAY W11347438
1B	MAY W11349357
1D	QUICK START GUIDE
1E	ENERGY GUIDE
2	TOP (WHITE)
2A	TOP (CHROME SHADOW)
3A	ASSEMBLY, LID (GLASS) (CHROME SHADOW)
3	ASSEMBLY, LID (GLASS) (WHITE)
4	BUMPER, LID
5A	HINGE, WIRE (RIGHT)
5	HINGE, WIRE (LEFT)
6	MAY W10786886
7	SCREW
8	MAY W10142630
9A	HINGE, LID (RIGHT)
9	HINGE, LID (LEFT)
10A	BEZEL, BLEACH DISPENSER (CHROME SHADOW)
10	DISPENSER, BLEACH (WHITE)
11	BEZEL, LID LOCK (WHITE)
11A	BEZEL, LID LOCK (CHROME SHADOW)
12A	SPACER, LID HINGE (CHROME SHADOW)
12	SPACER, LID HINGE (WHITE)
13	Clip, Wire (4)
14A	ASSEMBLY, LID LOCK (CHROME SHADOW)
14	ASSEMBLY, LID LOCK (WHITE)
15	MAY 8564458
16	Screw
17A	CABINET (CHROME SHADOW)
17	CABINET (WHITE)
18	CHANNEL, TOP FRONT (WHITE)
18A	BRACE, CABINET TOP – FRONT (CHROME SHADOW)
19	BRACE, CABINET TOP – REAR
20	SCREW
21	BADGE
22	FOOT ASSEMBLY, LEVELING
23	PANEL, REAR
24	ABSORBER, IMPACT
25	SCREW
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
32	SCREW
33	SCREW
