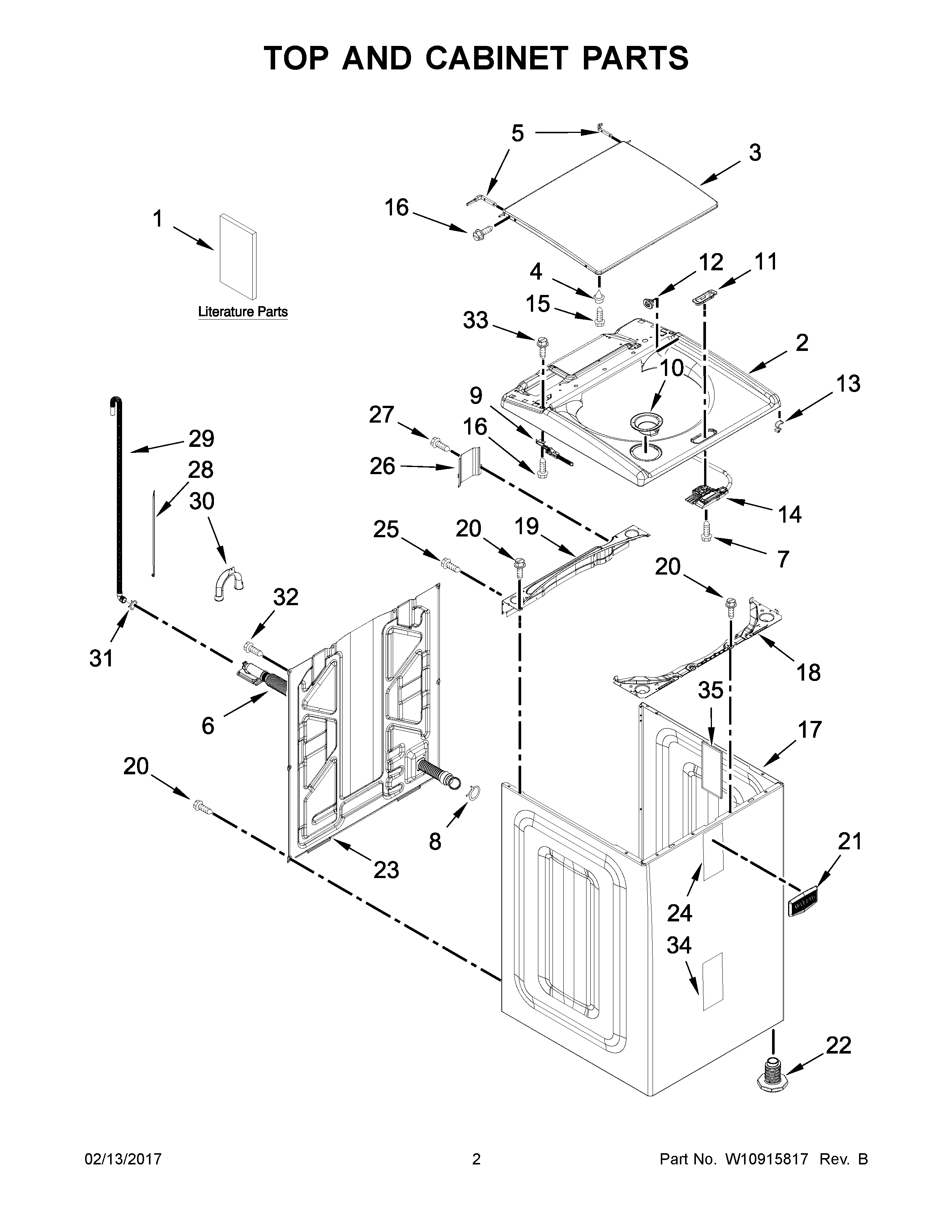

MVWB766FW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	OWNERS MANUAL
1C	ENERGY GUIDE
1E	DRAIN PAN INSTRUCTIONS
1B	TECH SHEET
1	INSTRUCTIONS, INSTALLATION
1D	QUICK START GUIDE
2	TOP (WHITE)
3	ASSEMBLY, LID (GLASS) (WHITE)
4	BUMPER, LID
5	HINGE, WIRE (LEFT)
5A	HINGE, WIRE (RIGHT)
6	MAY W10786886
7	SCREW, LID HINGE
8	MAY W10142630
9A	HINGE, LID (RIGHT)
9	HINGE, LID (LEFT)
10	DISPENSER, BLEACH (WHITE)
11	BEZEL, LID LOCK (WHITE)
12	SPACER, LID HINGE (WHITE)
13	Clip, Wire (4)
14	ASSEMBLY, LID LOCK (WHITE)
15	MAY 8563892
16	Screw
17	CABINET (WHITE)
18	BRACE, CABINET TOP – FRONT (WHITE)
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	BADGE
22	FOOT ASSEMBLY, LEVELING
23	PANEL, REAR
24	MAY W10414221
25	SCREW
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
32	SCREW
33	SCREW
34	ABSORBER, IMPACT
35	MAY 8564458
