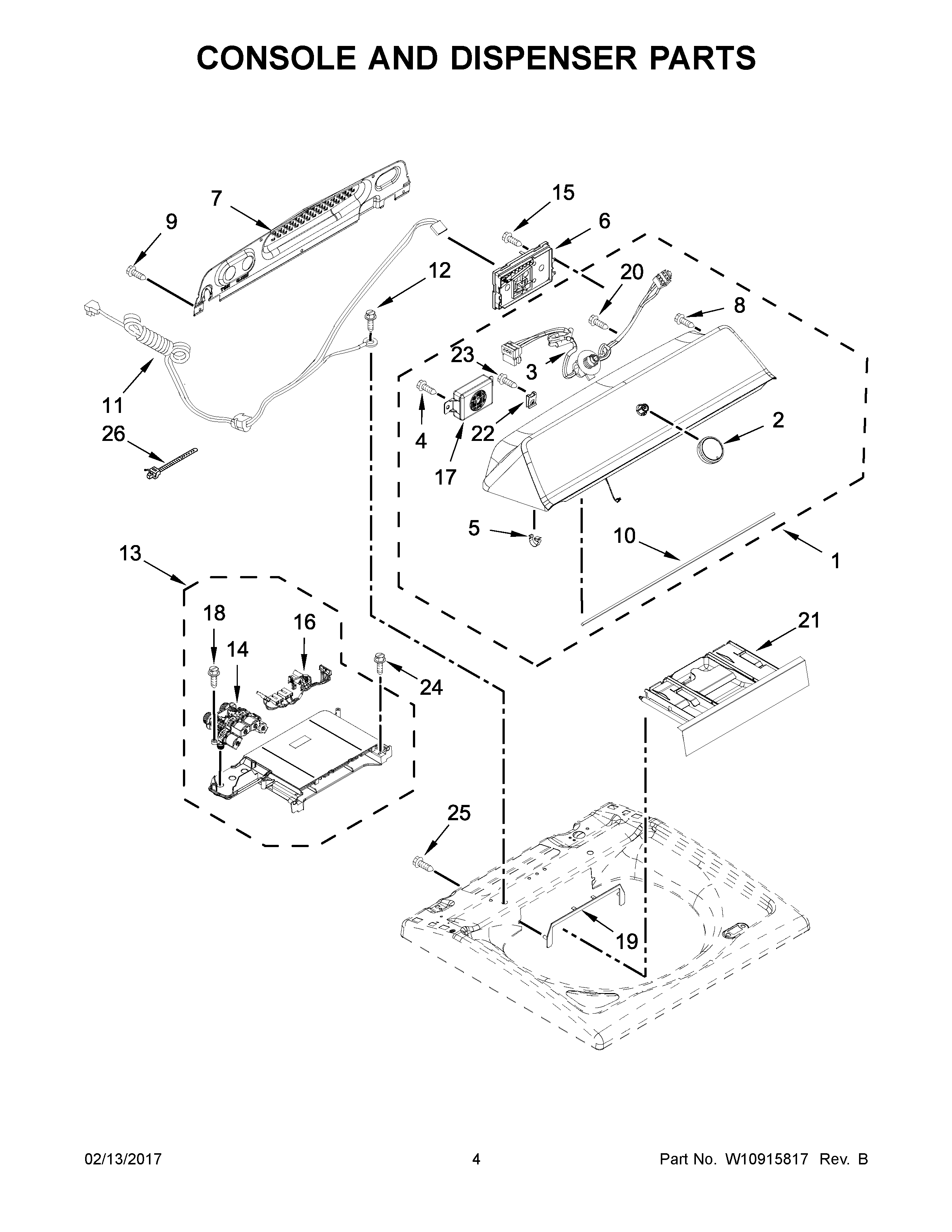

MVWB766FW0 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1CONSOLE (WHITE)
2ASSEMBLY, CONTROL KNOB (CHROME)
3HARNESS, UI
4MAY 9740849
5MAY 8312709
6CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
7PANEL, CONSOLE REAR COVER
8MAY 12990204
9MAY 1157158
10SEAL, CONSOLE
11CORD, POWER
12Screw, 10-32 x 5/8
13ASSEMBLY, HOUSING
14VALVE, WATER INLET
15SCREW
16HARNESS, VALVE
17ASSEMBLY, SPEAKER
18MAY 97787
19ASSEMBLY, DISPENSER BEZEL (WHITE)
20MAY 489470
21ASSEMBLY, DISPENSER DRAWER (WHITE)
22NUT, "U"
23MAY 8563892
24SCREW, DISPENSER HOUSING MOUNTING
25SCREW
26MAY W10298887
