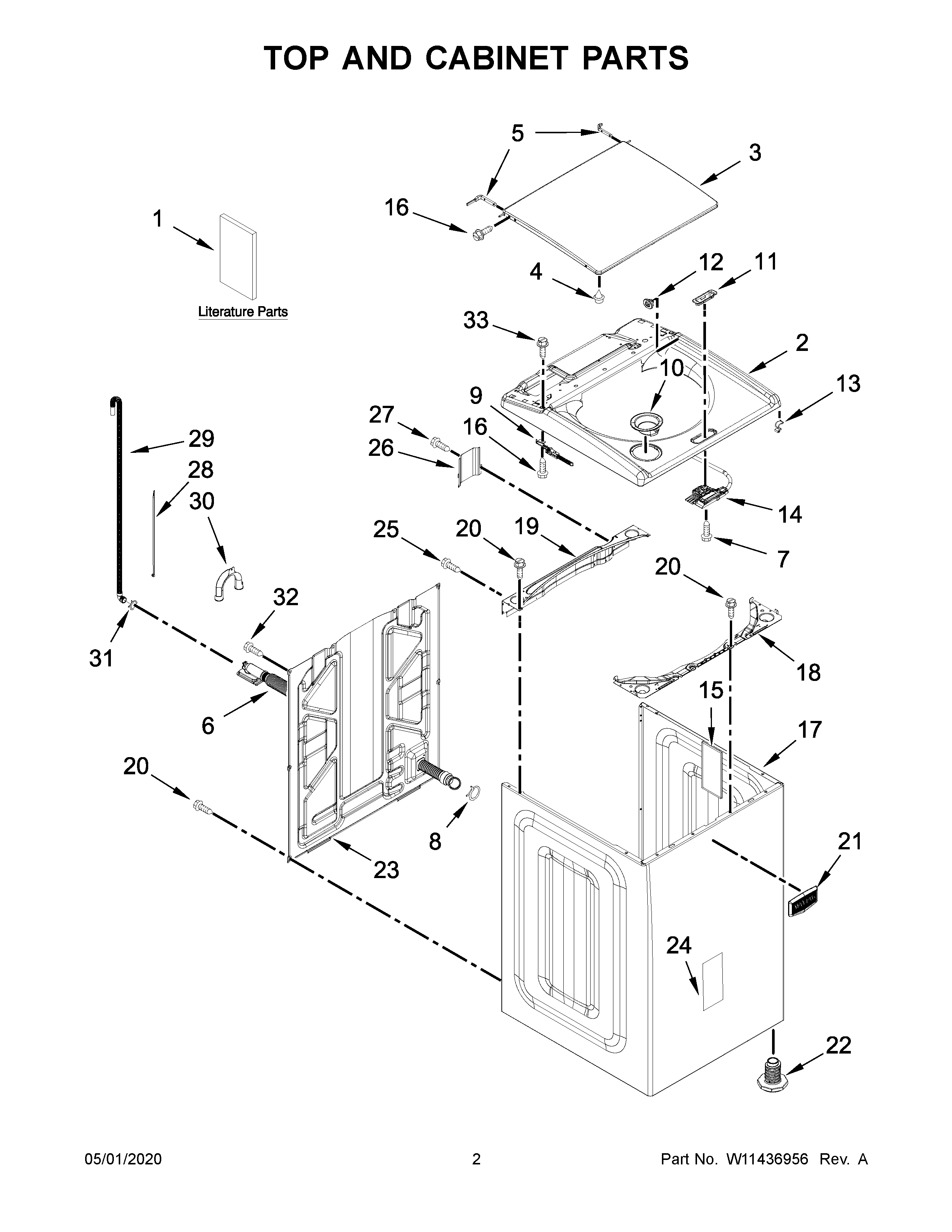

MVWB766FW2 02 – TOP AND CABINET PARTS

MVWB766FW2 02 – TOP AND CABINET PARTS

Written by

in

MVWB766FW2 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CENERGY GUIDE
1AOWNERS MANUAL
1BQUICK START GUIDE
1MAY W11128376
2TOP (WHITE)
3ASSEMBLY, LID (GLASS) (WHITE)
4BUMPER, LID
5AHINGE, WIRE (RIGHT)
5HINGE, WIRE (LEFT)
6MAY W10786886
7SCREW
8CLAMP, HOSE
9AHINGE, LID (RIGHT)
9HINGE, LID (LEFT)
10DISPENSER, BLEACH (WHITE)
11BEZEL, LID LOCK (WHITE)
12SPACER, LID HINGE (WHITE)
13Clip, Wire (4)
14ASSEMBLY, LID LOCK (WHITE)
15MAY 8564458
16Screw
17CABINET (WHITE)
18CHANNEL, TOP FRONT (WHITE)
19BRACE, CABINET TOP – REAR
20SCREW
21BADGE
22FOOT ASSEMBLY, LEVELING
23PANEL, REAR
24ABSORBER, IMPACT
25SCREW
26MAY W10676061
27Screw, 10-32 x 5/8
28TIE, CABLE
29HOSE, OUTER DRAIN ASSEMBLY
30MAY W10280024
31MAY 356138
32SCREW
33SCREW
