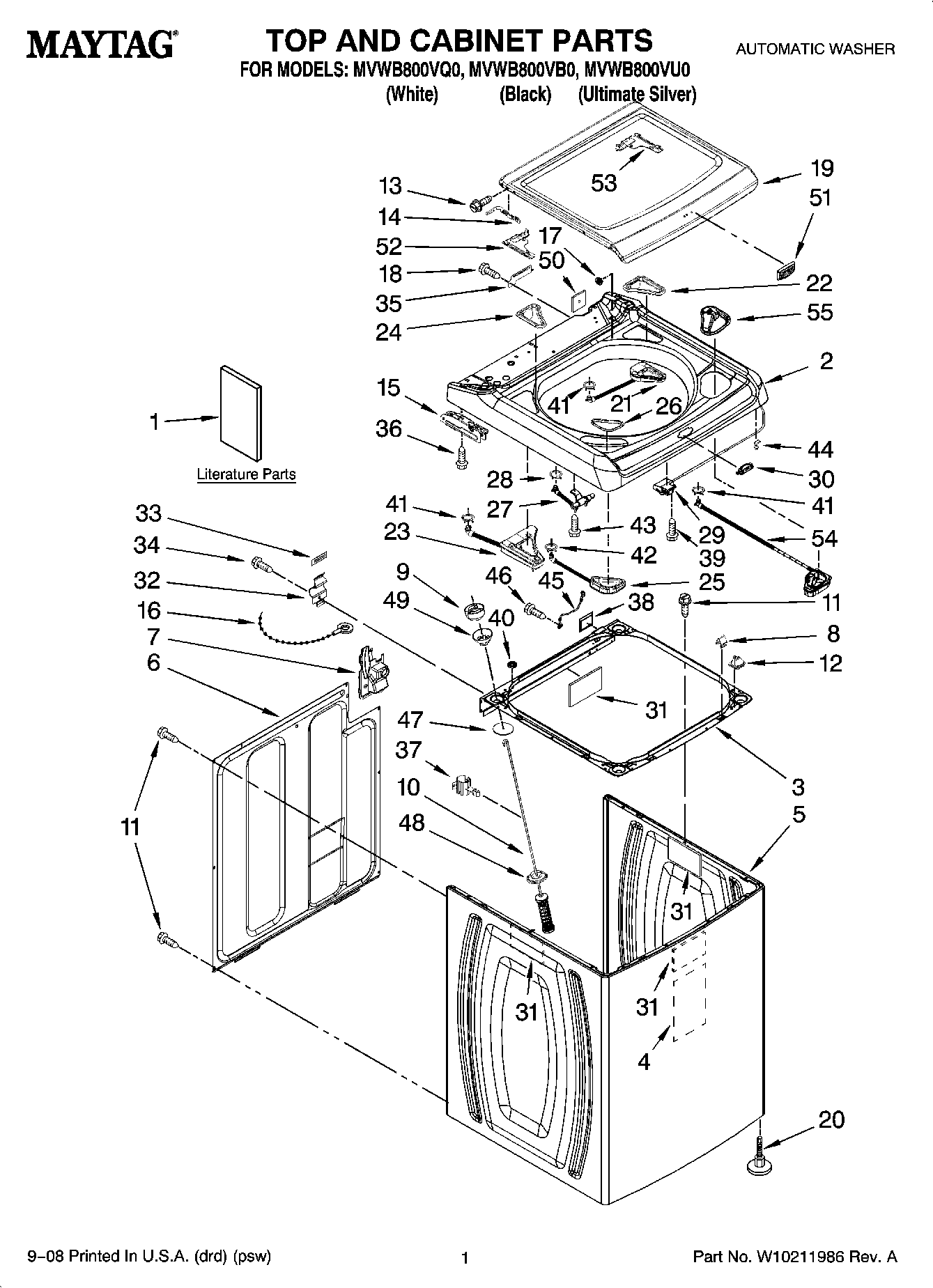

MVWB800VQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10092764
1	MAY W10092769
1	MAY W10110838
1	MAY W10092765
1	MAY W10092767
1	MAY W10092768
2	MAY W10178403
2	MAY W10110834
2	MAY W10141677
3	FRAME ASSEMBLY, CABINET TOP (INCLUDES ITEM 38)
4	Cabinet-Damper, Sound (3)
5	MAY W10110811
5	CABINET (WHITE)
5	MAY W10045598
6	MAY 8566090
7	MAY W10160572
8	LOCK, TOP-FRONT
9	BALL, SUSPENSION (SET OF 4 – (INCLUDES ITEM 49))
10	Damper Assembly, Tub Suspension (Set Of 4-Includes Items 8,9,48 & 49)
11	MAY 1157158
12	MAY W10042120
13	SCREW, LID HINGE
14	MAY 8563964
15	MAY W10141682
15	MAY W10141681
16	CABLE TIE
17	MAY W10119519
18	SCREW
19	Lid, Glass Assembly (White)
19	MAY W10187142
19	MAY W10194735
20	MAY 8578826
21	MAY W10172146
22	MAY W10197499
22	MAY W10185300
22	Bezel, Fabric Softener Dispenser (White)
23	Dispenser, Bleach
24	MAY W10197501
24	MAY W10185298
24	Bezel, Bleach Dispenser (White)
25	MAY W10172154
26	Bezel, Detergent Dispenser (White)
26	MAY W10185296
26	MAY W10197505
27	MAY W10106990
29	MAY W10059230
30	MAY W10052520
30	Bezel, Lid Lock (White)
30	MAY W10158234
31	MAY 8564458
32	MAY 8564456
33	Pad, Top Hinge (2)
34	SCREW
35	MAY 8563941
36	Screw
37	MAY 8543784
38	MAY 8578386
39	SCREW
40	MAY 8576476
41	MAY 370451
42	MAY 371503
43	SCREW, DISPENSER HOUSING MOUNTING
44	Clip, Wire (4)
45	MAY 8281736
46	Screw, 10-32 x 5/8
47	MAY 8577896
48	MAY 8564017
49	MAY W10167599
50	TOP, FOAM SEAL
51	MAY W10153170
52	MAY W10194739
52	MAY W10110826
52	Cap-Hinge, Left (White)
53	Cap-Hinge, Right (
53	MAY W10110824
53	MAY W10194738
54	MAY W10170964
55	MAY W10139794
55	MAY W10182876
55	MAY W10197507
