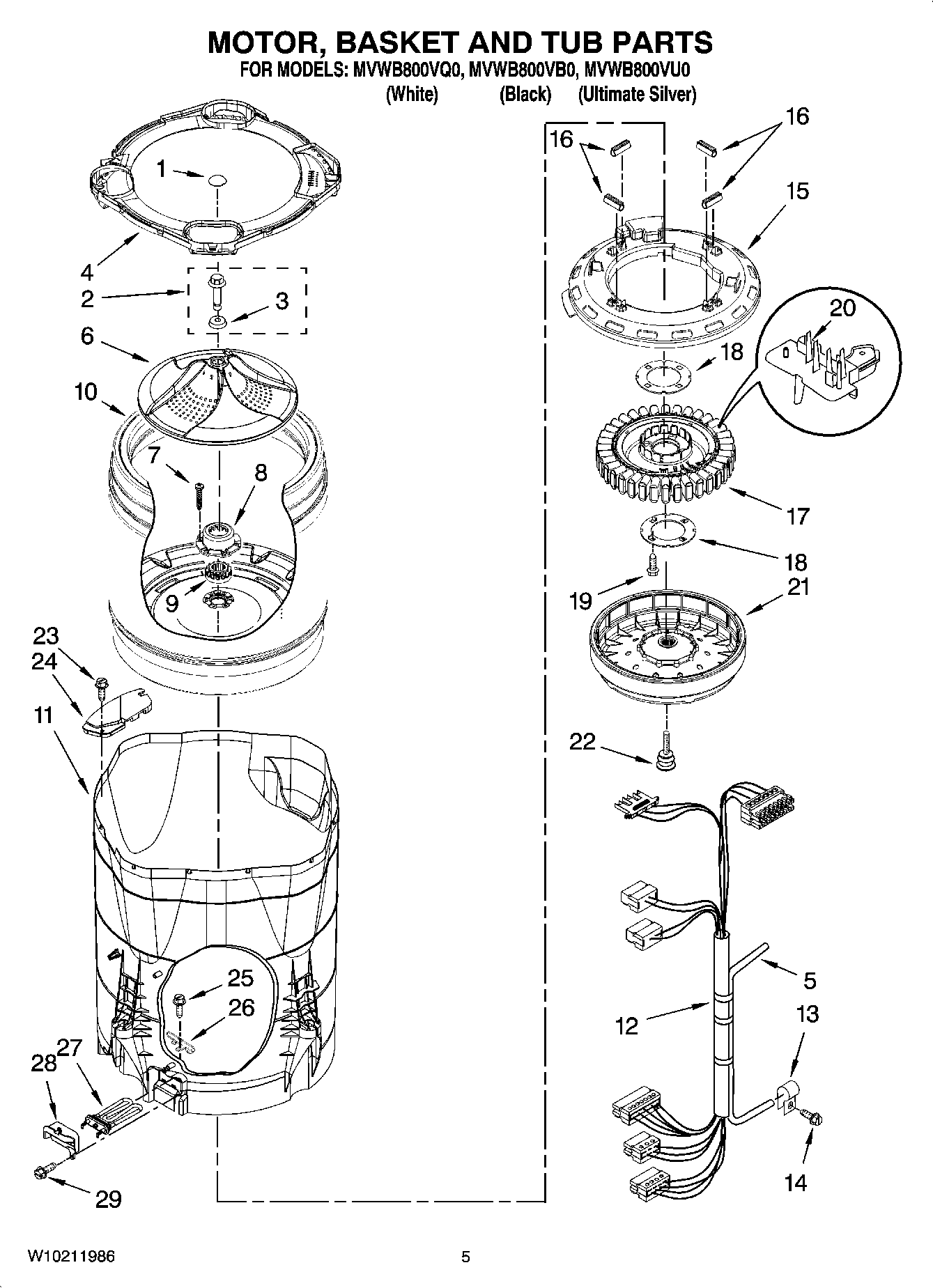

MVWB800VU0 03 – MOTOR, BASKET AND TUB PARTS

MVWB800VU0 03 – MOTOR, BASKET AND TUB PARTS

Written by

in

MVWB800VU0 03 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY W10149460
2	MAY W10076270
3	MAY W10076260
4	MAY W10140865
5	MAY 8572540
6	MAY W10141017
7	SCREW
8	HUB, BASKET-DRIVEN
9	HUB, BASKET DRIVER
10	MAY W10118182
11	MAY W10157673
12	MAY W10122723
13	CLAMP, CABLE
14	Screw
15	SHIELD, DRIVE MOTOR
16	MAY 8565172
17	MAY 8565170
18	PLATE, STATOR
19	SCREW
20	MAY W10137685
21	ROTOR, MAIN DRIVE MOTOR
23	Screw
24	MAY 8566197
25	SCREW
26	MAY W10134571
27	MAY W10121071
28	MAY W10140727
29	SCREW
