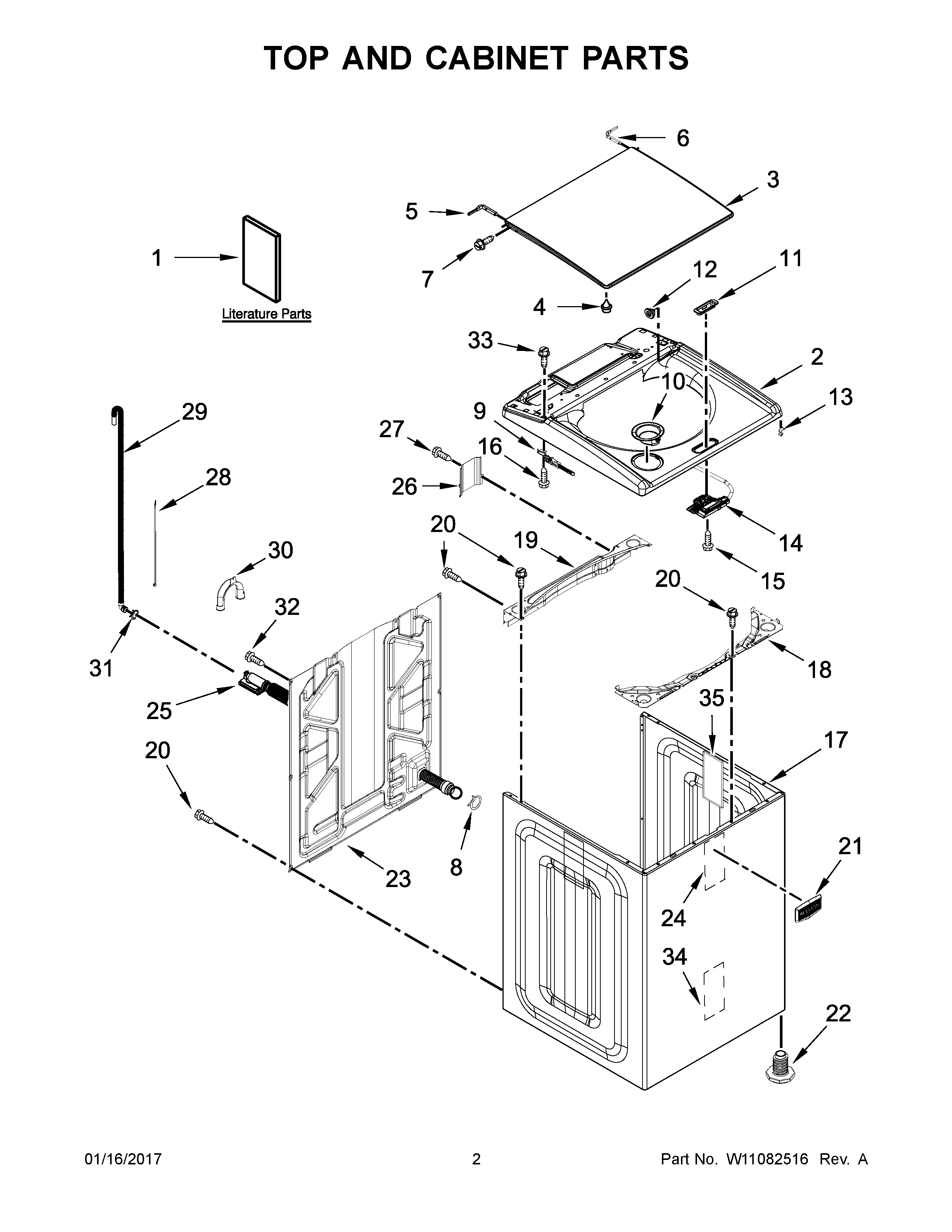

MVWB835DC0 02 – TOP AND CABINET PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1E	DRAIN PAN INSTRUCTIONS
1D	QUICK START GUIDE
1A	MAY W10607439
1C	MAY W10062923
1B	TECH SHEET
2	TOP (CHROME SHADOW)
3	MAY W10724672
4	BUMPER, LID
5	HINGE, WIRE (LEFT)
6	HINGE, WIRE (RIGHT)
7	SCREW
8	MAY W10142630
9A	HINGE, LID (RIGHT)
9	HINGE, LID (LEFT)
10	DISPENSER, BLEACH (CHROME SHADOW)
11	BEZEL, LID LOCK (CHROME SHADOW)
12	SPACER, LID HINGE (CHROME SHADOW)
13	Clip, Wire (4)
14	ASSEMBLY, LID LOCK (CHROME SHADOW)
15	SCREW
16	Screw
17	CABINET (CHROME SHADOW)
18	BRACE, CABINET TOP – FRONT (CHROME SHADOW)
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	BADGE
22	FOOT ASSEMBLY, LEVELING
23	PANEL, REAR
24	MAY W10414221
25	HOSE, INTERNAL DRAIN
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
32	SCREW
33	SCREW
34	ABSORBER, IMPACT
35	MAY 8564458
