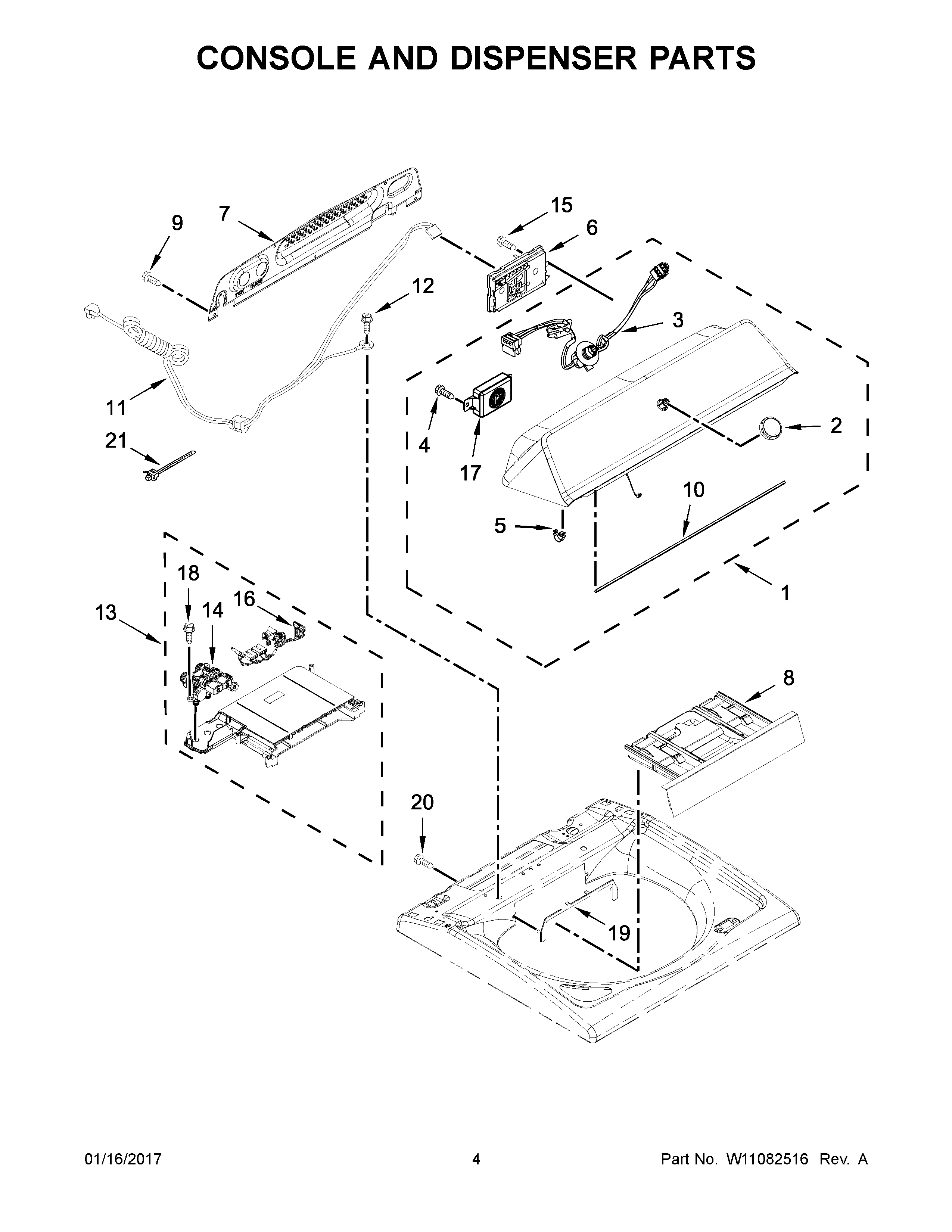

MVWB835DC0 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1MAY W11026900
2ASSEMBLY, CONTROL KNOB (CHROME)
3HARNESS, UI
4MAY 9740849
5MAY 8312709
6MAY W10625694
7PANEL, CONSOLE REAR COVER
8ASSEMBLY, DISPENSER DRAWER (CHROME SHADOW)
9MAY 1157158
10SEAL, CONSOLE
11CORD, POWER
12Screw, 10-32 x 5/8
13ASSEMBLY, HOUSING
14VALVE, WATER INLET
15SCREW
16HARNESS, VALVE
17ASSEMBLY, SPEAKER
18MAY 97787
19ASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
20SCREW, DISPENSER HOUSING MOUNTING
21MAY W10298887
