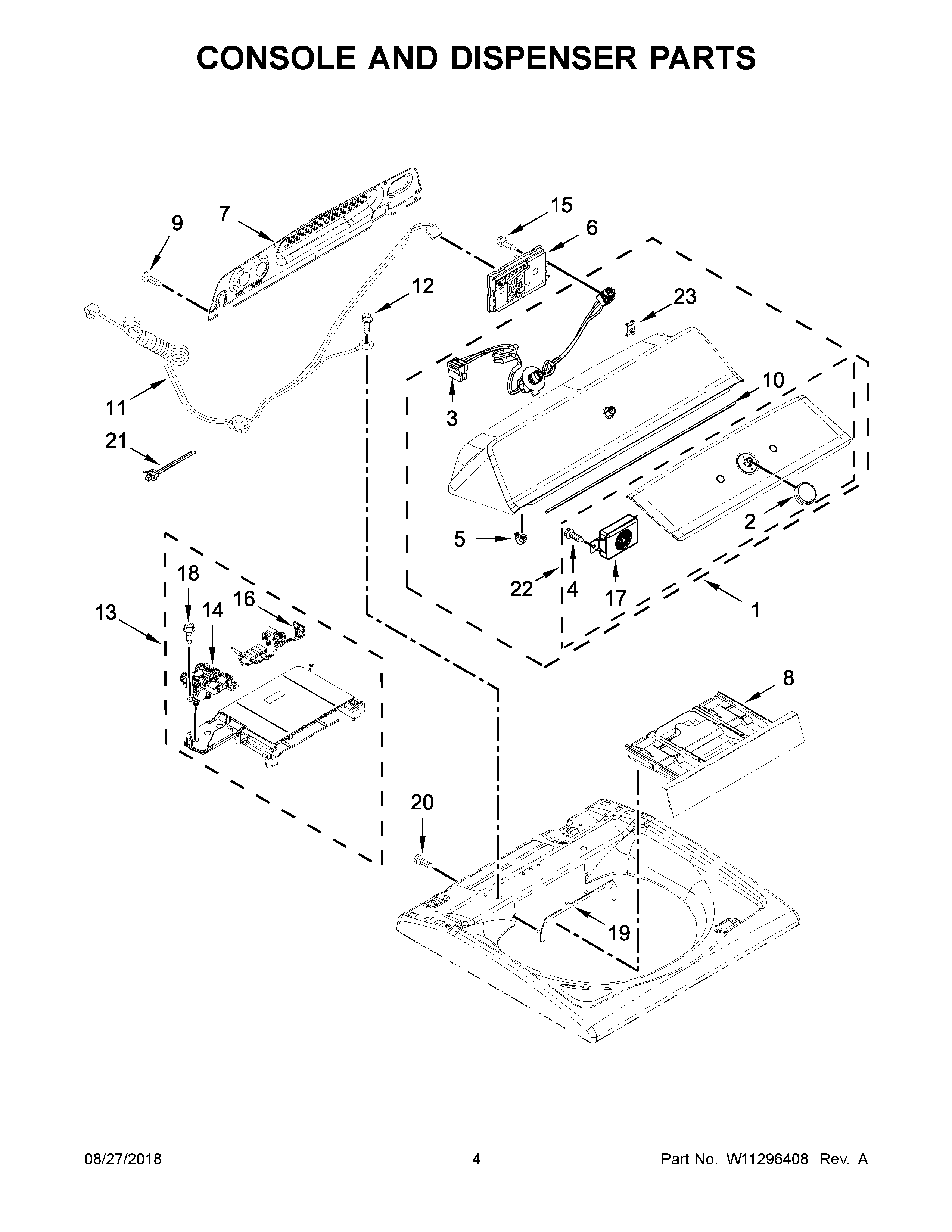

MVWB835DC4 03 – CONSOLE AND DISPENSER PARTS

Products

Position	Product
1	CONSOLE (CHROME SHADOW)
2	ASSEMBLY, CONTROL KNOB (CHROME)
3	HARNESS, UI
4	MAY 9740849
5	MAY 8312709
6	CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
7	PANEL, CONSOLE REAR COVER
8	ASSEMBLY, DISPENSER DRAWER (CHROME SHADOW)
9	SCREW
10	SEAL, CONSOLE
11	CORD, POWER
12	Screw, 10-32 x 5/8
13	ASSEMBLY, HOUSING
14	VALVE, WATER INLET
15	SCREW
16	HARNESS, VALVE
17	ASSEMBLY, SPEAKER
18	MAY 97787
19	ASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
20	SCREW, DISPENSER HOUSING MOUNTING
21	MAY W10298887
22	ASSEMBLY, FASCIA (GREY)
23	NUT, "U"
