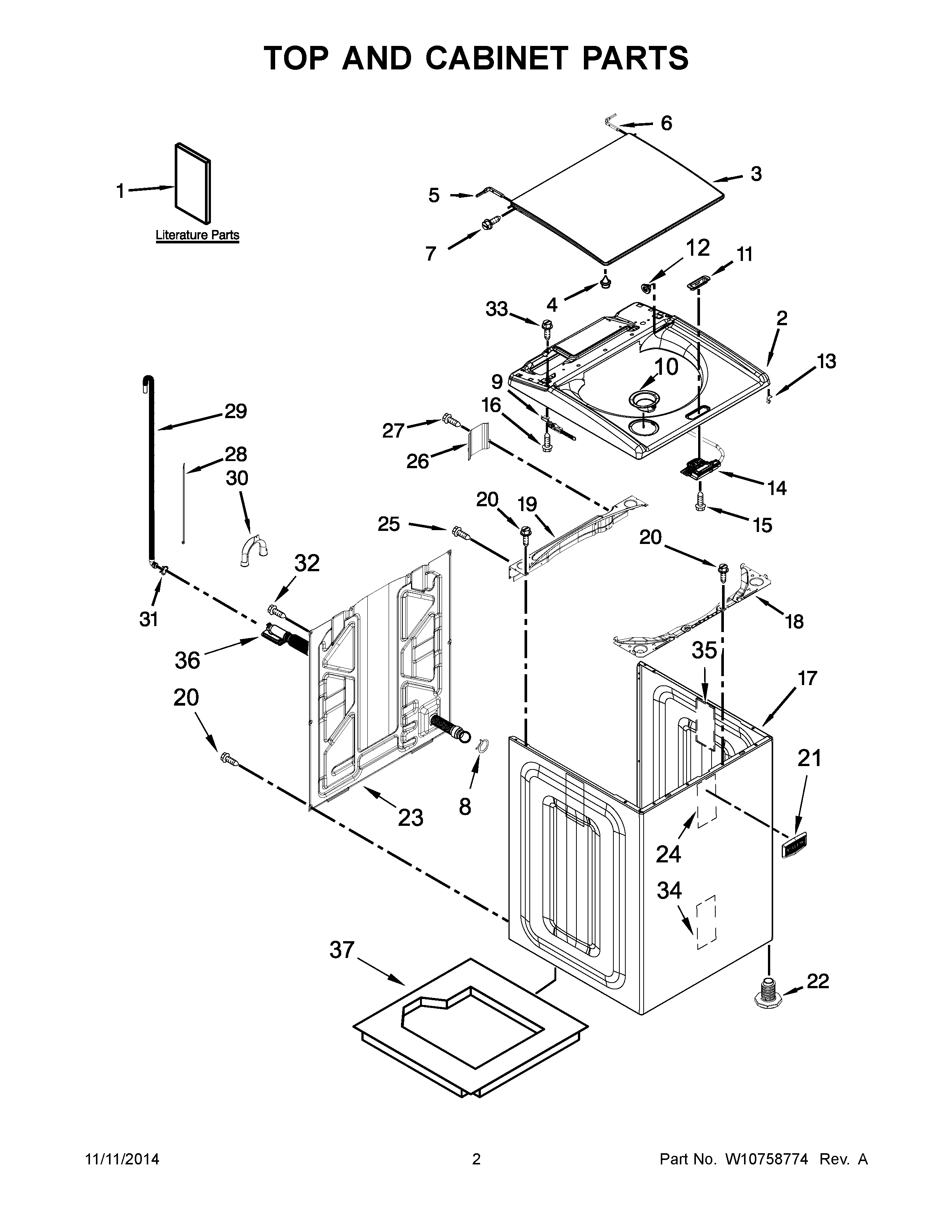

MVWB835DW0 02 – TOP AND CABINET PARTS

MVWB835DW0 02 – TOP AND CABINET PARTS

Written by

in

MVWB835DW0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1BTECH SHEET
1INSTALLATION INSTRUCTIONS
1CMAY W10062923
1AMAY W10607439
2TOP (WHITE)
3MAY W10714900
4BUMPER, LID
5HINGE, WIRE (LEFT)
6HINGE, WIRE (RIGHT)
7SCREW
8MAY W10142630
9HINGE, LID (LEFT)
9AHINGE, LID (RIGHT)
10DISPENSER, BLEACH (WHITE)
11BEZEL, LID LOCK (WHITE)
12SPACER, LID HINGE (WHITE)
13Clip, Wire (4)
14MAY W10648012
15SCREW
16Screw
17CABINET (WHITE)
18BRACE, CABINET TOP – FRONT (WHITE)
19BRACE, CABINET TOP – REAR
20MAY 1157158
21BADGE
22FOOT ASSEMBLY, LEVELING
23PANEL, REAR
24MAY W10414221
25SCREW
26MAY W10676061
27Screw, 10-32 x 5/8
28TIE, CABLE
29HOSE, OUTER DRAIN ASSEMBLY
30MAY W10280024
31MAY 356138
32SCREW
33SCREW
34ABSORBER, IMPACT
35MAY 8564458
36MAY W10652929
37MAY W10676603
