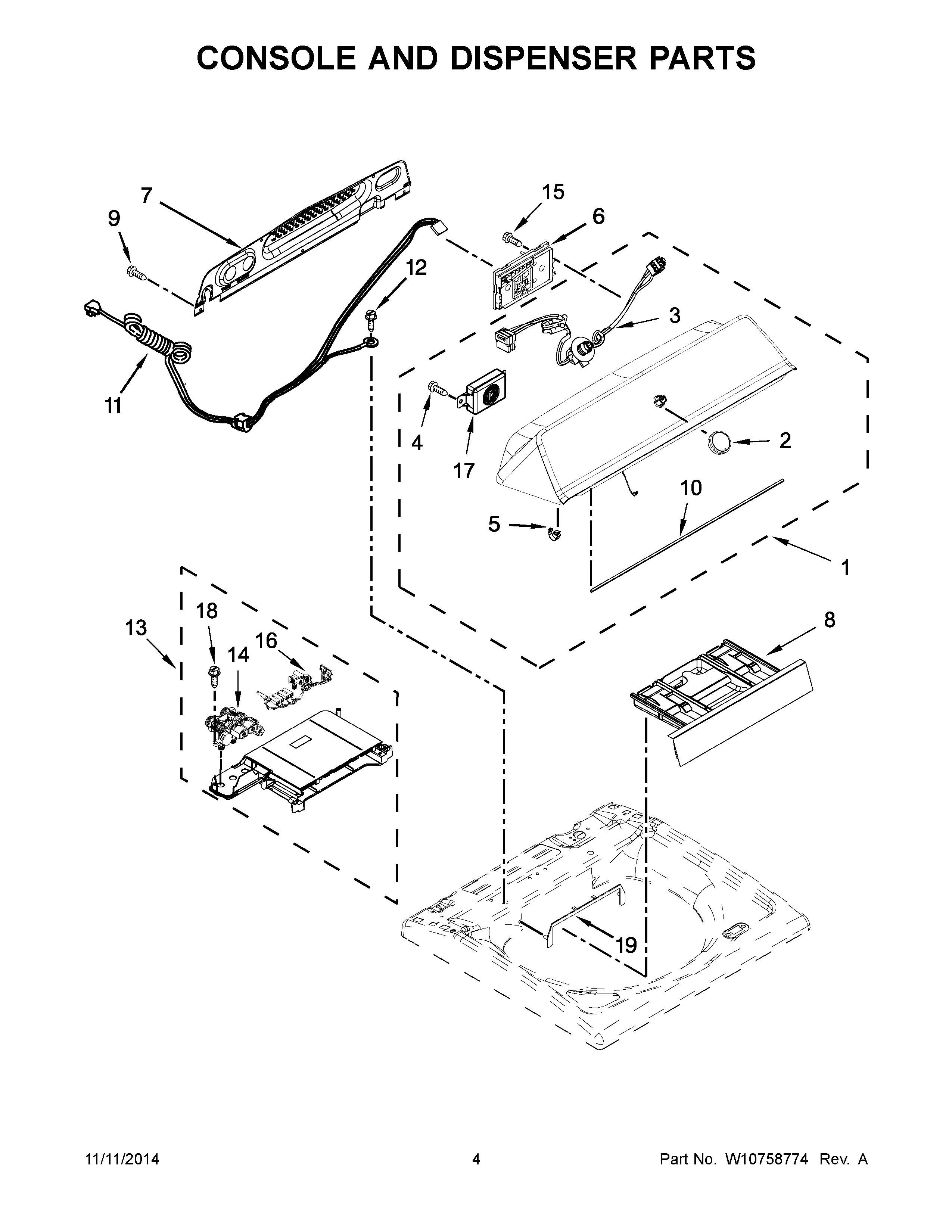

MVWB835DW0 03 – CONSOLE AND DISPENSER PARTS

Products

Position	Product
1	MAY W10650404
2	ASSEMBLY, CONTROL KNOB (CHROME)
3	MAY W10596717
4	MAY 12990204
5	MAY 8312709
6	MAY W10625694
7	PANEL, CONSOLE REAR COVER
8	MAY W10601825
9	MAY 1157158
10	SEAL, CONSOLE
11	CORD, POWER
12	Screw, 10-32 x 5/8
13	MAY W10632532
14	MAY W10599423
15	SCREW
16	MAY W10530674
17	ASSEMBLY, SPEAKER
18	MAY 97787
19	ASSEMBLY, DISPENSER BEZEL (WHITE)
