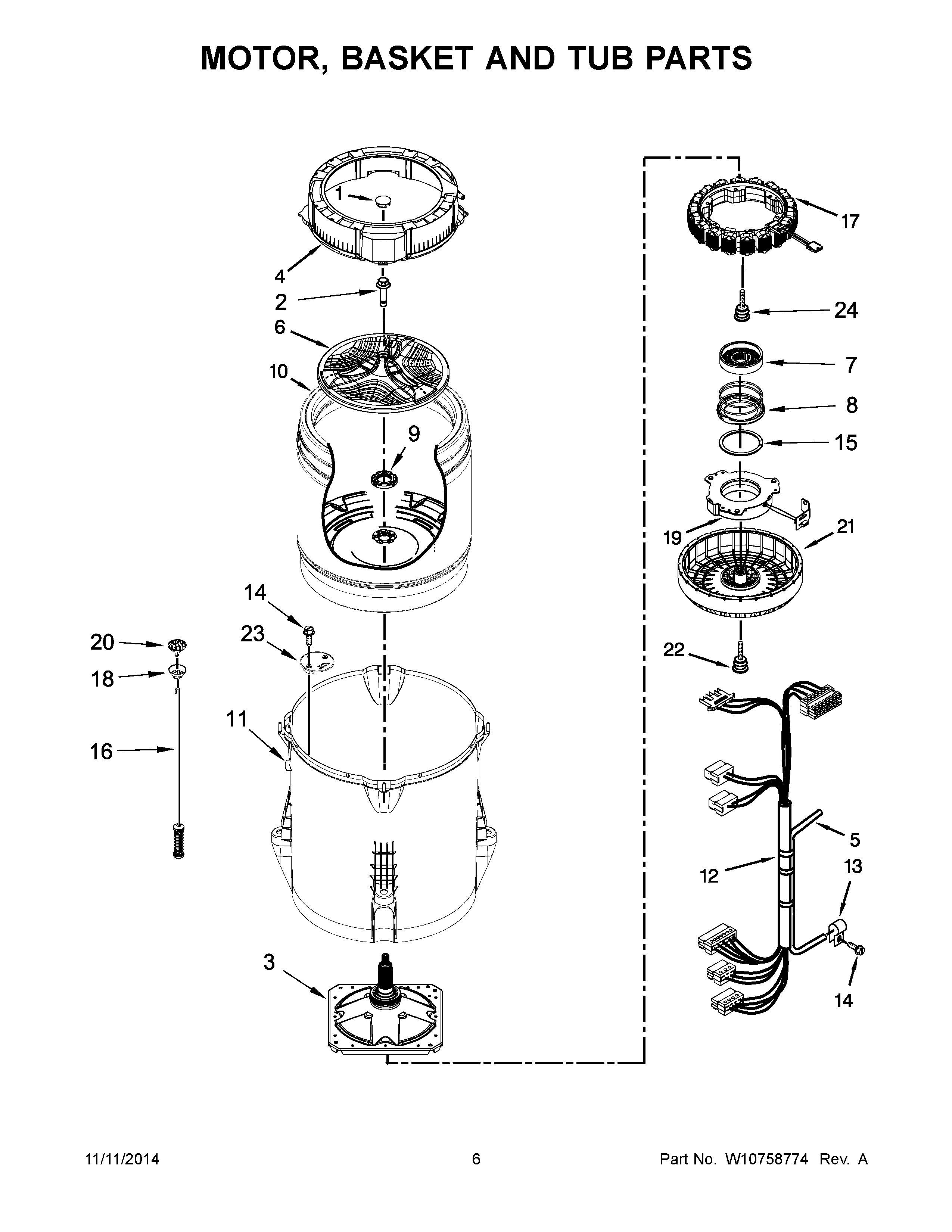

MVWB835DW0 04 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1CAP, IMPELLER
2SCREW
3MAY W10447976
4TUB RING
5HOSE PRESSURE SWITCH
6MAY W10609480
7SLIDER
8ASSEMBLY, SPRING
9NUT, SPIN TUBE
10BASKET ASSEMBLY
11TUB
12MAY W10631220
13CLAMP, CABLE
14SCREW
15RING, SNAP
16MAY W10594084
17STATOR, MOTOR
18BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
19ASSEMBLY, CLUTCH
20BALL, SUSPENSION (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
21ROTOR, MOTOR
22SCREW
23MAY W10215093
24SCREW
