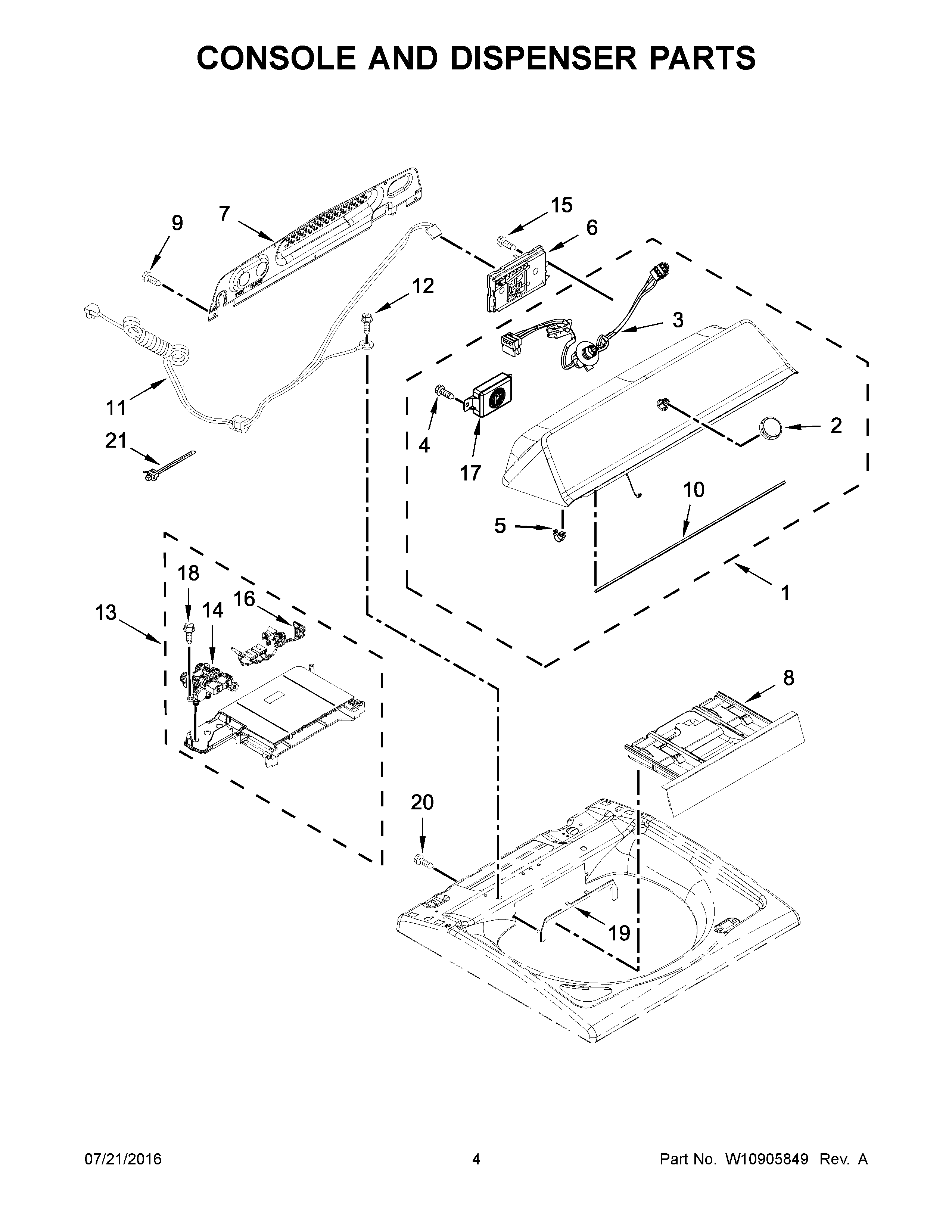

MVWB835DW1 03 – CONSOLE AND DISPENSER PARTS

Products

Position	Product
1	MAY W10650404
2	ASSEMBLY, CONTROL KNOB (CHROME)
3	HARNESS, UI
4	MAY 9740849
5	MAY 8312709
6	MAY W10858075
7	PANEL, CONSOLE REAR COVER
8	ASSEMBLY, DISPENSER DRAWER (WHITE)
9	MAY 1157158
10	SEAL, CONSOLE
11	CORD, POWER
12	Screw, 10-32 x 5/8
13	ASSEMBLY, HOUSING
14	VALVE, WATER INLET
15	SCREW
16	HARNESS, VALVE
17	ASSEMBLY, SPEAKER
18	MAY 97787
19	ASSEMBLY, DISPENSER BEZEL (WHITE)
20	SCREW, DISPENSER HOUSING MOUNTING
21	MAY W10298887
