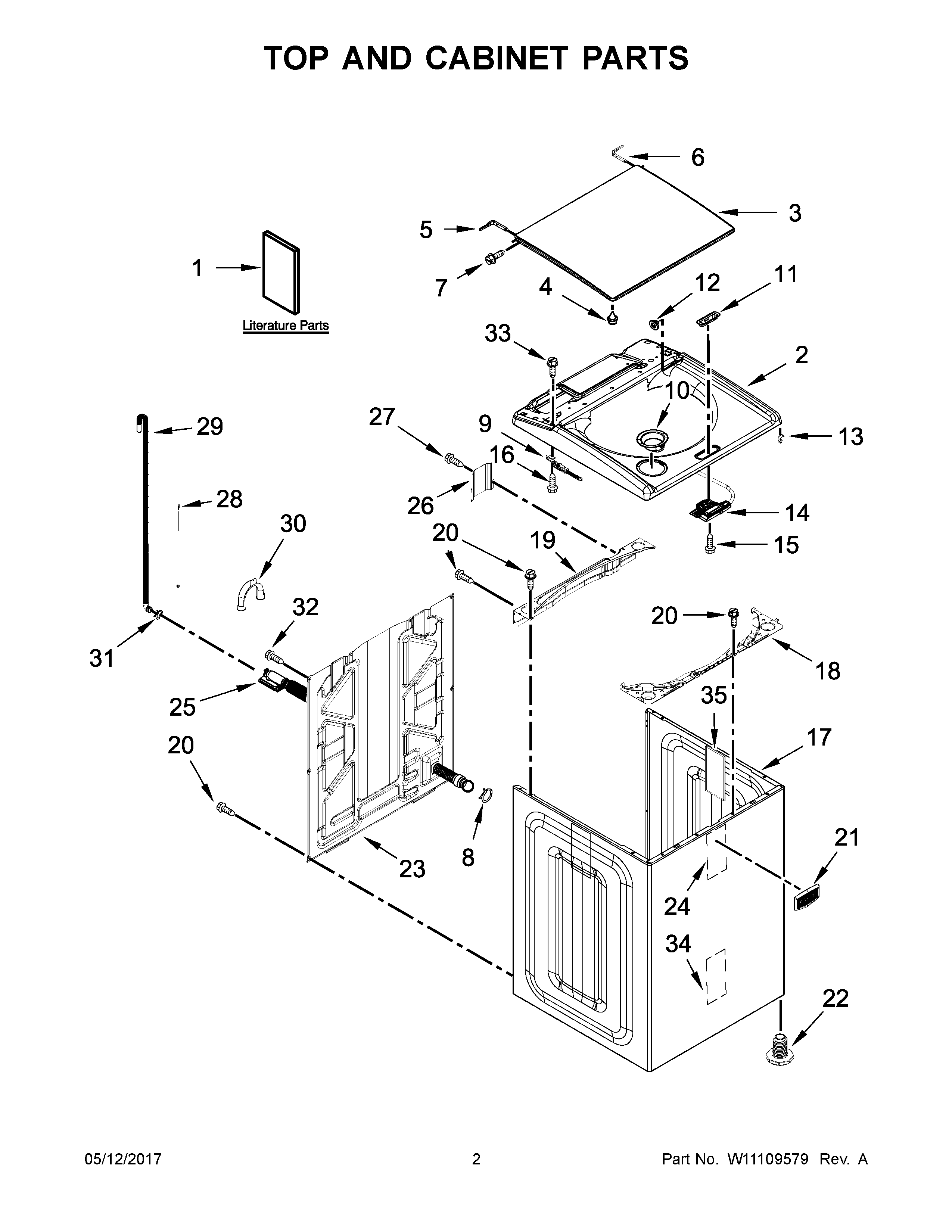

MVWB835DW2 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	MAY W11040359
1E	DRAIN PAN INSTRUCTIONS
1D	QUICK START GUIDE
1C	MAY W10911978
1	INSTALLATION INSTRUCTIONS
1B	TECH SHEET
2	TOP (WHITE)
3	ASSEMBLY, LID (GLASS) (WHITE)
4	BUMPER, LID
5	HINGE, WIRE (LEFT)
6	HINGE, WIRE (RIGHT)
7	SCREW
8	MAY W10142630
9A	HINGE, LID (RIGHT)
9	HINGE, LID (LEFT)
10	DISPENSER, BLEACH (WHITE)
11	BEZEL, LID LOCK (WHITE)
12	SPACER, LID HINGE (WHITE)
13	Clip, Wire (4)
14	ASSEMBLY, LID LOCK (WHITE)
15	SCREW
16	Screw
17	CABINET (WHITE)
18	BRACE, CABINET TOP – FRONT (WHITE)
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	BADGE
22	FOOT ASSEMBLY, LEVELING
23	PANEL, REAR
24	MAY W10414221
25	HOSE, INTERNAL DRAIN
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
32	SCREW
33	SCREW
34	ABSORBER, IMPACT
35	MAY 8564458
