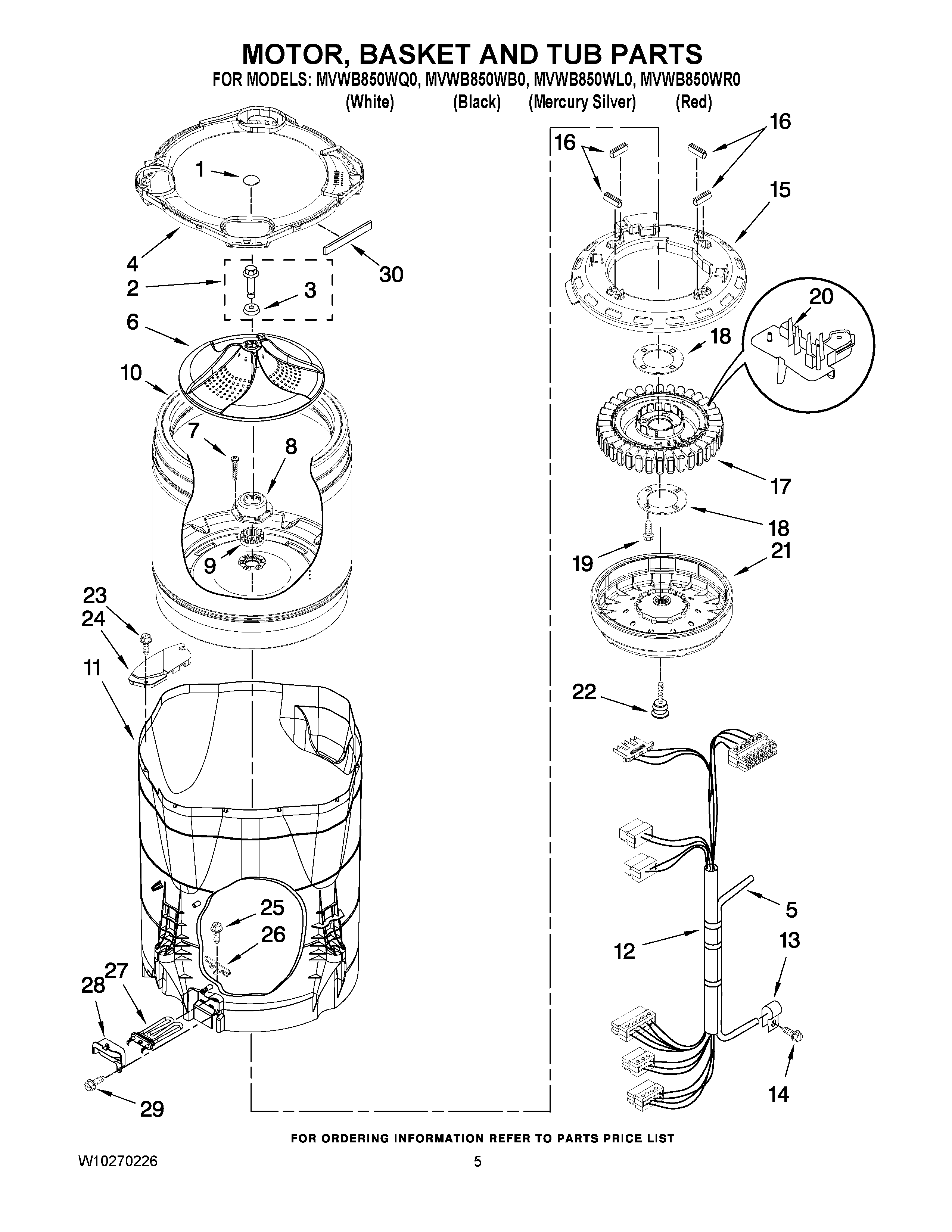

MVWB850WB0 03 – MOTOR, BASKET AND TUB PARTS

MVWB850WB0 03 – MOTOR, BASKET AND TUB PARTS

Written by

in

MVWB850WB0 03 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY W10149460
2MAY W10076270
3MAY W10076260
4MAY W10251271
5MAY 8572540
6MAY W10141017
7SCREW
8HUB, BASKET-DRIVEN
9HUB, BASKET DRIVER
10MAY W10118182
11MAY W10157673
12MAY W10122723
13CLAMP, CABLE
14Screw
15SHIELD, DRIVE MOTOR
16MAY 8565172
17MAY 8565170
18PLATE, STATOR
19SCREW
20MAY W10137685
21ROTOR, MAIN DRIVE MOTOR
22LINER (NOT A SERVICEABLE PART)
23Screw
24MAY W10222008
25SCREW
26MAY W10134571
27MAY W10121071
28MAY W10140727
29SCREW
30MAY W10205824
