MVWB850WB1 04 – PUMP PARTS – Aparts

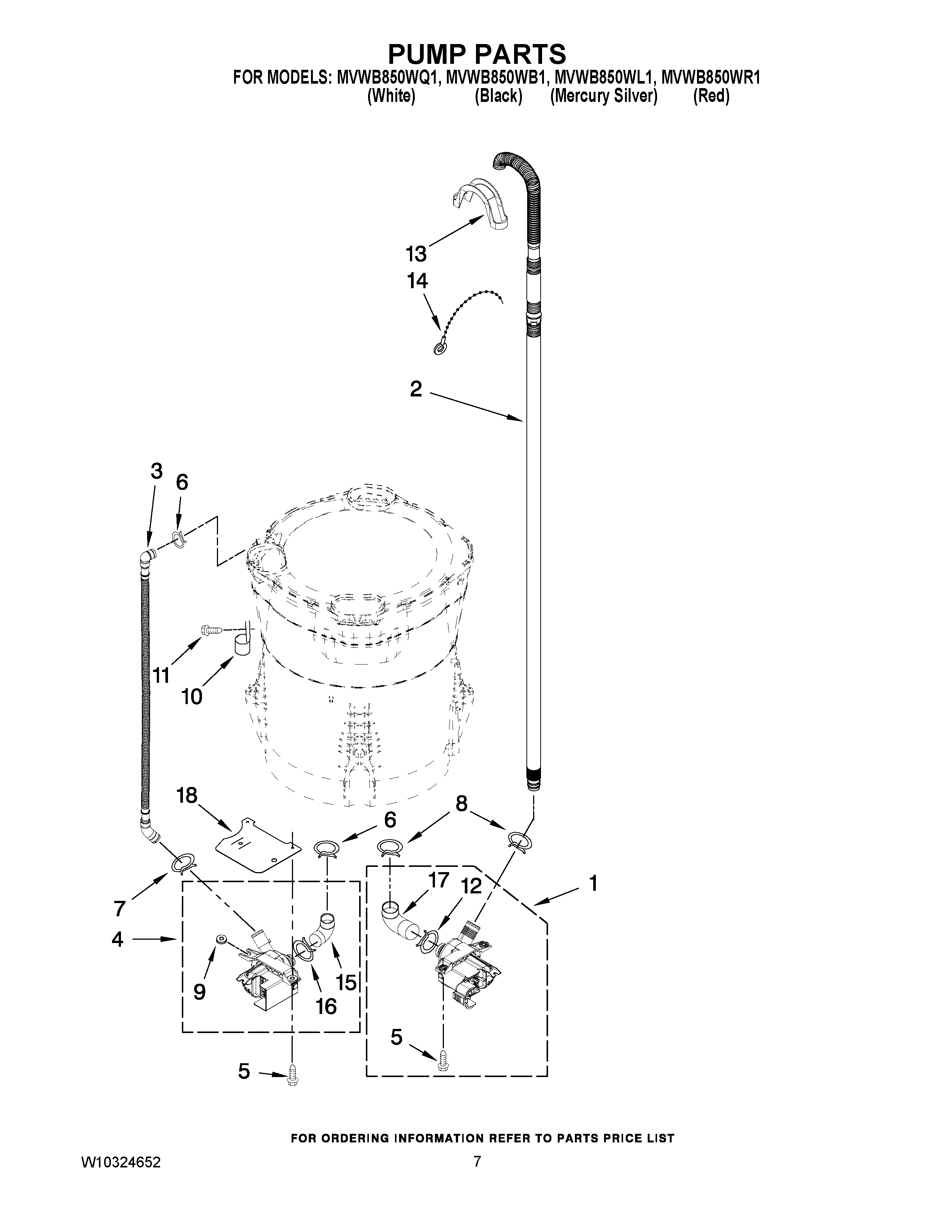

MVWB850WB1 04 – PUMP PARTS

Products

Position	Product
1	MAY W10281682
2	MAY W10236686
3	MAY 8543774
4	MAY W10049400
5	SCREW
6	CLAMP, DRAIN HOSE
7	HOSE CLAMP
8	MAY 8317496
9	MAY 8182771
10	MAY 8534021
11	SCREW
12	MAY 8182768
13	MAY 8576642
14	MAY 3347868
15	MAY 8182769
16	MAY 8182770
17	MAY 8182767
18	MAY 8578572
