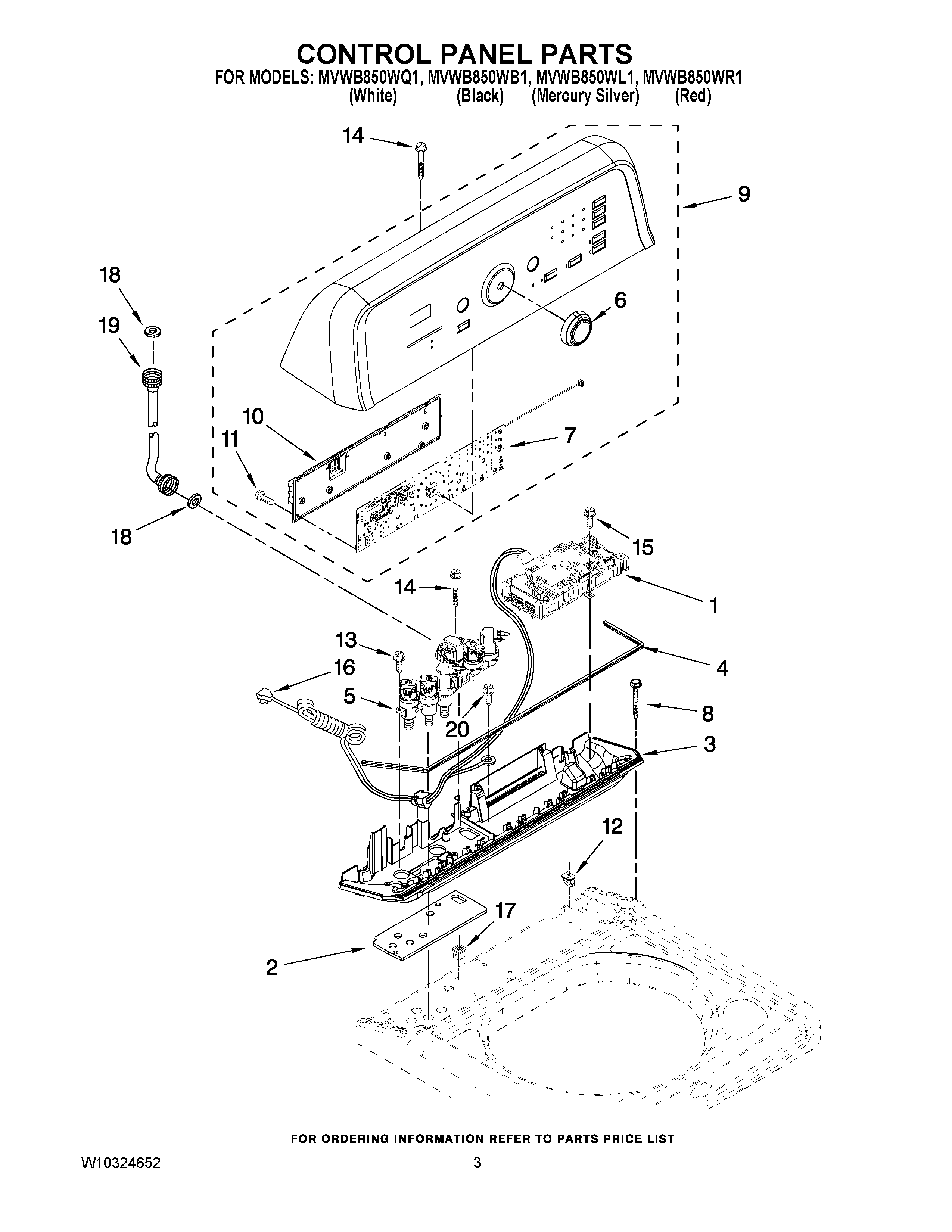

MVWB850WQ1 02 – CONTROL PANEL PARTSadmin2025-04-26T13:08:35+00:00MVWB850WQ1 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10272495 |
| 2 | MAY W10141695 |
| 3 | Tray Assembly, Console (Includes Items 2 & 4) (White) |
| 3 | Tray Assembly, Console (Includes Items 2 & 4) (Grey) |
| 3 | MAY W10110304 |
| 4 | MAY W10141693 |
| 5 | MAY W10291036 |
| 6 | MAY W10051126 |
| 7 | MAY W10260184 |
| 8 | SCREW |
| 9 | MAY W10090755 |
| 9 | CONSOLE (MERCURY SILVER) |
| 9 | MAY W10090762 |
| 9 | MAY W10090760 |
| 10 | COVER, REAR |
| 11 | Screw, 6-19 x 3/64 |
| 12 | NUT, PUSH IN |
| 13 | SCREW |
| 14 | SCREW |
| 15 | SCREW |
| 16 | MAY W10299984 |
| 17 | NUT, PUSH-IN |
| 18 | ACCESSORY PARTS, WASHER, HOSE |
| 19 | Hose, Water Inlet (Cold Water) |
| 19 | Hose, Water Inlet (Hot Water) |
| 20 | SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8) |
