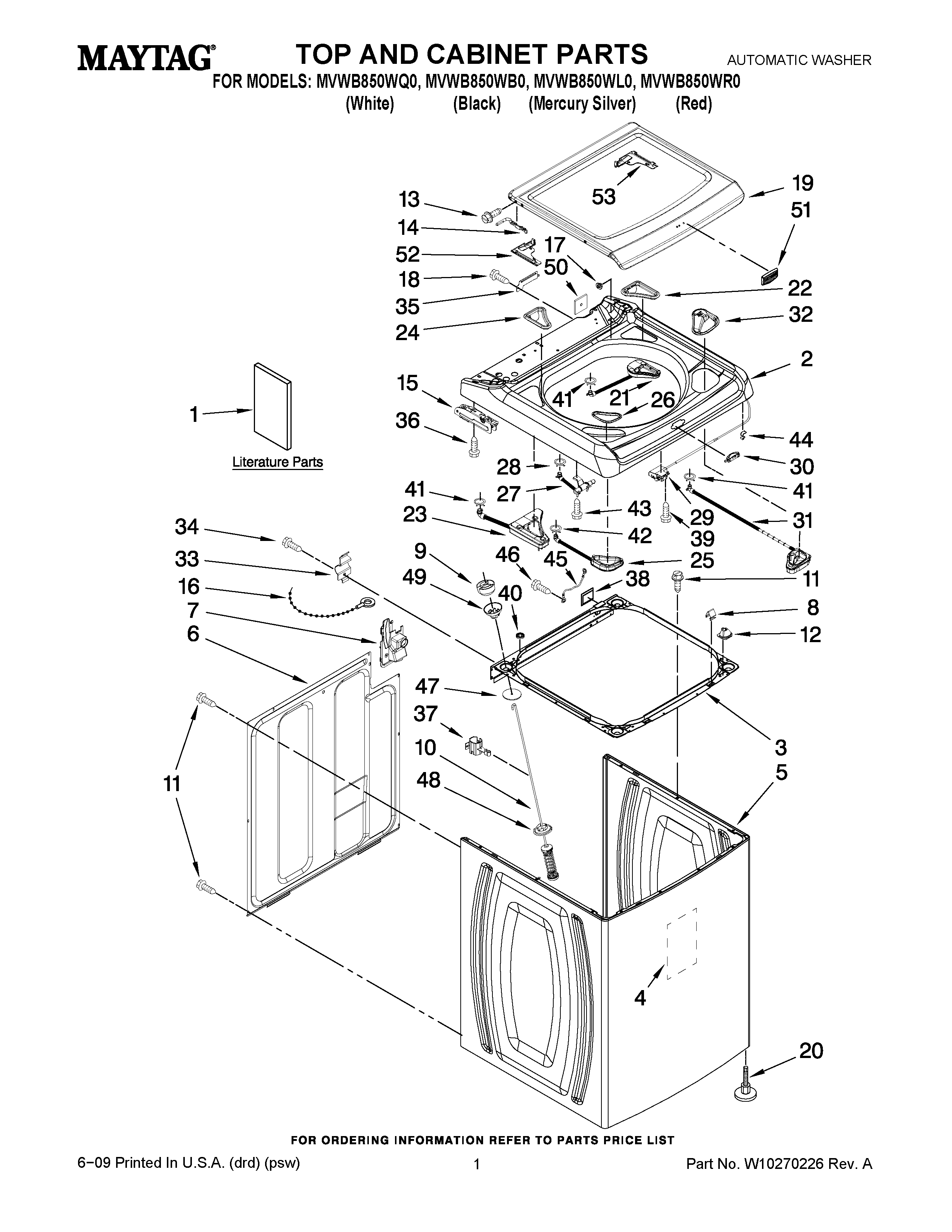

MVWB850WR0 01 – TOP AND CABINET PARTS

MVWB850WR0 01 – TOP AND CABINET PARTS

Written by

in

MVWB850WR0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1IMPROVED WASH PERFORMANCE SHEET (SPANISH)
1MAY W10092823
1MAY W10093831
1MAY W10092820
1MAY W10092822
1IMPROVED WASH PERFORMANCE SHEET (ENGLISH/FRENCH)
1INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1MAY W10240439
2TOP (MERCURY SILVER)
2MAY W10093801
2MAY W10110834
2MAY W10141677
3FRAME ASSEMBLY, CABINET TOP (INCLUDES ITEM 38)
4Cabinet-Damper, Sound (3)
5MAY W10045598
5CABINET (WHITE)
5CABINET (MERCURY SILVER)
5MAY W10093799
6MAY 8566090
7MAY W10160572
8LOCK, TOP-FRONT
9BALL, SUSPENSION (SET OF 4 – (INCLUDES ITEM 49))
10DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES ITEMS 9, 47, 48 & 49)
11MAY 1157158
12MAY W10042120
13SCREW, LID HINGE
14MAY 8563964
15MAY W10141682
15MAY W10141681
16CABLE TIE
17MAY W10119519
18SCREW
19Lid, Glass Assembly (White)
19MAY W10093823
19MAY W10093818
19LID, GLASS ASSEMBLY (MERCURY SILVER)
20MAY W10240448
21MAY W10172146
22BEZEL, FABRIC SOFTENER DISPENSER (GRAY)
22Bezel, Fabric Softener Dispenser (White)
23Dispenser, Bleach
24BEZEL, BLEACH DISPENSER (JADE GRAY)
24Bezel, Bleach Dispenser (White)
25MAY W10172154
26BEZEL, DETERGENT DISPENSER (GRAY)
26Bezel, Detergent Dispenser (White)
27MAY W10106990
29MAY W10059230
30Bezel, Lid Lock (White)
30BEZEL, LID LOCK (GRAY)
31MAY W10170964
32MAY W10139794
32BEZEL, STAIN REMOVER DISPENSER (JADE GRAY)
33MAY 8564456
34SCREW
35MAY 8563941
36Screw
37MAY 8543784
38MAY 8578386
39SCREW
40MAY 8576476
41MAY 370451
42MAY 371503
43SCREW, DISPENSER HOUSING MOUNTING
44Clip, Wire (4)
45MAY 8281736
46Screw, 10-32 x 5/8
47MAY 8577896
48MAY 8564017
49MAY W10167599
50TOP, FOAM SEAL
51MAY W10153170
52Cap-Hinge, Left (White)
52CAP-HINGE, LEFT (JADE GRAY)
53CAP-HINGE, RIGHT (JADE GRAY)
53Cap-Hinge, Right (
