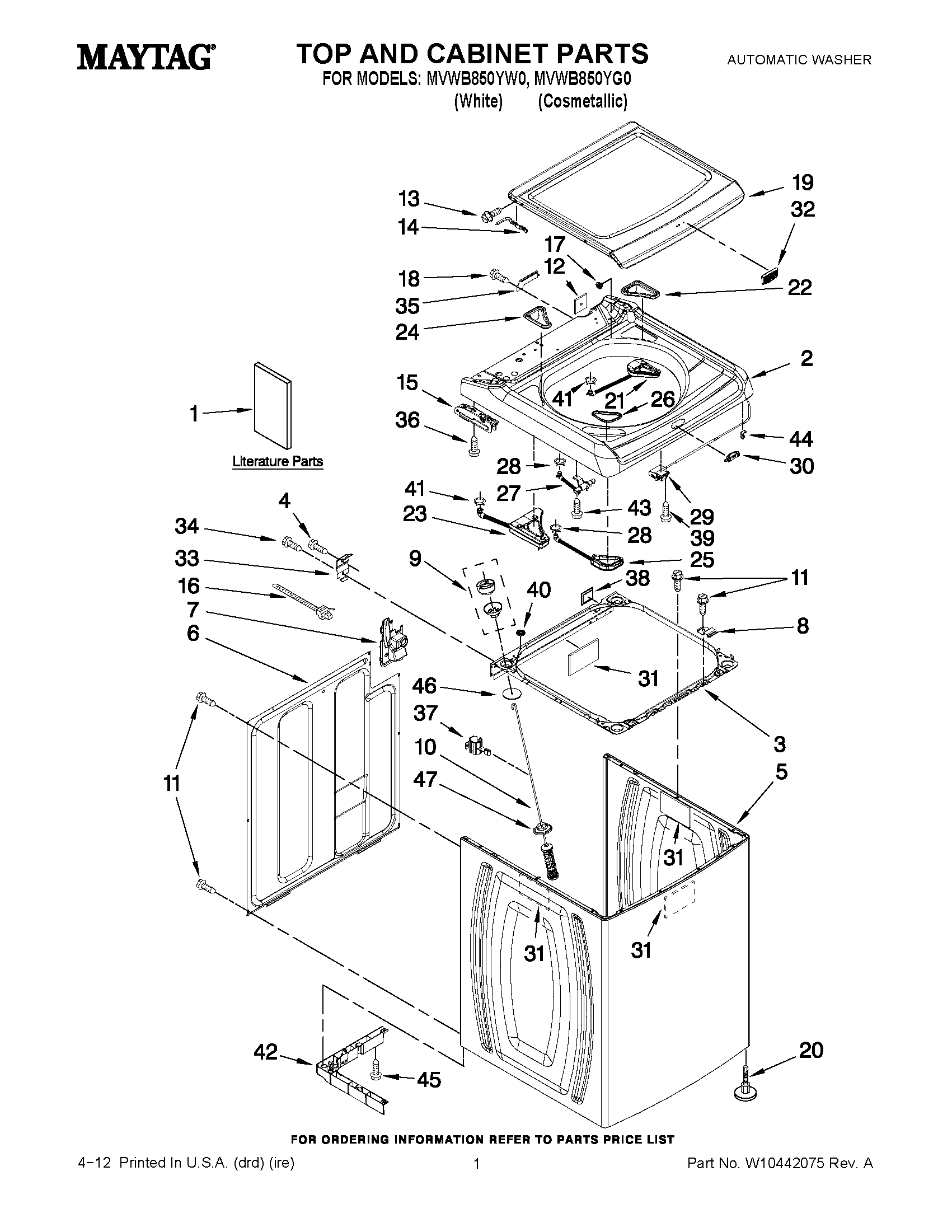

MVWB850YW0 01 – TOP AND CABINET PARTSadmin2025-04-26T13:09:58+00:00MVWB850YW0 01 – TOP AND CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10438566 |
| 1 | MAY W10413079 |
| 1 | MAY W10441032 |
| 1 | MAY W10403990 |
| 1 | MAY W10410359 |
| 1 | INSTALLATION INSTRUCTIONS |
| 2 | TOP (WHITE) |
| 2 | MAY W10419608 |
| 3 | MAY W10386349 |
| 4 | Screw, 10-32 x 5/8 |
| 5 | MAY W10304158 |
| 5 | CABINET (WHITE) |
| 6 | MAY 8566090 |
| 7 | MAY W10160572 |
| 8 | MAY W10248088 |
| 9 | BALL (SET OF 4 - INCLUDES SUSPENSION BUSHINGS) |
| 10 | MAY W10368627 |
| 11 | MAY 1157158 |
| 12 | TOP, FOAM SEAL |
| 13 | SCREW |
| 14 | MAY W10389420 |
| 14 | MAY W10389421 |
| 15 | MAY W10354272 |
| 15 | MAY W10354271 |
| 16 | CABLE TIE |
| 17 | MAY W10119519 |
| 18 | SCREW |
| 19 | MAY W10364767 |
| 19 | MAY W10426817 |
| 20 | MAY W10363890 |
| 21 | MAY W10172146 |
| 22 | Bezel, Fabric Softener Dispenser (White) |
| 22 | BEZEL, FABRIC SOFTENER DISPENSER (GRAY) |
| 23 | MAY W10187307 |
| 24 | Bezel, Bleach Dispenser (White) |
| 24 | BEZEL, BLEACH DISPENSER (JADE GRAY) |
| 25 | MAY W10172154 |
| 26 | Bezel, Detergent Dispenser (White) |
| 26 | BEZEL, DETERGENT DISPENSER (GRAY) |
| 27 | MAY W10106990 |
| 28 | MAY 371503 |
| 29 | MAY W10059230 |
| 30 | Bezel, Lid Lock (White) |
| 30 | BEZEL, LID LOCK (GRAY) |
| 31 | MAY 8564458 |
| 32 | MAY W10323735 |
| 33 | MAY W10432012 |
| 34 | SCREW |
| 35 | MAY 8563941 |
| 36 | Screw |
| 37 | MAY 8543784 |
| 38 | MAY 8578386 |
| 39 | SCREW |
| 40 | MAY 8576476 |
| 41 | MAY 370451 |
| 42 | MAY W10378013 |
| 42 | MAY W10370996 |
| 42 | MAY W10370995 |
| 42 | MAY W10378012 |
| 43 | SCREW, DISPENSER HOUSING MOUNTING |
| 44 | Clip, Wire (4) |
| 45 | MAY W10406220 |
| 46 | MAY 8577896 |
| 47 | MAY 8564017 |
