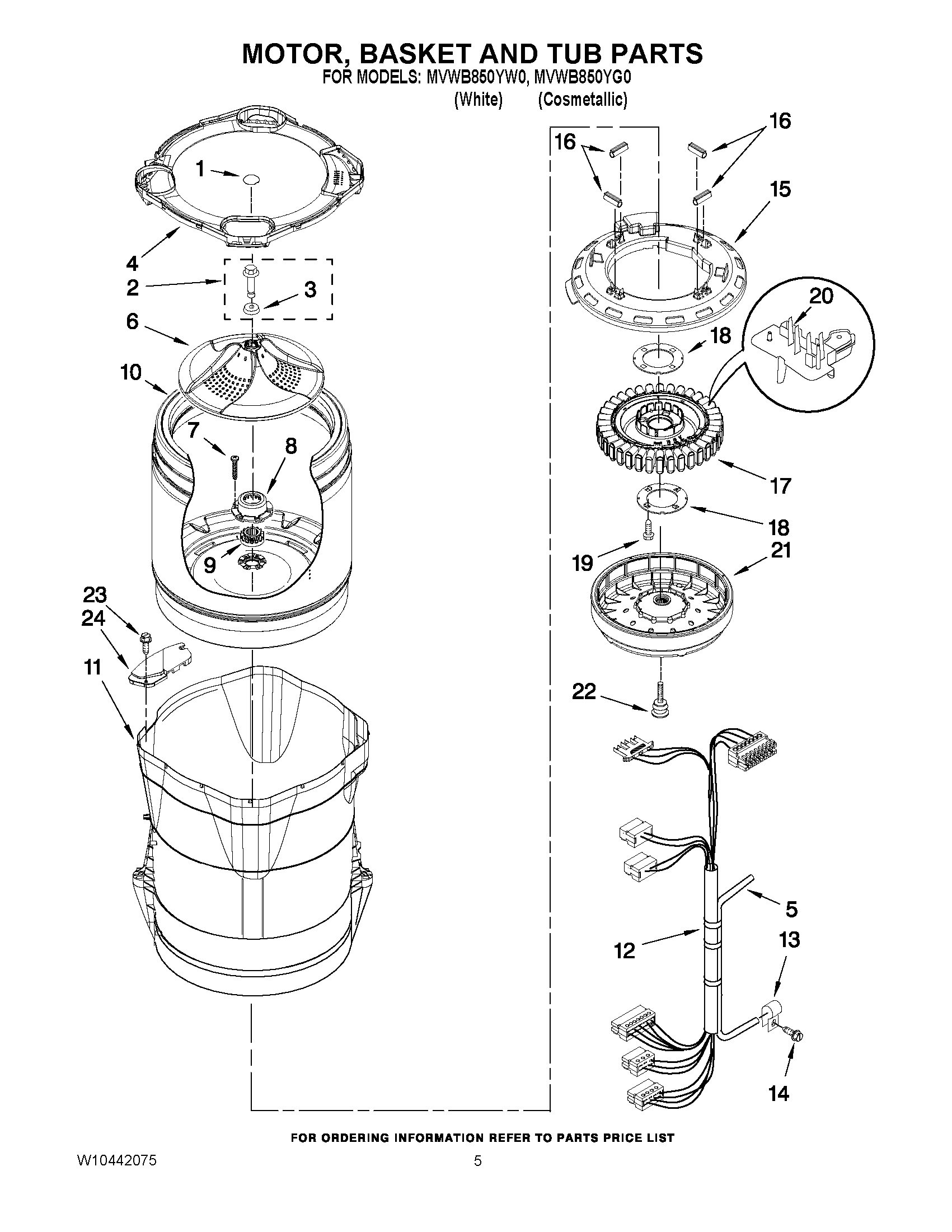

MVWB850YW0 03 – MOTOR, BASKET AND TUB PARTS

MVWB850YW0 03 – MOTOR, BASKET AND TUB PARTS

Written by

in

MVWB850YW0 03 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY W10352675
2MAY W10076270
3MAY W10076260
4MAY W10362224
5MAY W10297449
6MAY W10357576
7SCREW
8HUB, BASKET-DRIVEN
9HUB, BASKET DRIVER
10MAY W10356924
11MAY W10381078
12MAY W10297447
13CLAMP, CABLE
14Screw
15SHIELD, DRIVE MOTOR
16MAY 8565172
17MAY W10419333
18PLATE, STATOR
19SCREW
20MAY W10178988
21ROTOR, MAIN DRIVE MOTOR
22LINER (NOT A SERVICEABLE PART)
23Screw
24MAY W10222008
