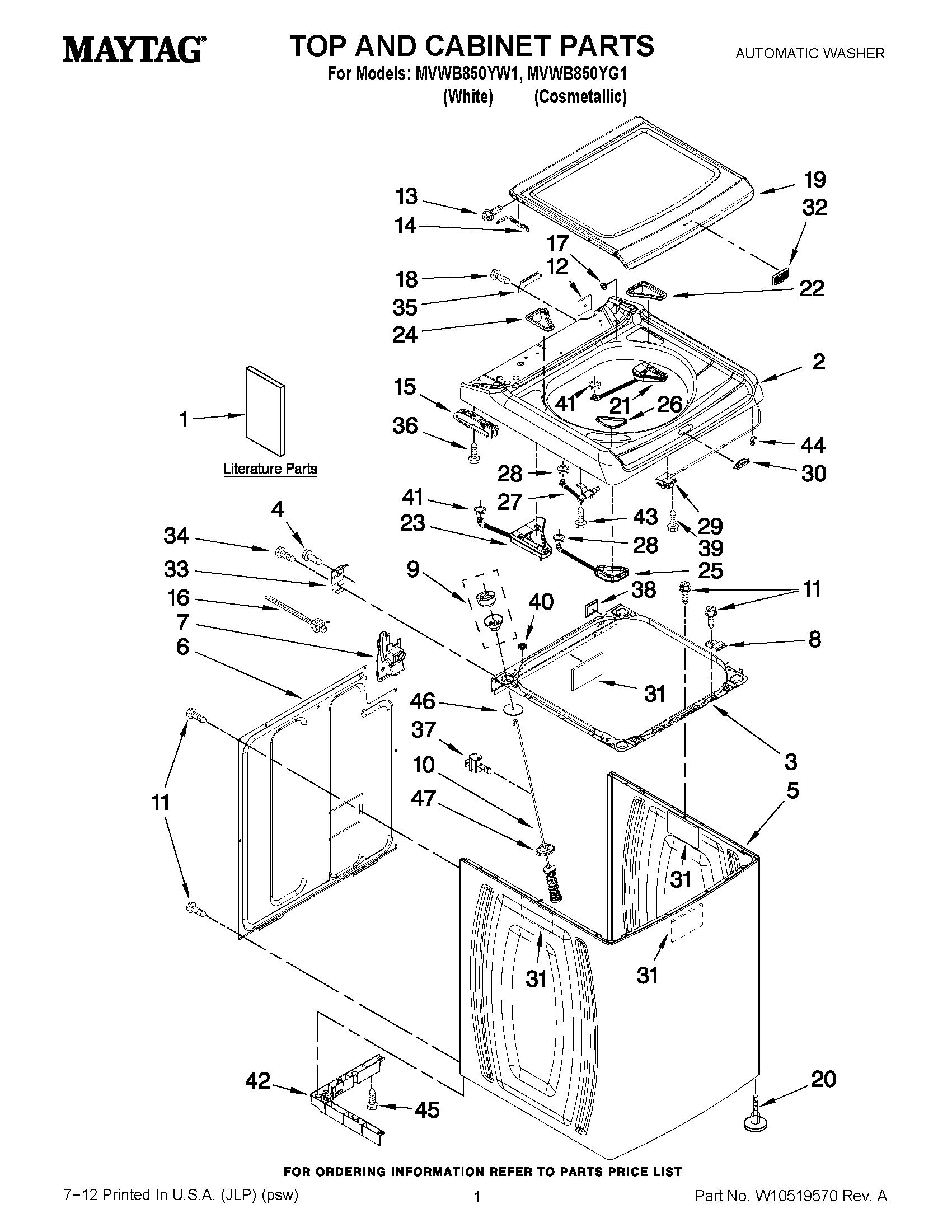

MVWB850YW1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	MAY W10403990
1	MAY W10441032
1	MAY W10438566
1	MAY W10413079
2	MAY W10419608
2	TOP (WHITE)
3	MAY W10386349
4	Screw, 10-32 x 5/8
5	CABINET (WHITE)
5	MAY W10304158
6	MAY 8566090
7	MAY W10160572
8	MAY W10248088
9	BALL (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
10	MAY W10368627
11	MAY 1157158
12	TOP, FOAM SEAL
13	MAY W10442074
14	MAY W10389420
14	MAY W10389421
15	MAY W10492005
15	MAY W10492004
16	CABLE TIE
17	MAY W10315174
18	SCREW
19	MAY W10496560
19	MAY W10494877
20	MAY W10363890
21	MAY W10172146
22	BEZEL, FABRIC SOFTENER DISPENSER (GRAY)
22	Bezel, Fabric Softener Dispenser (White)
23	MAY W10187307
24	BEZEL, BLEACH DISPENSER (JADE GRAY)
24	Bezel, Bleach Dispenser (White)
25	MAY W10172154
26	Bezel, Detergent Dispenser (White)
26	BEZEL, DETERGENT DISPENSER (GRAY)
27	MAY W10106990
28	MAY 371503
29	MAY W10059230
30	Bezel, Lid Lock (White)
30	BEZEL, LID LOCK (GRAY)
31	MAY 8564458
32	MAY W10323735
33	MAY W10432012
34	SCREW
35	MAY 8563941
36	Screw
37	MAY 8543784
38	MAY 8578386
39	SCREW
40	MAY 8576476
41	MAY 370451
42	MAY W10370995
42	MAY W10378012
42	MAY W10378013
42	MAY W10370996
43	SCREW, DISPENSER HOUSING MOUNTING
44	Clip, Wire (4)
45	MAY W10406220
46	MAY 8577896
47	MAY 8564017
