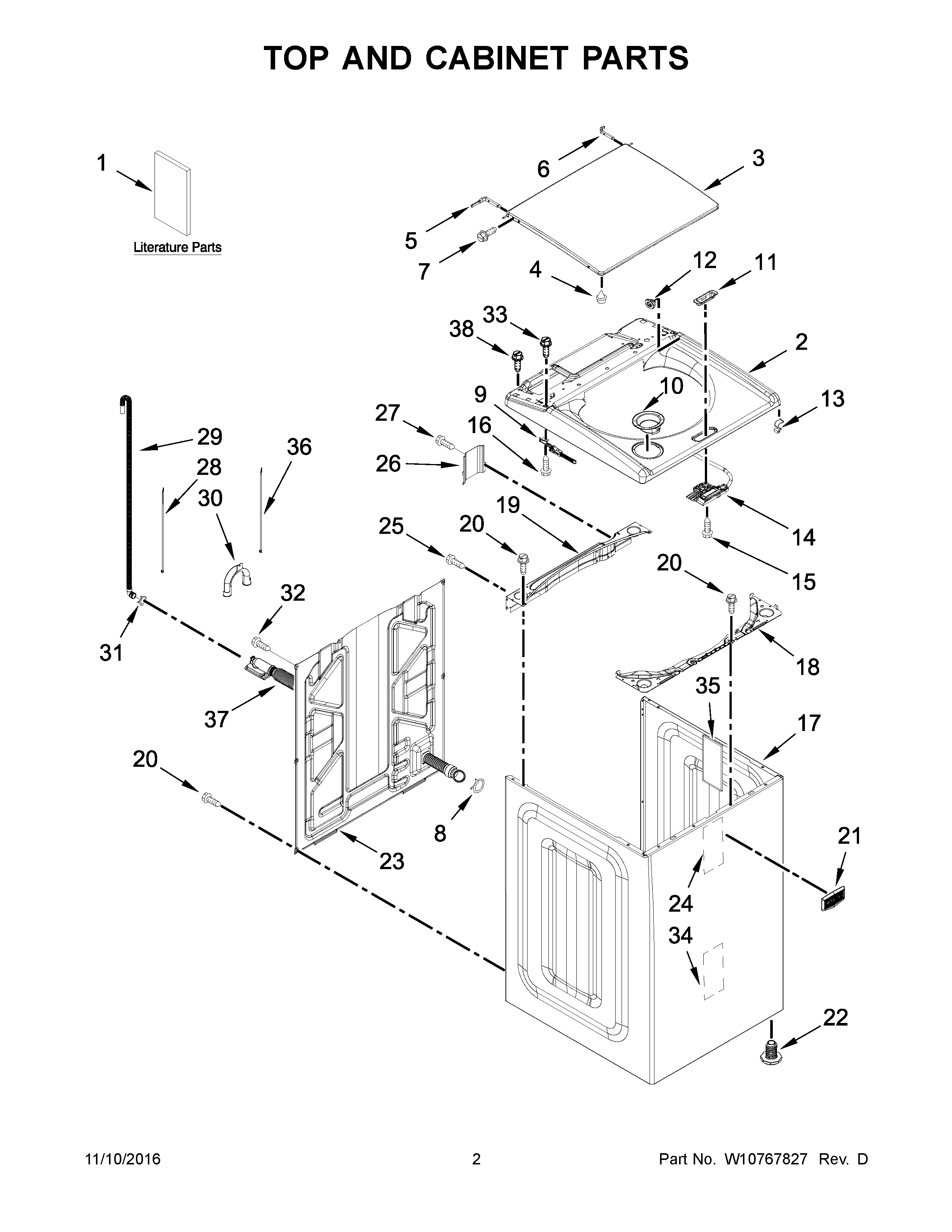

MVWB855DC0 02 – TOP AND CABINET PARTS

Products

Position	Product
1C	TECH SHEET
1	INSTRUCTIONS, INSTALLATION
1B	MAY W10607442
1D	MAY W10062923
1A	QUICK START GUIDE
2A	TOP (CHROME SHADOW)
2	TOP (WHITE)
3	MAY W10724672
4	BUMPER, LID
5	HINGE, WIRE (LEFT)
6	HINGE, WIRE (RIGHT)
7	SCREW
8	MAY W10142630
9A	HINGE, LID (RIGHT)
9	HINGE, LID (LEFT)
10A	DISPENSER, BLEACH (CHROME SHADOW)
10	DISPENSER, BLEACH (WHITE)
11	BEZEL, LID LOCK (WHITE)
11A	BEZEL, LID LOCK (CHROME SHADOW)
12A	SPACER, LID HINGE (CHROME SHADOW)
12	SPACER, LID HINGE (WHITE)
13	Clip, Wire (4)
14	ASSEMBLY, LID LOCK (WHITE)
14A	ASSEMBLY, LID LOCK (CHROME SHADOW)
15	SCREW
16	Screw
17	CABINET (WHITE)
17A	CABINET (CHROME SHADOW)
18A	BRACE, CABINET TOP – FRONT (CHROME SHADOW)
18	BRACE, CABINET TOP – FRONT (WHITE)
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	BADGE
22	FOOT ASSEMBLY, LEVELING
23	PANEL, REAR
24	MAY W10414221
25	SCREW
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
32	SCREW
33	SCREW
34	ABSORBER, IMPACT
35	MAY 8564458
36	MAY W10267532
37	HOSE, INTERNAL DRAIN
38	SCREW,8-18 X 3/8
