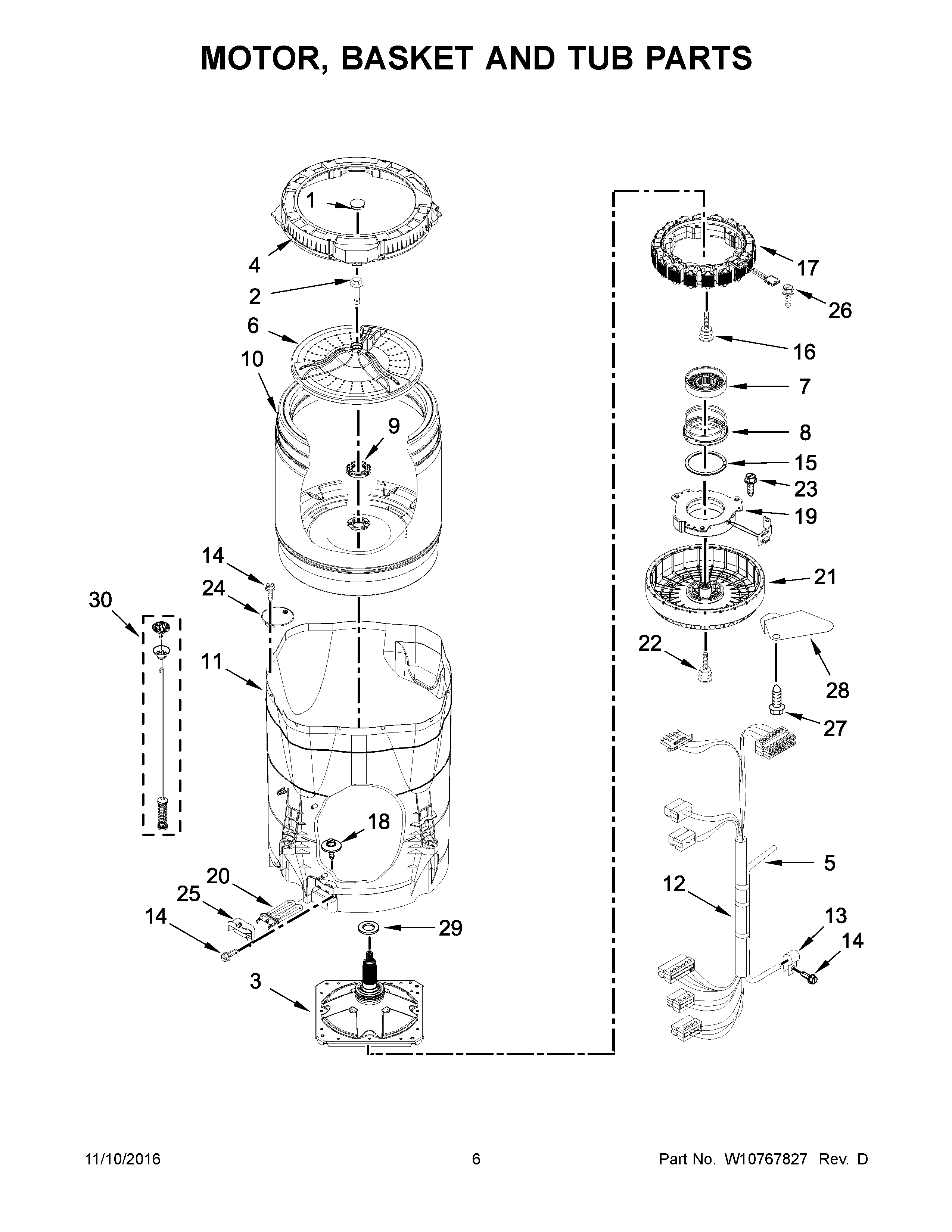

MVWB855DC0 04 – MOTOR, BASKET AND TUB PARTSadmin2025-04-26T13:08:29+00:00MVWB855DC0 04 – MOTOR, BASKET AND TUB PARTS
Products
| Position | Product |
|---|
| 1 | CAP, IMPELLER |
| 2 | SCREW |
| 3 | ASSEMBLY, DRIVE |
| 4 | TUB RING |
| 5 | HOSE PRESSURE SWITCH |
| 6 | IMPELLER (WASHPLATE) |
| 7 | SLIDER |
| 8 | ASSEMBLY, SPRING |
| 9 | NUT, SPIN TUBE |
| 10 | BASKET ASSEMBLY |
| 11 | TUB |
| 12 | MAY W10780062 |
| 13 | CLAMP, CABLE |
| 14 | SCREW |
| 15 | RING, SNAP |
| 16 | SCREW |
| 17 | STATOR, MOTOR |
| 18 | SCREW |
| 19 | ASSEMBLY, CLUTCH |
| 20 | MAY W10325894 |
| 21 | ROTOR, MOTOR |
| 22 | SCREW |
| 23 | SCREW |
| 24 | HOOD, DUAL PUMP |
| 25 | MAY W10297450 |
| 26 | SCREW, DISPENSER HOUSING MOUNTING |
| 27 | MAY W10567155 |
| 28 | HARNESS SHIELD - MOTOR |
| 29 | WASHER, THRUST |
| 30 | DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES SUSPENSION BUSHINGS AND SUSPENSION BALLS) |
