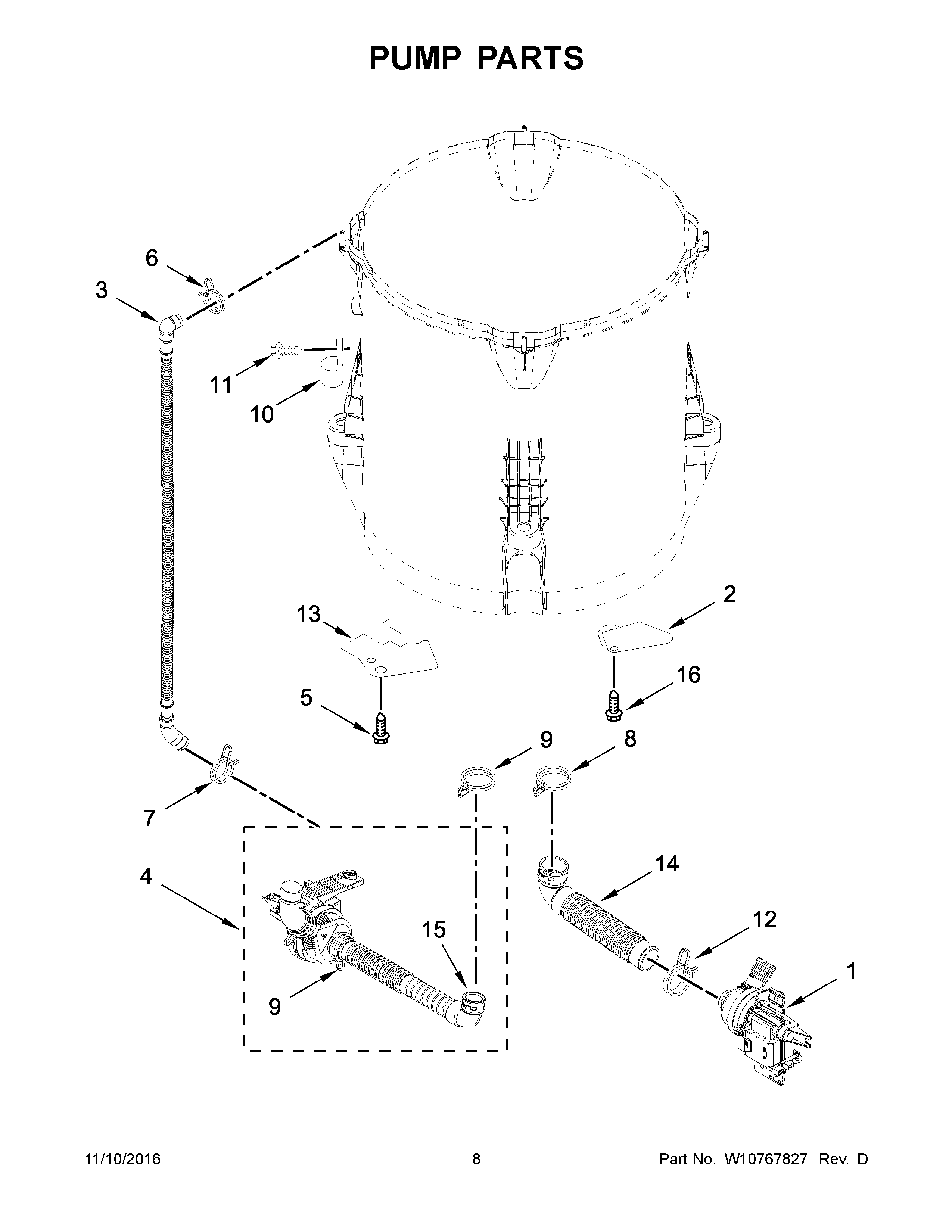

MVWB855DC0 05 – PUMP PARTS

Products

Position	Product
1	MAY W10581874
2	MAY W10637932
3	HOSE, RECIRCULATION
4	MAY W10657903
5	SCREW
6	CLAMP, HOSE
7	HOSE CLAMP
8	MAY W10142630
9	CLAMP, HOSE
10	MAY 8534021
11	SCREW
12	MAY 8317496
13	SHIELD, RECIRCULATION PUMP
14	HOSE, TUB TO PUMP
15	HOSE - RECIRCULATION (TUB TO PUMP)
16	Screw
