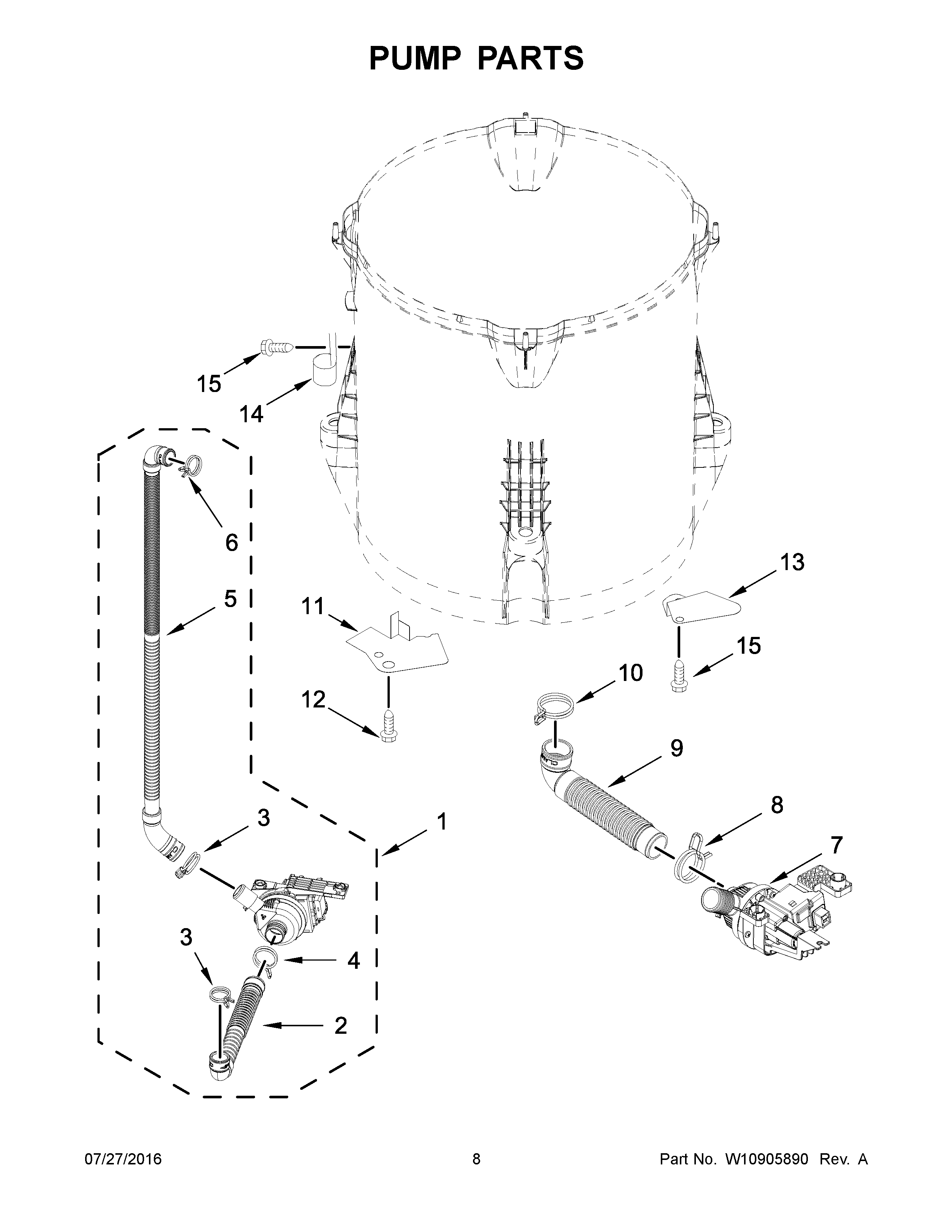

MVWB855DC1 05 – PUMP PARTS

Products

Position	Product
1	PUMP ASSEMBLY, RECIRCULATION
2	HOSE - RECIRCULATION (TUB TO PUMP)
3	HOSE CLAMP
4	CLAMP, HOSE
5	HOSE, RECIRCULATION
6	CLAMP, HOSE
7	PUMP ASSEMBLY, DRAIN
8	MAY 8317496
9	HOSE, TUB TO PUMP
10	MAY W10142630
11	SHIELD, RECIRCULATION PUMP
12	SCREW
13	MAY W10637932
14	CLAMP, CABLE
15	SCREW
