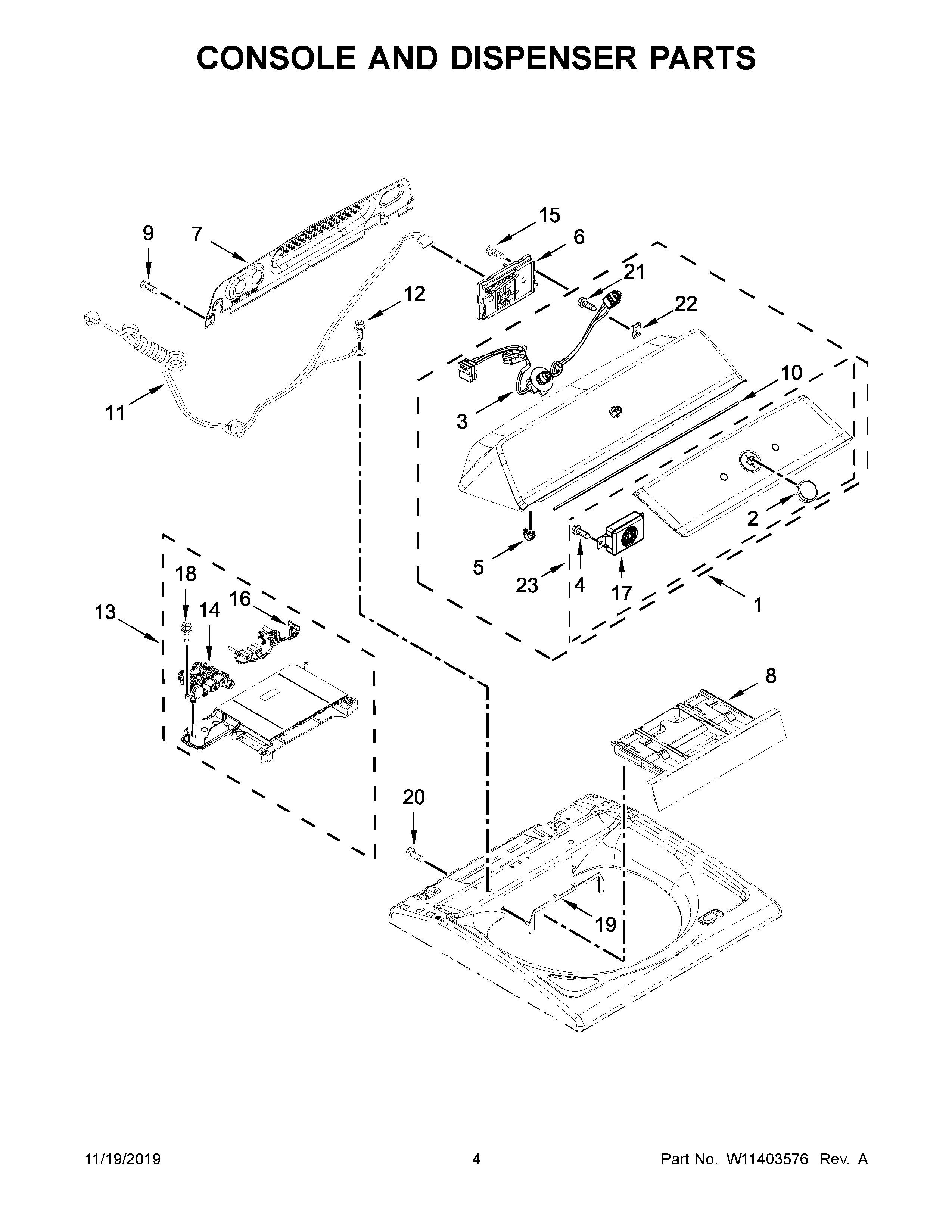

MVWB855DC4 03 – CONSOLE AND DISPENSER PARTS

MVWB855DC4 03 – CONSOLE AND DISPENSER PARTS

Written by

in

MVWB855DC4 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1MAY W11035010
2ASSEMBLY, CONTROL KNOB (CHROME)
3HARNESS, UI
4MAY 9740849
5MAY 8312709
6MAY W11266625
7PANEL, CONSOLE REAR COVER
8ASSEMBLY, DISPENSER DRAWER (CHROME SHADOW)
9SCREW
10SEAL, CONSOLE
11CORD, POWER
12Screw, 10-32 x 5/8
13ASSEMBLY, HOUSING
14VALVE, WATER INLET
15SCREW
16HARNESS, VALVE
17ASSEMBLY, SPEAKER
18MAY 97787
19ASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
20SCREW, DISPENSER HOUSING MOUNTING
21MAY 12990204
22NUT, "U"
23MAY W11035069
