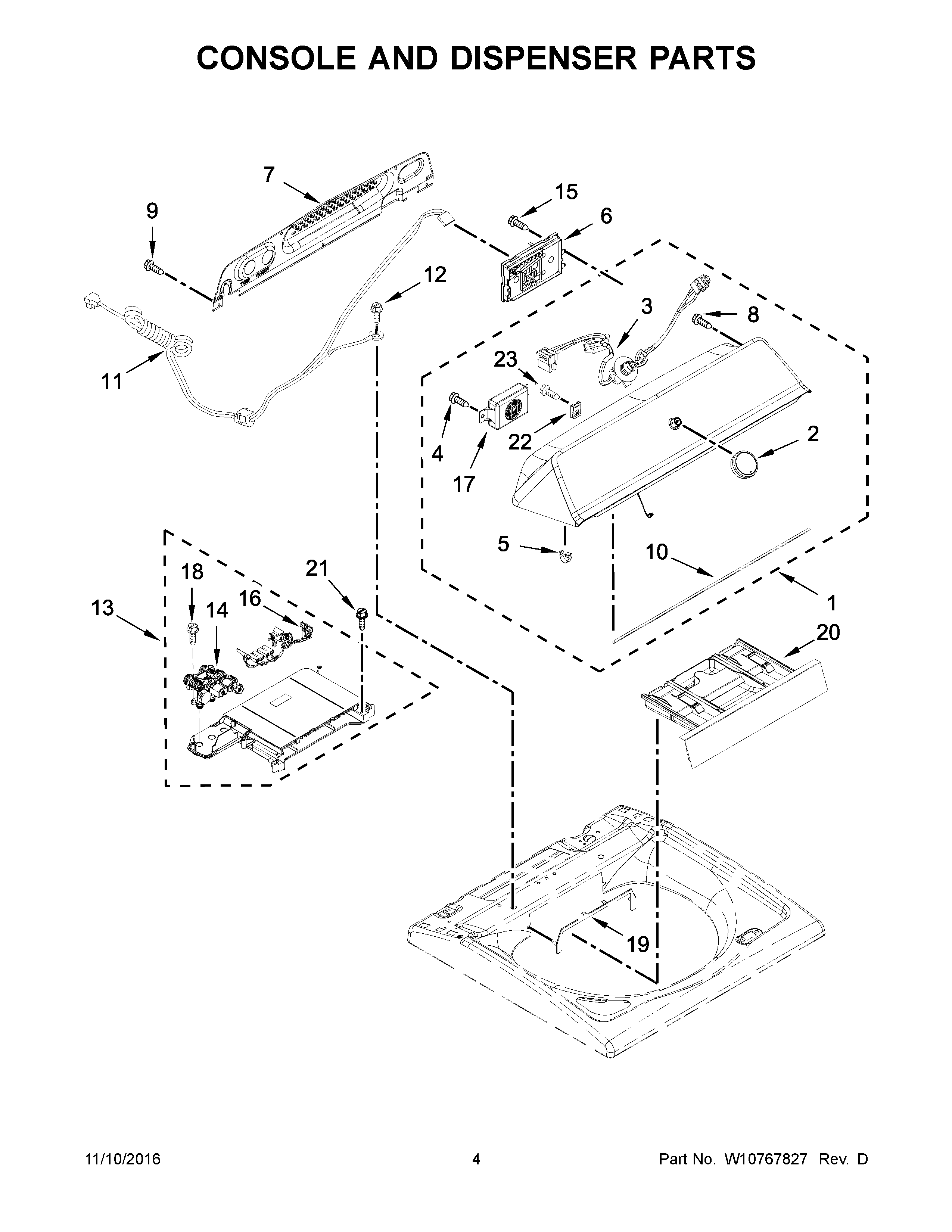

MVWB855DW0 03 – CONSOLE AND DISPENSER PARTS

Written by

Products

Position	Product
1	MAY W10650405
1A	CONSOLE (CHROME SHADOW)
2	ASSEMBLY, CONTROL KNOB (CHROME)
3	HARNESS, UI
4	MAY 9740849
5	MAY 8312709
6	MAY W10625690
7	PANEL, CONSOLE REAR COVER
8	MAY 12990204
9	MAY 1157158
10	SEAL, CONSOLE
11	CORD, POWER
12	Screw, 10-32 x 5/8
13	ASSEMBLY, HOUSING
14	VALVE, WATER INLET
15	SCREW
16	HARNESS, VALVE
17	ASSEMBLY, SPEAKER
18	MAY 97787
19A	ASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
19	ASSEMBLY, DISPENSER BEZEL (WHITE)
20A	ASSEMBLY, DISPENSER DRAWER (CHROME SHADOW)
20	ASSEMBLY, DISPENSER DRAWER (WHITE)
21	Screw (3)
22	NUT, "U"
23	MAY 489470
