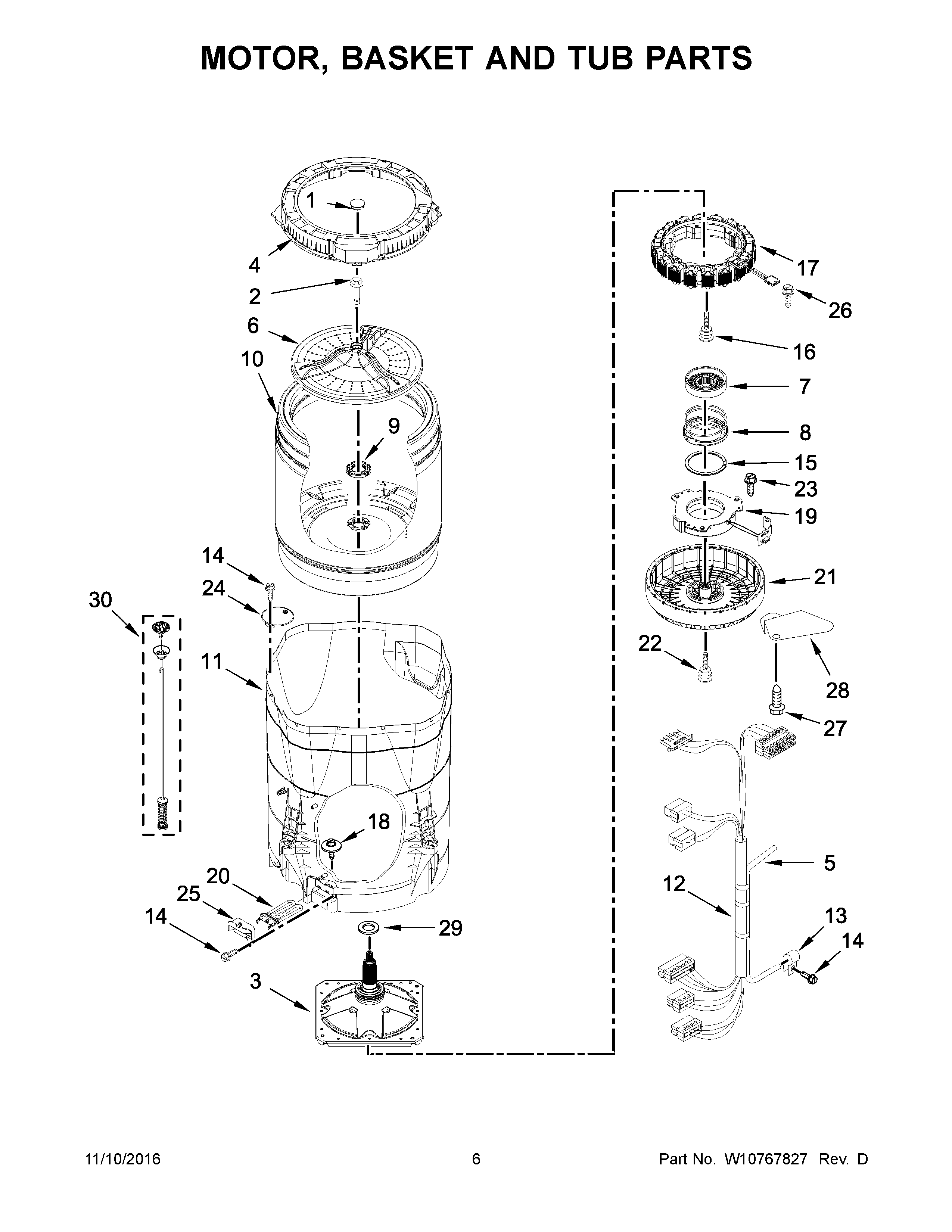

MVWB855DW0 04 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	CAP, IMPELLER
2	SCREW
3	ASSEMBLY, DRIVE
4	TUB RING
5	HOSE PRESSURE SWITCH
6	IMPELLER (WASHPLATE)
7	SLIDER
8	ASSEMBLY, SPRING
9	NUT, SPIN TUBE
10	BASKET ASSEMBLY
11	TUB
12	MAY W10780062
13	CLAMP, CABLE
14	SCREW
15	RING, SNAP
16	SCREW
17	STATOR, MOTOR
18	SCREW
19	ASSEMBLY, CLUTCH
20	MAY W10325894
21	ROTOR, MOTOR
22	SCREW
23	SCREW
24	HOOD, DUAL PUMP
25	MAY W10297450
26	SCREW, DISPENSER HOUSING MOUNTING
27	MAY W10567155
28	HARNESS SHIELD – MOTOR
29	WASHER, THRUST
30	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES SUSPENSION BUSHINGS AND SUSPENSION BALLS)
