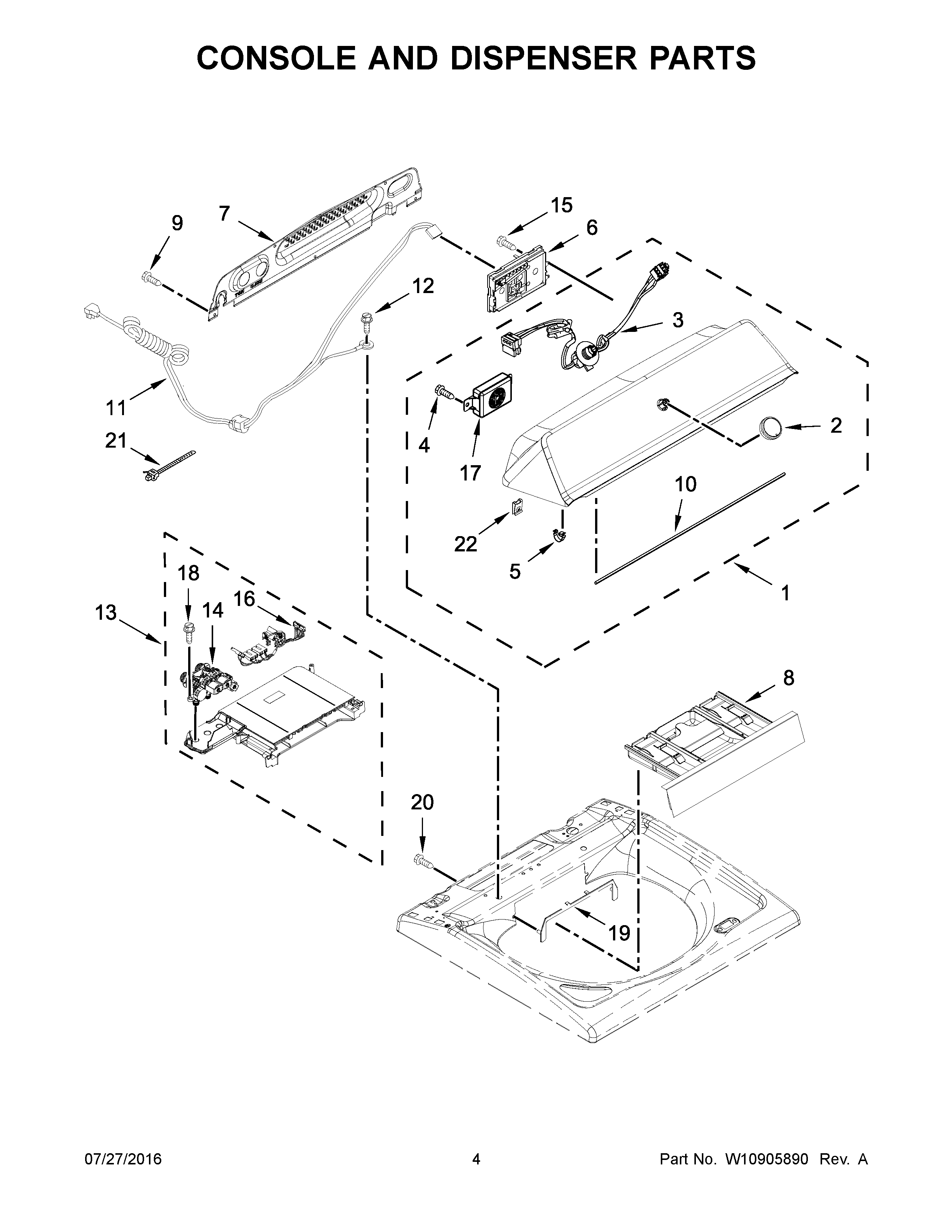

MVWB855DW1 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1MAY W10650405
1ACONSOLE (CHROME SHADOW)
2ASSEMBLY, CONTROL KNOB (CHROME)
3HARNESS, UI
4MAY 9740849
5MAY 8312709
6MAY W10858074
7PANEL, CONSOLE REAR COVER
8AASSEMBLY, DISPENSER DRAWER (CHROME SHADOW)
8ASSEMBLY, DISPENSER DRAWER (WHITE)
9MAY 1157158
10SEAL, CONSOLE
11CORD, POWER
12Screw, 10-32 x 5/8
13ASSEMBLY, HOUSING
14VALVE, WATER INLET
15SCREW
16HARNESS, VALVE
17ASSEMBLY, SPEAKER
18MAY 97787
19AASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
19ASSEMBLY, DISPENSER BEZEL (WHITE)
20SCREW, DISPENSER HOUSING MOUNTING
21MAY W10298887
22NUT, "U"
