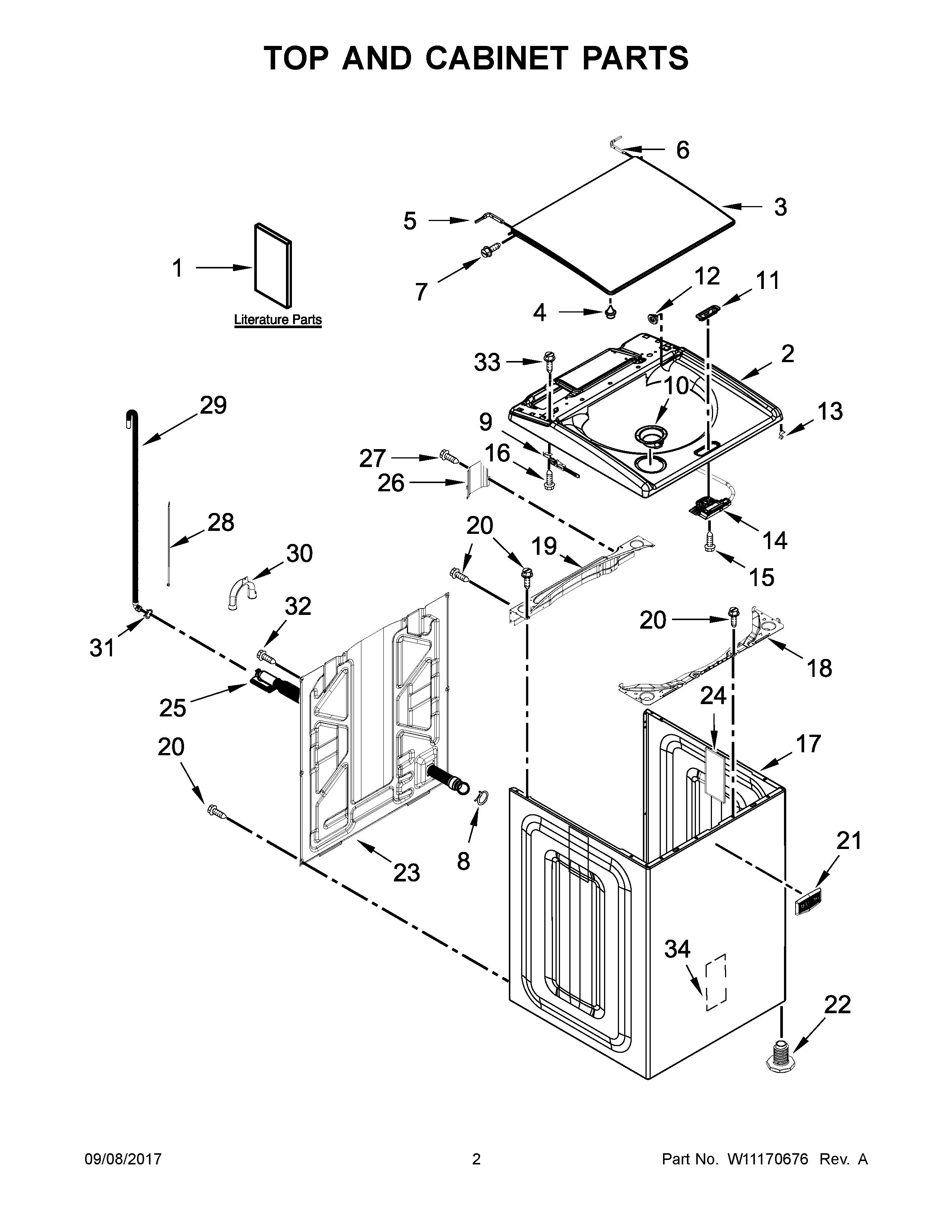

MVWB855DW3 02 – TOP AND CABINET PARTS

Products

Position	Product
1A	MAY W11040359
1B	TECH SHEET
1	INSTRUCTIONS, INSTALLATION
1C	MAY W10911978
1D	QUICK START GUIDE
1E	DRAIN PAN INSTRUCTIONS
2A	TOP (CHROME SHADOW)
2	TOP (WHITE)
3	MAY W10843975
4	BUMPER, LID
5	HINGE, WIRE (LEFT)
6	HINGE, WIRE (RIGHT)
7	SCREW
8	MAY W10142630
9	HINGE, LID (LEFT)
9A	HINGE, LID (RIGHT)
10	DISPENSER, BLEACH (WHITE)
10A	DISPENSER, BLEACH (CHROME SHADOW)
11A	BEZEL, LID LOCK (CHROME SHADOW)
11	BEZEL, LID LOCK (WHITE)
12A	SPACER, LID HINGE (CHROME SHADOW)
12	SPACER, LID HINGE (WHITE)
13	Clip, Wire (4)
14	ASSEMBLY, LID LOCK (WHITE)
14A	ASSEMBLY, LID LOCK (CHROME SHADOW)
15	SCREW
16	Screw
17	CABINET (WHITE)
17A	CABINET (CHROME SHADOW)
18	BRACE, CABINET TOP – FRONT (WHITE)
18A	BRACE, CABINET TOP – FRONT (CHROME SHADOW)
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	BADGE
22	FOOT ASSEMBLY, LEVELING
23	PANEL, REAR
24	MAY 8564458
25	HOSE, INTERNAL DRAIN
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
32	SCREW
33	SCREW
34	ABSORBER, IMPACT
