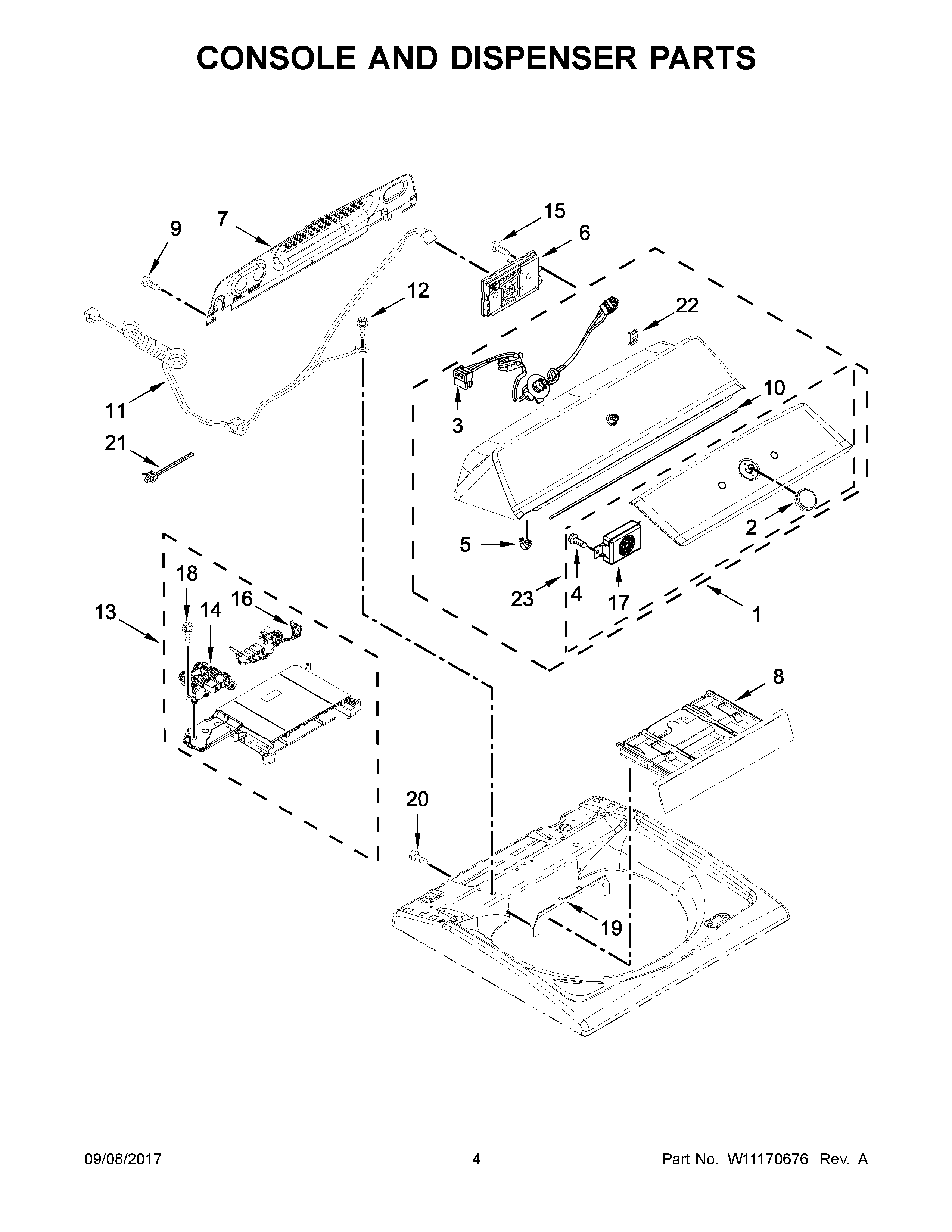

MVWB855DW3 03 – CONSOLE AND DISPENSER PARTS

MVWB855DW3 03 – CONSOLE AND DISPENSER PARTS

Written by

in

MVWB855DW3 03 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1AMAY W11035010
1MAY W11035011
2ASSEMBLY, CONTROL KNOB (CHROME)
3HARNESS, UI
4MAY 9740849
5MAY 8312709
6MAY W11105151
7PANEL, CONSOLE REAR COVER
8AASSEMBLY, DISPENSER DRAWER (CHROME SHADOW)
8ASSEMBLY, DISPENSER DRAWER (WHITE)
9MAY 1157158
10SEAL, CONSOLE
11CORD, POWER
12Screw, 10-32 x 5/8
13ASSEMBLY, HOUSING
14VALVE, WATER INLET
15SCREW
16HARNESS, VALVE
17ASSEMBLY, SPEAKER
18MAY 97787
19ASSEMBLY, DISPENSER BEZEL (WHITE)
19AASSEMBLY, DISPENSER BEZEL (CHROME SHADOW)
20SCREW, DISPENSER HOUSING MOUNTING
21MAY W10298887
22NUT, "U"
23MAY W11035069
