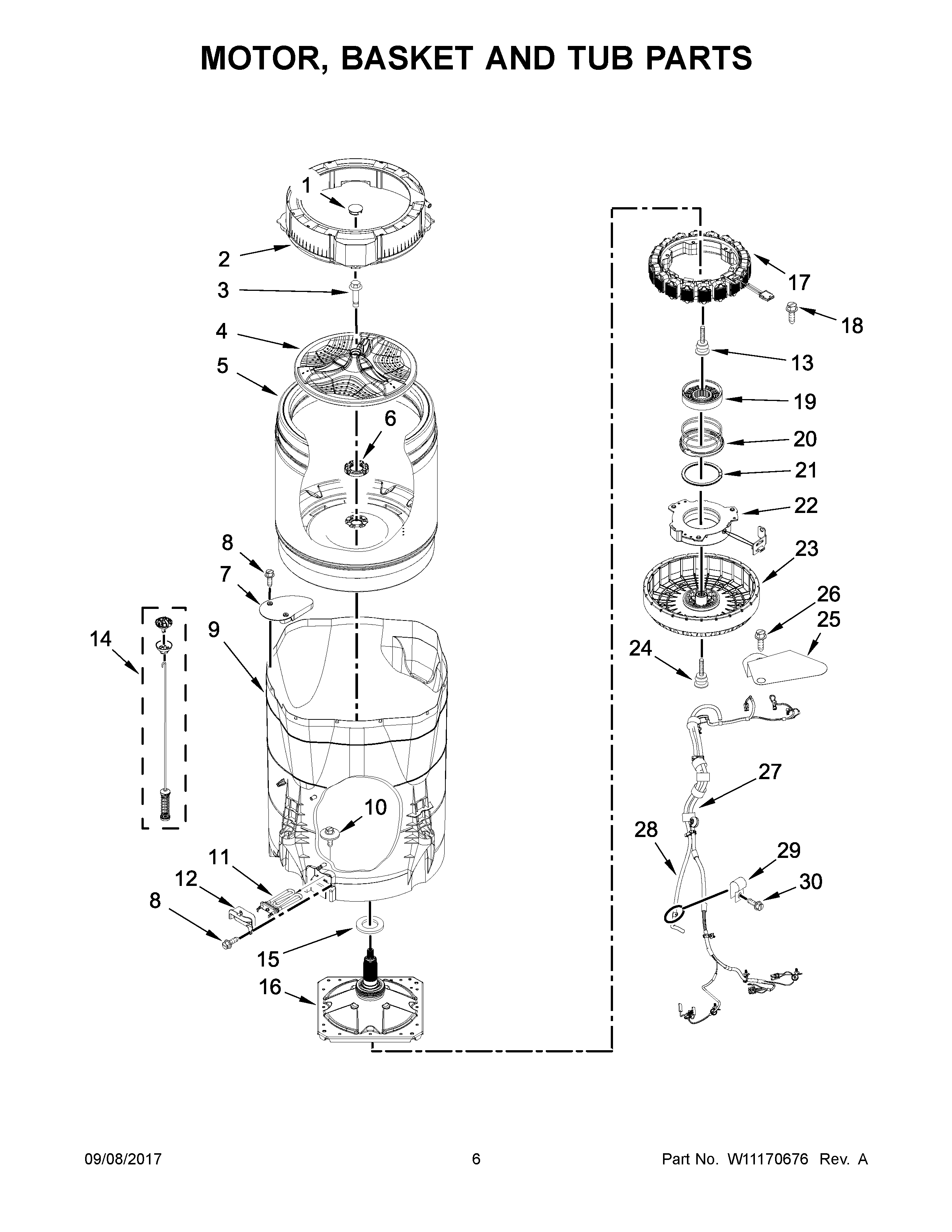

MVWB855DW3 04 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	CAP, IMPELLER
2	TUB RING
3	SCREW
4	IMPELLER (WASHPLATE)
5	BASKET ASSEMBLY
6	NUT, SPIN TUBE
7	HOOD, DUAL PUMP
8	Screw
9	TUB
10	SCREW
11	MAY W10325894
12	MAY W10297450
13	SCREW
14	MAY W11033601
15	WASHER, THRUST
16	ASSEMBLY, DRIVE
17	STATOR, MOTOR
18	MAY W10567155
19	SLIDER
20	ASSEMBLY, SPRING
21	RING, SNAP
22	ASSEMBLY, CLUTCH
23	ROTOR, MOTOR
24	SCREW
25	HARNESS SHIELD – MOTOR
26	SCREW,8-18 X 3/8
27	HARNESS, LOWER
28	HOSE PRESSURE SWITCH
29	CLAMP, CABLE
30	SCREW
