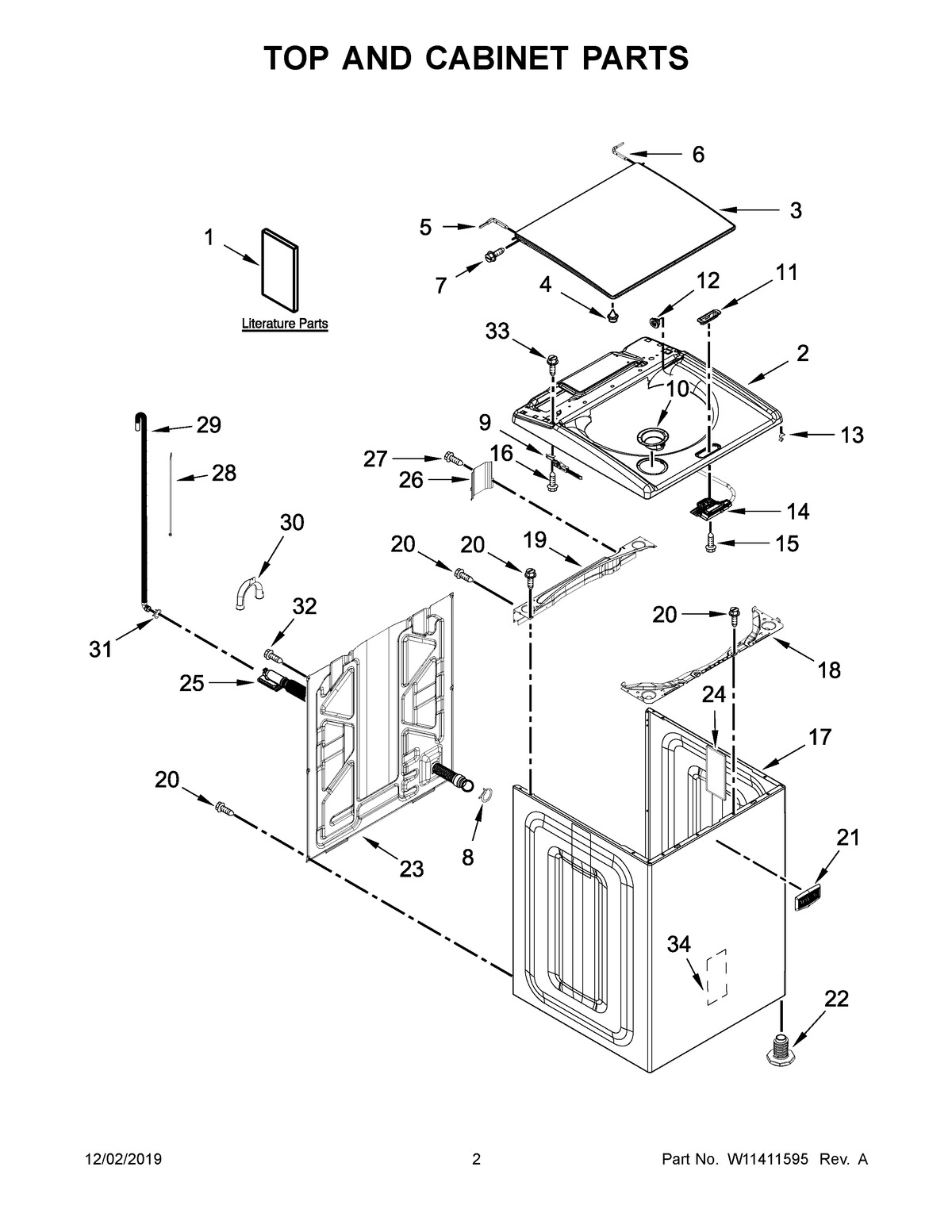

MVWB865GC1 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	MAY W11360575
1	INSTALLATION INSTRUCTIONS
1C	MAY W11101069
1A	MAY W11099670
2	TOP (CHROME SHADOW)
3	ASSEMBLY, LID (GLASS) (CHROME SHADOW)
4	BUMPER, LID
5	HINGE, WIRE (LEFT)
6	HINGE, WIRE (RIGHT)
7	SCREW
8	MAY W10142630
9	HINGE, LID (LEFT)
9A	HINGE, LID (RIGHT)
10	BEZEL, BLEACH DISPENSER (CHROME SHADOW)
11	BEZEL, LID LOCK (CHROME SHADOW)
12	SPACER, LID HINGE (CHROME SHADOW)
13	Clip, Wire (4)
14	ASSEMBLY, LID LOCK (CHROME SHADOW)
15	SCREW
16	Screw
17	CABINET (CHROME SHADOW)
18	BRACE, CABINET TOP – FRONT (CHROME SHADOW)
19	BRACE, CABINET TOP – REAR
20	SCREW
21	BADGE
22	FOOT ASSEMBLY, LEVELING
23	PANEL, REAR
24	MAY 8564458
25	HOSE, INTERNAL DRAIN
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
32	SCREW
33	SCREW
34	ABSORBER, IMPACT
