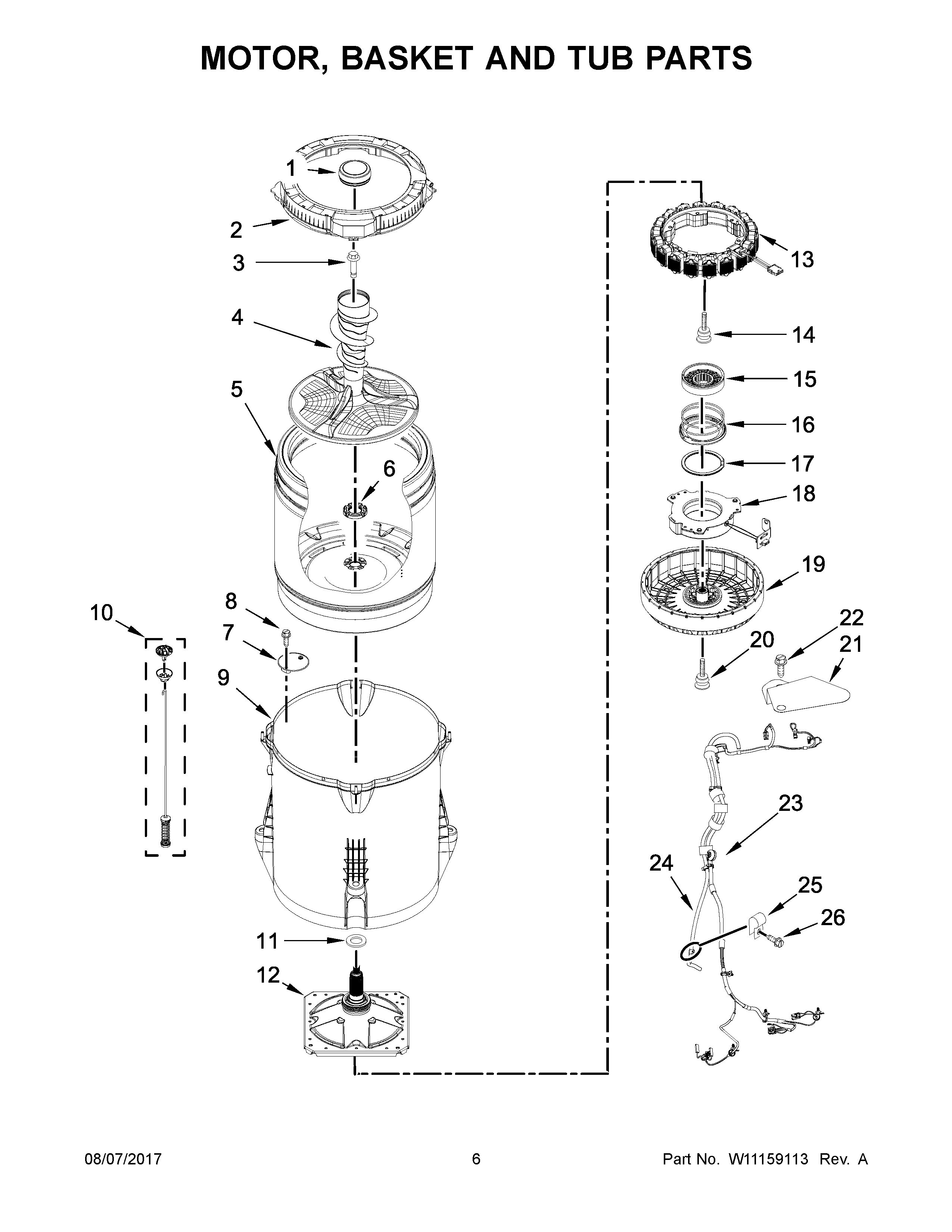

MVWB865GW0 04 – MOTOR, BASKET AND TUB PARTS

MVWB865GW0 04 – MOTOR, BASKET AND TUB PARTS

Written by

in

MVWB865GW0 04 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY W11111466
2	TUB RING
3	SCREW
4	AGITATOR (COMPLETE)
5	BASKET ASSEMBLY
6	NUT, SPIN TUBE
7	MAY W10215093
8	Screw
9	TUB
10	MAY W11033601
11	WASHER, THRUST
12	ASSEMBLY, DRIVE
13	STATOR, MOTOR
14	SCREW
15	SLIDER
16	ASSEMBLY, SPRING
17	RING, SNAP
18	ASSEMBLY, CLUTCH
19	ROTOR, MOTOR
20	SCREW
21	HARNESS SHIELD – MOTOR
22	SCREW,8-18 X 3/8
23	HARNESS, LOWER
24	HOSE PRESSURE SWITCH
25	CLAMP, CABLE
26	SCREW
