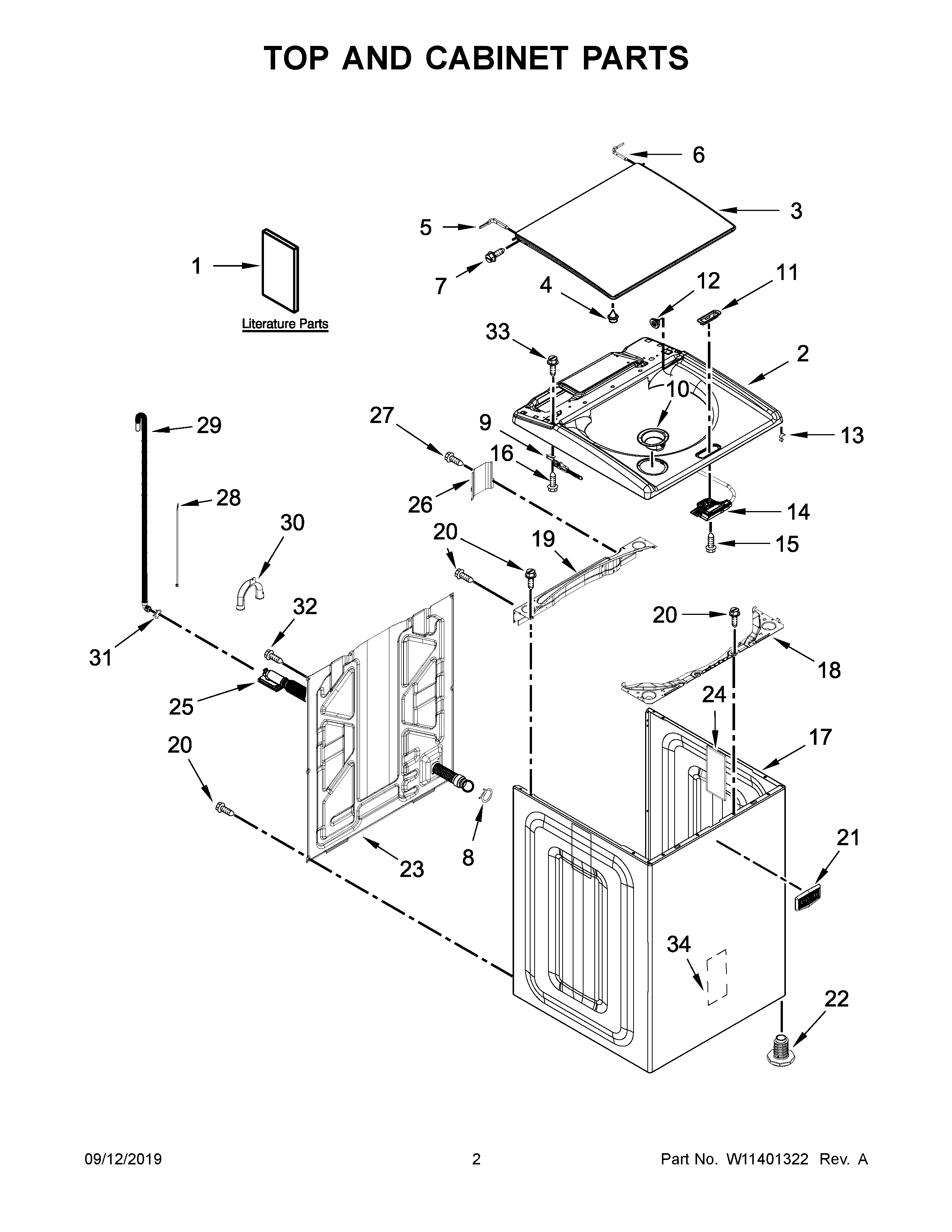

MVWB865GW1 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CMAY W11253568
1INSTALLATION INSTRUCTIONS
1DMAY W11101069
1AMAY W11099670
1EDRAIN PAN INSTRUCTIONS
1BTECH SHEET
2TOP (WHITE)
3ASSEMBLY, LID (GLASS) (WHITE)
4BUMPER, LID
5HINGE, WIRE (LEFT)
6HINGE, WIRE (RIGHT)
7SCREW
8MAY W10142630
9HINGE, LID (LEFT)
9AHINGE, LID (RIGHT)
10DISPENSER, BLEACH (WHITE)
11BEZEL, LID LOCK (WHITE)
12SPACER, LID HINGE (WHITE)
13Clip, Wire (4)
14ASSEMBLY, LID LOCK (WHITE)
15SCREW
16Screw
17CABINET (WHITE)
18CHANNEL, TOP FRONT (WHITE)
19BRACE, CABINET TOP – REAR
20SCREW
21BADGE
22FOOT ASSEMBLY, LEVELING
23PANEL, REAR
24MAY 8564458
25HOSE, INTERNAL DRAIN
26MAY W10676061
27Screw, 10-32 x 5/8
28TIE, CABLE
29HOSE, OUTER DRAIN ASSEMBLY
30MAY W10280024
31MAY 356138
32SCREW
33SCREW
34ABSORBER, IMPACT
