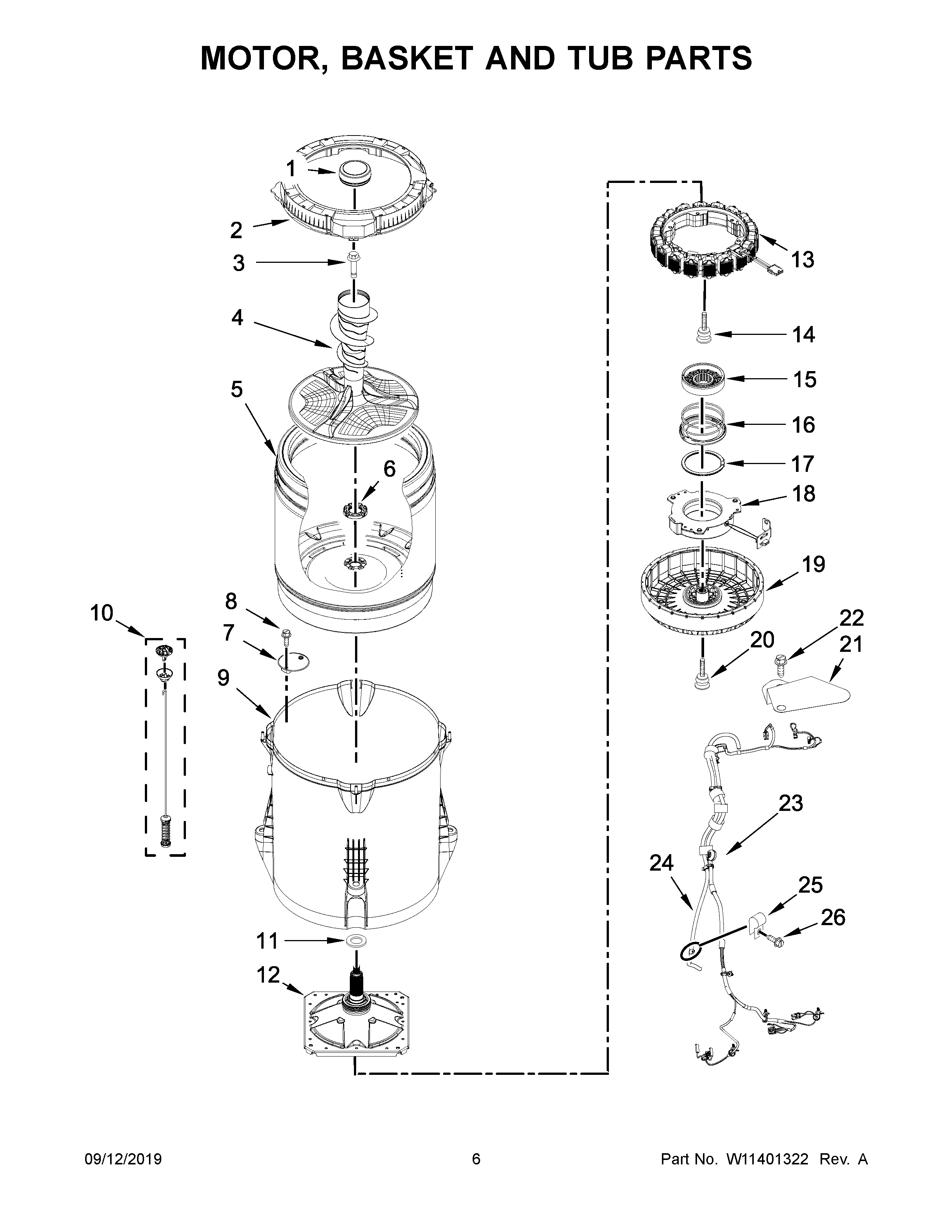

MVWB865GW1 04 – MOTOR, BASKET AND TUB PARTSadmin2025-04-26T13:07:34+00:00MVWB865GW1 04 – MOTOR, BASKET AND TUB PARTS
Products
| Position | Product |
|---|
| 1 | MAY W11111466 |
| 2 | TUB RING |
| 3 | SCREW |
| 4 | AGITATOR (COMPLETE) |
| 5 | BASKET ASSEMBLY |
| 6 | NUT, SPIN TUBE |
| 7 | FILTER, DRAIN PUMP |
| 8 | Screw |
| 9 | TUB |
| 10 | MAY W11033601 |
| 11 | WASHER, THRUST |
| 12 | ASSEMBLY, DRIVE |
| 13 | STATOR, MOTOR |
| 14 | SCREW |
| 15 | SLIDER |
| 16 | ASSEMBLY, SPRING |
| 17 | RING, SNAP |
| 18 | ASSEMBLY, CLUTCH |
| 19 | ROTOR, MOTOR |
| 20 | SCREW |
| 21 | HARNESS SHIELD - MOTOR |
| 22 | SCREW,8-18 X 3/8 |
| 23 | HARNESS, LOWER |
| 24 | HOSE PRESSURE SWITCH |
| 25 | CLAMP, CABLE |
| 26 | SCREW |
